The TerminalStrip class This class hold all the datas and configurations of a terminal strip (but the not the visual aspect). A terminal strip have some informations (name comment etc...) and is composed by one or several PhysicalTerminal. More...

#include <terminalstrip.h>

Inherits QObject.

Collaboration diagram for TerminalStrip:

Signals
void	orderChanged ()

void	bridgeChanged ()

void	bridgeColorChanged (QSharedPointer< TerminalStripBridge > bridge)

Public Member Functions
	TerminalStrip (QETProject *project)
	TerminalStrip::TerminalStrip.

	TerminalStrip (const QString &installation, const QString &location, const QString &name, QETProject *project)
	TerminalStrip::TerminalStrip.

void	setInstallation (const QString &installation)

QString	installation () const

void	setLocation (const QString &location)

QString	location () const

void	setName (const QString &name)

QString	name () const

void	setComment (const QString &comment)

QString	comment () const

void	setDescription (const QString &description)

QString	description () const

QUuid	uuid () const

QETProject *	project () const
	TerminalStrip::project.

TerminalStripData	data () const
	TerminalStrip::data.

void	setData (const TerminalStripData &data)
	TerminalStrip::setData Set the internal data of this strip to data. the uuid of the new data is set to the uuid of the previous data to keep the uuid of the terminal strip unchanged.

bool	addTerminal (QSharedPointer< RealTerminal > real_t)

void	addTerminals (QVector< QSharedPointer< RealTerminal > > real_t_vector)
	TerminalStrip::addTerminals Add terminal in real_t_vector to this terminal.

void	addAndGroupTerminals (const QVector< QVector< QSharedPointer< RealTerminal > > > &real_t_vector)
	TerminalStrip::addAndGroupTerminals For each real terminals of second vector, add it to terminal strip and group them together.

bool	removeTerminal (QSharedPointer< RealTerminal > real_t)

void	removeTerminals (QVector< QSharedPointer< RealTerminal > > real_t_vector)
	TerminalStrip::removeTerminals Remove terminals in real_t_vector from this terminal strip.

bool	addTerminal (Element *terminal)
	TerminalStrip::addTerminal Add terminal to this terminal strip.

bool	removeTerminal (Element *terminal)
	TerminalStrip::removeTerminal Remove terminal from this terminal strip.

bool	addTerminal (QSharedPointer< PhysicalTerminal > phy_t)
	TerminalStrip::addTerminal Add phy_t in this terminal strip.

void	addTerminals (QVector< QSharedPointer< PhysicalTerminal > > phy_t_vector)

bool	removeTerminal (QSharedPointer< PhysicalTerminal > phy_t)
	TerminalStrip::removeTerminal Remove phy_t from this terminal strip.

void	removeTerminals (QVector< QSharedPointer< PhysicalTerminal > > phy_t_vector)

int	pos (const QSharedPointer< PhysicalTerminal > &terminal) const
	TerminalStrip::pos.

int	physicalTerminalCount () const
	TerminalStrip::physicalTerminalCount.

QSharedPointer< PhysicalTerminal >	physicalTerminal (int index) const
	TerminalStrip::physicalTerminalData.

QSharedPointer< PhysicalTerminal >	physicalTerminal (const QUuid &uuid) const
	TerminalStrip::physicalTerminal.

QVector< QSharedPointer< PhysicalTerminal > >	physicalTerminal () const
	TerminalStrip::physicalTerminal.

QSharedPointer< RealTerminal >	realTerminalForUuid (const QUuid &uuid) const
	TerminalStrip::realTerminalForUuid.

QVector< QSharedPointer< RealTerminal > >	realTerminals () const
	TerminalStrip::realTerminals.

bool	setOrderTo (const QVector< QSharedPointer< PhysicalTerminal > > &sorted_vector)
	TerminalStrip::setSortedTo Sort the physical terminal owned by this strip in the same order as `sorted_vector`. `sorted_vector` must contain exactly the same physical terminal as this strip else this function do nothing.

bool	groupTerminals (const QSharedPointer< PhysicalTerminal > &receiver_terminal, const QVector< QSharedPointer< RealTerminal > > &added_terminals)
	TerminalStrip::groupTerminal Add `added_terminal` to `receiver_terminal`. At the end of this method, if there is physical terminal without any real terminal, they will be removed and `receiver_terminal` become a multi-level terminal. Emit the signal orderChanged();.

void	unGroupTerminals (const QVector< QSharedPointer< RealTerminal > > &terminals_to_ungroup)
	TerminalStrip::unGroupTerminals Ungroup all real terminals of `terminals_to_ungroup`.

bool	setLevel (const QSharedPointer< RealTerminal > &real_terminal, int level)
	TerminalStrip::setLevel.

bool	isBridgeable (const QVector< QSharedPointer< RealTerminal > > &real_terminals) const
	TerminalStrip::isBridgeable Check if all realTerminal in real_terminals are bridgeable together. To be bridgeable, each real terminal must belong to this terminal strip be at the same level, be consecutive and not belong to the same physicalTerminal and at least one terminal must be not bridged.

bool	isBridgeable (QSharedPointer< TerminalStripBridge > bridge, const QVector< QSharedPointer< RealTerminal > > &real_terminals) const
	TerminalStrip::isBridgeable Check if all RealTerminal of real_terminals can be bridged to the bridge bridge.

bool	setBridge (const QVector< QSharedPointer< RealTerminal > > &real_terminals)
	TerminalStrip::setBridge Set a bridge between all real terminal of real_terminals.

bool	setBridge (const QSharedPointer< TerminalStripBridge > &bridge, const QVector< QSharedPointer< RealTerminal > > &real_terminals)
	TerminalStrip::setBridge Bridge the RealTerminal of real_terminals_data to bridge.

void	unBridge (const QVector< QSharedPointer< RealTerminal > > &real_terminals)
	TerminalStrip::unBridge Unbridge all real terminals of real_terminals.

bool	canUnBridge (const QVector< QSharedPointer< RealTerminal > > &real_terminals) const
	TerminalStrip::canUnBridge.

QSharedPointer< TerminalStripBridge >	isBridged (const QSharedPointer< RealTerminal > real_terminal) const
	TerminalStrip::isBridged Check if real_terminal is bridged.

QSharedPointer< TerminalStripBridge >	bridgeFor (const QVector< QSharedPointer< RealTerminal > > &terminal_vector) const
	TerminalStrip::bridgeFor Return the bridge where at least one terminal of terminal_vector belong. If several terminals are bridged but not to the same bridge return a TerminalStripBridge with 0 real_terminals_uuid_vector.

QSharedPointer< RealTerminal >	previousTerminalInLevel (const QSharedPointer< RealTerminal > &real_terminal) const
	TerminalStrip::previousTerminalInLevel.

QSharedPointer< RealTerminal >	nextTerminalInLevel (const QSharedPointer< RealTerminal > &real_terminal) const
	TerminalStrip::nextTerminalInLevel.

QSharedPointer< RealTerminal >	previousRealTerminal (const QSharedPointer< RealTerminal > &real_terminal) const

QSharedPointer< RealTerminal >	nextRealTerminal (const QSharedPointer< RealTerminal > &real_terminal) const

QDomElement	toXml (QDomDocument &parent_document)
	TerminalStrip::toXml.

bool	fromXml (QDomElement &xml_element)
	TerminalStrip::fromXml.

Static Public Member Functions
static QString	xmlTagName ()

Private Attributes
TerminalStripData	m_data

QPointer< QETProject >	m_project

QVector< QSharedPointer< PhysicalTerminal > >	m_physical_terminals

QVector< QSharedPointer< TerminalStripBridge > >	m_bridge

Friends
class	TerminalStripModel

class	RealTerminalData

Detailed Description

The TerminalStrip class This class hold all the datas and configurations of a terminal strip (but the not the visual aspect). A terminal strip have some informations (name comment etc...) and is composed by one or several PhysicalTerminal.

Constructor & Destructor Documentation

◆ TerminalStrip() [1/2]

TerminalStrip::TerminalStrip ( QETProject * project )

TerminalStrip::TerminalStrip.

Parameters

project

◆ TerminalStrip() [2/2]

TerminalStrip::TerminalStrip	(	const QString &	installation,
		const QString &	location,
		const QString &	name,
		QETProject *	project
	)

TerminalStrip::TerminalStrip.

Parameters

installation
location
name
project

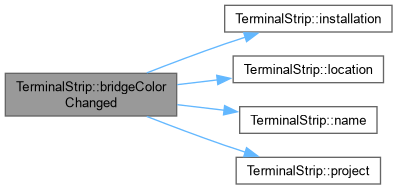

Here is the call graph for this function:

Member Function Documentation

◆ addAndGroupTerminals()

void TerminalStrip::addAndGroupTerminals ( const QVector< QVector< QSharedPointer< RealTerminal > > > & real_t_vector )

TerminalStrip::addAndGroupTerminals For each real terminals of second vector, add it to terminal strip and group them together.

Parameters

real_t_vector

Here is the call graph for this function:

◆ addTerminal() [1/3]

bool TerminalStrip::addTerminal ( Element * terminal )

TerminalStrip::addTerminal Add terminal to this terminal strip.

Parameters

terminal

Returns: true if the terminal was successfully added. Return false, if terminal already exist. Return false, if terminal is not a terminal element.

Here is the call graph for this function:

◆ addTerminal() [2/3]

bool TerminalStrip::addTerminal ( QSharedPointer< PhysicalTerminal > phy_t )

TerminalStrip::addTerminal Add phy_t in this terminal strip.

Parameters

phy_t

Returns: true if successfully added. A terminal can't be added is already belong to another terminal strip.

Here is the call graph for this function:

◆ addTerminal() [3/3]

bool TerminalStrip::addTerminal ( QSharedPointer< RealTerminal > real_t )

Here is the call graph for this function:

◆ addTerminals() [1/2]

void TerminalStrip::addTerminals ( QVector< QSharedPointer< PhysicalTerminal > > phy_t_vector )

Here is the call graph for this function:

◆ addTerminals() [2/2]

void TerminalStrip::addTerminals ( QVector< QSharedPointer< RealTerminal > > real_t_vector )

TerminalStrip::addTerminals Add terminal in real_t_vector to this terminal.

Parameters

real_t_vector

Here is the call graph for this function:

◆ bridgeChanged

void TerminalStrip::bridgeChanged ( )

signal

Here is the caller graph for this function:

◆ bridgeColorChanged

void TerminalStrip::bridgeColorChanged ( QSharedPointer< TerminalStripBridge > bridge )

signal

Here is the caller graph for this function:

◆ bridgeFor()

QSharedPointer< TerminalStripBridge > TerminalStrip::bridgeFor ( const QVector< QSharedPointer< RealTerminal > > & terminal_vector ) const

TerminalStrip::bridgeFor Return the bridge where at least one terminal of terminal_vector belong. If several terminals are bridged but not to the same bridge return a TerminalStripBridge with 0 real_terminals_uuid_vector.

See also: TerminalStripBridge

Parameters

terminal_vector

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canUnBridge()

bool TerminalStrip::canUnBridge ( const QVector< QSharedPointer< RealTerminal > > & real_terminals ) const

TerminalStrip::canUnBridge.

Parameters

m_real_terminals

Returns: True if all terminals of real_terminals can be unbridged. For this method return True, all terminals must be bridged together, be consecutive and in one or the both extremities of the bridge.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ comment()

QString TerminalStrip::comment ( ) const

inline

Here is the caller graph for this function:

◆ data()

TerminalStripData TerminalStrip::data ( ) const

TerminalStrip::data.

Returns: The internal data of this strip

Here is the caller graph for this function:

◆ description()

QString TerminalStrip::description ( ) const

inline

Here is the caller graph for this function:

◆ fromXml()

bool TerminalStrip::fromXml ( QDomElement & xml_element )

TerminalStrip::fromXml.

Parameters

xml_element

Returns: Set up this terminal strip from the xml description xml_element

Here is the call graph for this function:

◆ groupTerminals()

bool TerminalStrip::groupTerminals	(	const QSharedPointer< PhysicalTerminal > &	receiver_terminal,
		const QVector< QSharedPointer< RealTerminal > > &	added_terminals
	)

TerminalStrip::groupTerminal Add added_terminal to receiver_terminal. At the end of this method, if there is physical terminal without any real terminal, they will be removed and receiver_terminal become a multi-level terminal. Emit the signal orderChanged();.

Parameters

added_terminal
receiver_terminal

Returns: true if success

Here is the call graph for this function:

◆ installation()

QString TerminalStrip::installation ( ) const

inline

Here is the caller graph for this function:

◆ isBridgeable() [1/2]

bool TerminalStrip::isBridgeable ( const QVector< QSharedPointer< RealTerminal > > & real_terminals ) const

TerminalStrip::isBridgeable Check if all realTerminal in real_terminals are bridgeable together. To be bridgeable, each real terminal must belong to this terminal strip be at the same level, be consecutive and not belong to the same physicalTerminal and at least one terminal must be not bridged.

Parameters

real_terminals : a vector of realterminal

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isBridgeable() [2/2]

bool TerminalStrip::isBridgeable	(	QSharedPointer< TerminalStripBridge >	bridge,
		const QVector< QSharedPointer< RealTerminal > > &	real_terminals
	)		const

TerminalStrip::isBridgeable Check if all RealTerminal of real_terminals can be bridged to the bridge bridge.

Parameters

real_terminals

Returns: true if can be bridged.

Here is the call graph for this function:

◆ isBridged()

QSharedPointer< TerminalStripBridge > TerminalStrip::isBridged ( const QSharedPointer< RealTerminal > real_terminal ) const

TerminalStrip::isBridged Check if real_terminal is bridged.

Parameters

real_terminal

Returns: a pointer of TerminalStripBridge if bridget or a null QSharedPointer.

Here is the caller graph for this function:

◆ location()

QString TerminalStrip::location ( ) const

inline

Here is the caller graph for this function:

◆ name()

QString TerminalStrip::name ( ) const

inline

Here is the caller graph for this function:

◆ nextRealTerminal()

QSharedPointer< RealTerminal > TerminalStrip::nextRealTerminal ( const QSharedPointer< RealTerminal > & real_terminal ) const

Here is the call graph for this function:

◆ nextTerminalInLevel()

QSharedPointer< RealTerminal > TerminalStrip::nextTerminalInLevel ( const QSharedPointer< RealTerminal > & real_terminal ) const

TerminalStrip::nextTerminalInLevel.

Parameters

real_terminal

Returns: The next real terminal at the same level of real_t or a null RealTerminalData if there not a next real terminal

Here is the caller graph for this function:

◆ orderChanged

void TerminalStrip::orderChanged ( )

signal

Here is the caller graph for this function:

◆ physicalTerminal() [1/3]

QVector< QSharedPointer< PhysicalTerminal > > TerminalStrip::physicalTerminal ( ) const

TerminalStrip::physicalTerminal.

Returns: A vector of all physical terminal owned by this terminal strip. The order of the vector is the same as the order of the terminal in the strip

◆ physicalTerminal() [2/3]

QSharedPointer< PhysicalTerminal > TerminalStrip::physicalTerminal ( const QUuid & uuid ) const

TerminalStrip::physicalTerminal.

Parameters

uuid

Returns: the the physicalTerminal with the uuid uuid or a empty QSharedPointer if empty.

Here is the call graph for this function:

◆ physicalTerminal() [3/3]

QSharedPointer< PhysicalTerminal > TerminalStrip::physicalTerminal ( int index ) const

TerminalStrip::physicalTerminalData.

Parameters

index

Returns: The data of the physical terminal at index index returned QSharedPointer can be null

Here is the caller graph for this function:

◆ physicalTerminalCount()

int TerminalStrip::physicalTerminalCount ( ) const

TerminalStrip::physicalTerminalCount.

Returns: the number of physical terminal. A physical terminal is the representation of a real electrical terminal. Notice that a physical terminal can have level (like in real life)

Here is the caller graph for this function:

◆ pos()

int TerminalStrip::pos ( const QSharedPointer< PhysicalTerminal > & terminal ) const

TerminalStrip::pos.

Parameters

terminal

Returns: the position of the physical terminal or -1 if not found

◆ previousRealTerminal()

QSharedPointer< RealTerminal > TerminalStrip::previousRealTerminal ( const QSharedPointer< RealTerminal > & real_terminal ) const

Here is the call graph for this function:

◆ previousTerminalInLevel()

QSharedPointer< RealTerminal > TerminalStrip::previousTerminalInLevel ( const QSharedPointer< RealTerminal > & real_terminal ) const

TerminalStrip::previousTerminalInLevel.

Parameters

real_terminal

Returns: The previous real terminal at the samne level of real_t or a null RealTerminalData if there not a previous real terminal

Here is the caller graph for this function:

◆ project()

QETProject * TerminalStrip::project ( ) const

TerminalStrip::project.

Returns: the project of this terminal strip or nullptr

Here is the caller graph for this function:

◆ realTerminalForUuid()

QSharedPointer< RealTerminal > TerminalStrip::realTerminalForUuid ( const QUuid & uuid ) const

TerminalStrip::realTerminalForUuid.

Parameters

uuid

Returns: the real terminal with uuid uuid or a null QSharedPointer if not found

Here is the call graph for this function:

◆ realTerminals()

QVector< QSharedPointer< RealTerminal > > TerminalStrip::realTerminals ( ) const

TerminalStrip::realTerminals.

Returns: All real terminal owned by this strip

Here is the caller graph for this function:

◆ removeTerminal() [1/3]

bool TerminalStrip::removeTerminal ( Element * terminal )

TerminalStrip::removeTerminal Remove terminal from this terminal strip.

Parameters

terminal

Returns: true if terminal was successfully removed

Here is the call graph for this function:

◆ removeTerminal() [2/3]

bool TerminalStrip::removeTerminal ( QSharedPointer< PhysicalTerminal > phy_t )

TerminalStrip::removeTerminal Remove phy_t from this terminal strip.

Parameters

phy_t

Returns: true if successfully removed. Return false if can't be removed because not owned by this strip

Here is the call graph for this function:

◆ removeTerminal() [3/3]

bool TerminalStrip::removeTerminal ( QSharedPointer< RealTerminal > real_t )

Here is the call graph for this function:

◆ removeTerminals() [1/2]

void TerminalStrip::removeTerminals ( QVector< QSharedPointer< PhysicalTerminal > > phy_t_vector )

Here is the call graph for this function:

◆ removeTerminals() [2/2]

void TerminalStrip::removeTerminals ( QVector< QSharedPointer< RealTerminal > > real_t_vector )

TerminalStrip::removeTerminals Remove terminals in real_t_vector from this terminal strip.

Parameters

real_t_vector

Here is the call graph for this function:

◆ setBridge() [1/2]

bool TerminalStrip::setBridge	(	const QSharedPointer< TerminalStripBridge > &	bridge,
		const QVector< QSharedPointer< RealTerminal > > &	real_terminals
	)

TerminalStrip::setBridge Bridge the RealTerminal of real_terminals_data to bridge.

Parameters

bridge
real_terminals_data

Returns: true if all RealTerminal was successfully bridged

Here is the call graph for this function:

◆ setBridge() [2/2]

bool TerminalStrip::setBridge ( const QVector< QSharedPointer< RealTerminal > > & real_terminals )

TerminalStrip::setBridge Set a bridge between all real terminal of real_terminals.

See also: TerminalStrip::isBridgeable

Returns: true if bridge was successfully created

Here is the call graph for this function:

◆ setComment()

void TerminalStrip::setComment ( const QString & comment )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setData()

void TerminalStrip::setData ( const TerminalStripData & data )

TerminalStrip::setData Set the internal data of this strip to data. the uuid of the new data is set to the uuid of the previous data to keep the uuid of the terminal strip unchanged.

Parameters

data

Here is the call graph for this function:

◆ setDescription()

void TerminalStrip::setDescription ( const QString & description )

Here is the call graph for this function:

◆ setInstallation()

void TerminalStrip::setInstallation ( const QString & installation )

Here is the call graph for this function:

◆ setLevel()

bool TerminalStrip::setLevel	(	const QSharedPointer< RealTerminal > &	real_terminal,
		int	level
	)

TerminalStrip::setLevel.

Parameters

real_terminal_data
level

Returns

Here is the call graph for this function:

◆ setLocation()

void TerminalStrip::setLocation ( const QString & location )

Here is the call graph for this function:

◆ setName()

void TerminalStrip::setName ( const QString & name )

Here is the call graph for this function:

◆ setOrderTo()

bool TerminalStrip::setOrderTo ( const QVector< QSharedPointer< PhysicalTerminal > > & sorted_vector )

TerminalStrip::setSortedTo Sort the physical terminal owned by this strip in the same order as sorted_vector. sorted_vector must contain exactly the same physical terminal as this strip else this function do nothing.

To avoid any mistake, you should call TerminalStrip::physicalTerminal() sort the returned vector and call this function with sorted vector, then you are sure the vector contain the same values, no more no less.

Parameters

sorted_vector

Returns: true is successfully sorted.

Here is the call graph for this function:

◆ toXml()

QDomElement TerminalStrip::toXml ( QDomDocument & parent_document )

TerminalStrip::toXml.

Parameters

parent_document

Returns

Here is the call graph for this function:

◆ unBridge()

void TerminalStrip::unBridge ( const QVector< QSharedPointer< RealTerminal > > & real_terminals )

TerminalStrip::unBridge Unbridge all real terminals of real_terminals.

See also: TerminalStrip::canUnBridge

Parameters

real_terminals

Here is the call graph for this function:

◆ unGroupTerminals()

void TerminalStrip::unGroupTerminals ( const QVector< QSharedPointer< RealTerminal > > & terminals_to_ungroup )

TerminalStrip::unGroupTerminals Ungroup all real terminals of terminals_to_ungroup.

Parameters

terminals_to_ungroup

Here is the call graph for this function:

◆ uuid()

QUuid TerminalStrip::uuid ( ) const

inline

Here is the caller graph for this function:

◆ xmlTagName()

static QString TerminalStrip::xmlTagName ( )

inlinestatic

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ RealTerminalData

friend class RealTerminalData

friend

◆ TerminalStripModel

friend class TerminalStripModel

friend

Member Data Documentation

◆ m_bridge

QVector<QSharedPointer<TerminalStripBridge> > TerminalStrip::m_bridge

private

◆ m_data

TerminalStripData TerminalStrip::m_data

private

◆ m_physical_terminals

QVector<QSharedPointer<PhysicalTerminal> > TerminalStrip::m_physical_terminals

private

◆ m_project

QPointer<QETProject> TerminalStrip::m_project

private

The documentation for this class was generated from the following files:

sources/TerminalStrip/terminalstrip.h
sources/TerminalStrip/terminalstrip.cpp

Signals

Public Member Functions

Static Public Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ TerminalStrip() [1/2]

◆ TerminalStrip() [2/2]

Member Function Documentation

◆ addAndGroupTerminals()

◆ addTerminal() [1/3]

◆ addTerminal() [2/3]

◆ addTerminal() [3/3]

◆ addTerminals() [1/2]

◆ addTerminals() [2/2]

◆ bridgeChanged

◆ bridgeColorChanged

◆ bridgeFor()

◆ canUnBridge()

◆ comment()

◆ data()

◆ description()

◆ fromXml()

◆ groupTerminals()

◆ installation()

◆ isBridgeable() [1/2]

◆ isBridgeable() [2/2]

◆ isBridged()

◆ location()

◆ name()

◆ nextRealTerminal()

◆ nextTerminalInLevel()

◆ orderChanged

◆ physicalTerminal() [1/3]

◆ physicalTerminal() [2/3]

◆ physicalTerminal() [3/3]

◆ physicalTerminalCount()

◆ pos()

◆ previousRealTerminal()

◆ previousTerminalInLevel()

◆ project()

◆ realTerminalForUuid()

◆ realTerminals()

◆ removeTerminal() [1/3]

◆ removeTerminal() [2/3]

◆ removeTerminal() [3/3]

◆ removeTerminals() [1/2]

◆ removeTerminals() [2/2]

◆ setBridge() [1/2]

◆ setBridge() [2/2]

◆ setComment()

◆ setData()

◆ setDescription()

◆ setInstallation()

◆ setLevel()

◆ setLocation()

◆ setName()

◆ setOrderTo()

◆ toXml()

◆ unBridge()

◆ unGroupTerminals()

◆ uuid()

◆ xmlTagName()

Friends And Related Symbol Documentation

◆ RealTerminalData

◆ TerminalStripModel

Member Data Documentation

◆ m_bridge

◆ m_data

◆ m_physical_terminals

◆ m_project
