XRefProperties Class Reference

The XRefProperties class this class store properties used by XrefItem. More...

#include <xrefproperties.h>

Inheritance diagram for XRefProperties:

Collaboration diagram for XRefProperties:

Public Types
enum	DisplayHas { Cross , Contacts }
enum	SnapTo { Bottom , Label }

Public Member Functions
	XRefProperties ()
	XRefProperties::XRefProperties Default Constructor.
void	toSettings (QSettings &settings, const QString=QString()) const override
	XRefProperties::toSettings Save to settings.
void	fromSettings (const QSettings &settings, const QString=QString()) override
	XRefProperties::fromSettings load from settings.
QDomElement	toXml (QDomDocument &xml_document) const override
	XRefProperties::toXml Save to xml.
bool	fromXml (const QDomElement &xml_element) override
	XRefProperties::fromXml Load from xml.
bool	operator== (const XRefProperties &xrp) const
bool	operator!= (const XRefProperties &xrp) const
void	setShowPowerContac (const bool a)
bool	showPowerContact () const
void	setDisplayHas (const DisplayHas dh)
DisplayHas	displayHas () const
void	setSnapTo (const SnapTo st)
SnapTo	snapTo () const
void	setXrefPos (const Qt::AlignmentFlag xref)
Qt::AlignmentFlag	getXrefPos () const
void	setPrefix (const QString &key, const QString &value)
QString	prefix (const QString &key) const
void	setMasterLabel (const QString master)
QString	masterLabel () const
void	setSlaveLabel (const QString slave)
QString	slaveLabel () const
void	setOffset (const int offset)
int	offset () const
void	setKey (QString &key)
Public Member Functions inherited from PropertiesInterface
	PropertiesInterface ()
	PropertiesInterface::PropertiesInterface.
virtual	~PropertiesInterface ()
	PropertiesInterface::~PropertiesInterface.

Static Public Member Functions
static QHash< QString, XRefProperties >	defaultProperties ()
	XRefProperties::defaultProperties.

Private Attributes
bool	m_show_power_ctc
DisplayHas	m_display
SnapTo	m_snap_to
Qt::AlignmentFlag	m_xref_pos
QHash< QString, QString >	m_prefix
QStringList	m_prefix_keys
QString	m_master_label
QString	m_slave_label
int	m_offset
QString	m_key

Detailed Description

The XRefProperties class this class store properties used by XrefItem.

Member Enumeration Documentation

DisplayHas

enum XRefProperties::DisplayHas

Enumerator
Cross
Contacts

SnapTo

enum XRefProperties::SnapTo

Enumerator
Bottom
Label

Constructor & Destructor Documentation

XRefProperties()

XRefProperties::XRefProperties

(

)

XRefProperties::XRefProperties Default Constructor.

Member Function Documentation

defaultProperties()

QHash< QString, XRefProperties > XRefProperties::defaultProperties ( )

static

XRefProperties::defaultProperties.

Returns

the default properties stored in the setting file For the xref, there are 2 properties. For coil, stored with the string "coil" in the returned QHash. For protection, stored with the string "protection" in the returned QHash.

Here is the call graph for this function:

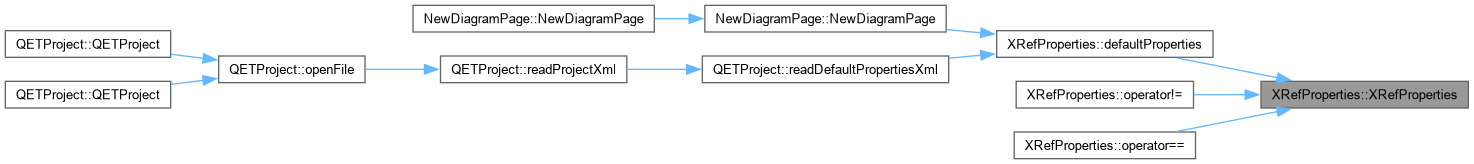

Here is the caller graph for this function:

displayHas()

DisplayHas XRefProperties::displayHas ( ) const

inline

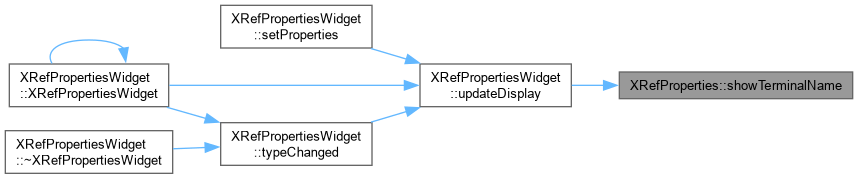

Here is the caller graph for this function:

fromSettings()

void XRefProperties::fromSettings ( const QSettings &  settings, const QString  prefix = QString()  )

overridevirtual

XRefProperties::fromSettings load from settings.

Parameters

settings	QSettings to use
prefix	prefix before properties name

Implements PropertiesInterface.

Here is the call graph for this function:

Here is the caller graph for this function:

fromXml()

bool XRefProperties::fromXml ( const QDomElement &  xml_element )

overridevirtual

XRefProperties::fromXml Load from xml.

Parameters

xml_element

QDomElement to use for load

Implements PropertiesInterface.

Here is the caller graph for this function:

getXrefPos()

Qt::AlignmentFlag XRefProperties::getXrefPos ( ) const

inline

Here is the caller graph for this function:

masterLabel()

QString XRefProperties::masterLabel ( ) const

inline

Here is the caller graph for this function:

offset()

int XRefProperties::offset ( ) const

inline

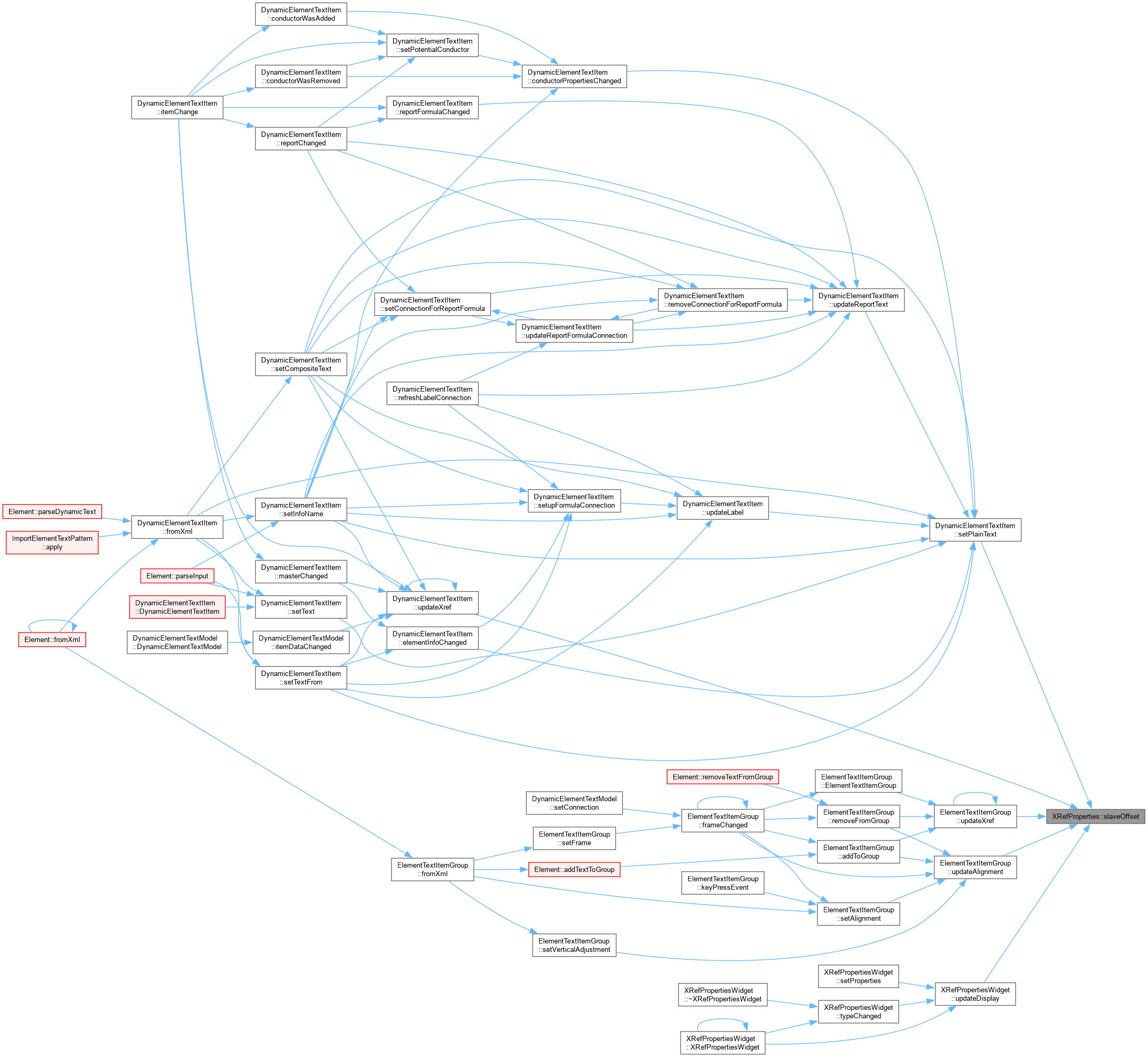

Here is the caller graph for this function:

operator!=()

bool XRefProperties::operator!=

(

const XRefProperties &

xrp

)

const

operator==()

bool XRefProperties::operator==

(

const XRefProperties &

xrp

)

const

prefix()

QString XRefProperties::prefix ( const QString &  key ) const

inline

Here is the caller graph for this function:

setDisplayHas()

void XRefProperties::setDisplayHas ( const DisplayHas  dh )

inline

Here is the caller graph for this function:

setKey()

void XRefProperties::setKey ( QString &  key )

inline

setMasterLabel()

void XRefProperties::setMasterLabel ( const QString  master )

inline

Here is the caller graph for this function:

setOffset()

void XRefProperties::setOffset ( const int  offset )

inline

Here is the call graph for this function:

Here is the caller graph for this function:

setPrefix()

void XRefProperties::setPrefix ( const QString &  key, const QString &  value  )

inline

Here is the caller graph for this function:

setShowPowerContac()

void XRefProperties::setShowPowerContac ( const bool  a )

inline

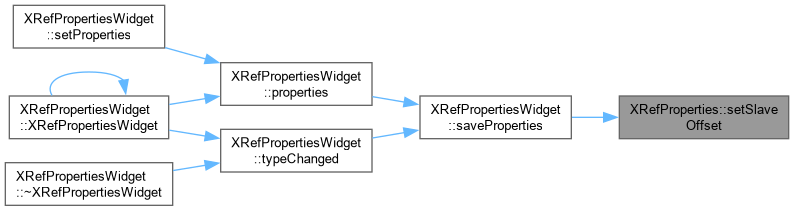

Here is the caller graph for this function:

setSlaveLabel()

void XRefProperties::setSlaveLabel ( const QString  slave )

inline

Here is the caller graph for this function:

setSnapTo()

void XRefProperties::setSnapTo ( const SnapTo  st )

inline

Here is the caller graph for this function:

setXrefPos()

void XRefProperties::setXrefPos ( const Qt::AlignmentFlag  xref )

inline

Here is the caller graph for this function:

showPowerContact()

bool XRefProperties::showPowerContact ( ) const

inline

Here is the caller graph for this function:

slaveLabel()

QString XRefProperties::slaveLabel ( ) const

inline

Here is the caller graph for this function:

snapTo()

SnapTo XRefProperties::snapTo ( ) const

inline

Here is the caller graph for this function:

toSettings()

void XRefProperties::toSettings ( QSettings &  settings, const QString  prefix = QString()  ) const

overridevirtual

XRefProperties::toSettings Save to settings.

Parameters

settings	QSettings to use
prefix	prefix before properties name

Implements PropertiesInterface.

Here is the call graph for this function:

Here is the caller graph for this function:

toXml()

QDomElement XRefProperties::toXml ( QDomDocument &  xml_document ) const

overridevirtual

XRefProperties::toXml Save to xml.

Parameters

xml_document

: QDomElement to use for saving

Returns

QDomElement

Implements PropertiesInterface.

Here is the call graph for this function:

Member Data Documentation

m_display

DisplayHas XRefProperties::m_display

private

m_key

QString XRefProperties::m_key

private

m_master_label

QString XRefProperties::m_master_label

private

m_offset

int XRefProperties::m_offset

private

m_prefix

QHash<QString, QString> XRefProperties::m_prefix

private

m_prefix_keys

QStringList XRefProperties::m_prefix_keys

private

m_show_power_ctc

bool XRefProperties::m_show_power_ctc

private

m_slave_label

QString XRefProperties::m_slave_label

private

m_snap_to

SnapTo XRefProperties::m_snap_to

private

m_xref_pos

Qt::AlignmentFlag XRefProperties::m_xref_pos

private

---

The documentation for this class was generated from the following files:

• sources/properties/xrefproperties.h
• sources/properties/xrefproperties.cpp
