ConductorProperties Class Reference

The ConductorProperties class This class represents the functional properties of a particular conductor, i.e. properties other than path and terminals. More...

#include <conductorproperties.h>

Collaboration diagram for ConductorProperties:

Public Types
enum	ConductorType { Single , Multi }
	The ConductorType enum Represents the kind of a particular conductor: Single: singleline symbols, no text input Multi: text input, no symbol. More...

Public Member Functions
	ConductorProperties ()
virtual	~ConductorProperties ()
void	toXml (QDomElement &) const
	ConductorProperties::toXml Export conductor properties to the XML element 'e'.
void	fromXml (QDomElement &)
	ConductorProperties::fromXml Import conductor properties from the attribute of the xml element 'e'.
void	toSettings (QSettings &, const QString &=QString()) const
void	fromSettings (QSettings &, const QString &=QString())
void	applyForEqualAttributes (QList< ConductorProperties > list)
	ConductorProperties::applyForEqualAttributes Test each attribute of properties in the list separatly. For each attributes, if is equal, the attribute is apply to this.
bool	operator== (const ConductorProperties &) const
	ConductorProperties::operator ==.
bool	operator!= (const ConductorProperties &) const

Static Public Member Functions
static QString	typeToString (ConductorType)
static ConductorProperties	defaultProperties ()
	ConductorProperties::defaultProperties.

Public Attributes
ConductorType	type
QColor	color
QColor	m_color_2
QColor	text_color
QString	text
QString	m_function
QString	m_tension_protocol
QString	m_wire_color
QString	m_wire_section
QString	m_formula
QString	m_bus
QString	m_cable
int	text_size
int	m_dash_size = 1
double	cond_size
double	verti_rotate_text
double	horiz_rotate_text
bool	m_show_text
bool	m_one_text_per_folio
bool	m_bicolor = false
Qt::Alignment	m_horizontal_alignment = Qt::AlignBottom
Qt::Alignment	m_vertical_alignment = Qt::AlignRight
Qt::PenStyle	style
SingleLineProperties	singleLineProperties

Private Member Functions
void	readStyle (const QString &)
QString	writeStyle () const

Detailed Description

The ConductorProperties class This class represents the functional properties of a particular conductor, i.e. properties other than path and terminals.

Member Enumeration Documentation

ConductorType

enum ConductorProperties::ConductorType

The ConductorType enum Represents the kind of a particular conductor: Single: singleline symbols, no text input Multi: text input, no symbol.

Enumerator
Single
Multi

Constructor & Destructor Documentation

ConductorProperties()

ConductorProperties::ConductorProperties

(

)

Constructeur : par defaut, les proprietes font un conducteur multifilaire noir dont le texte est "_"

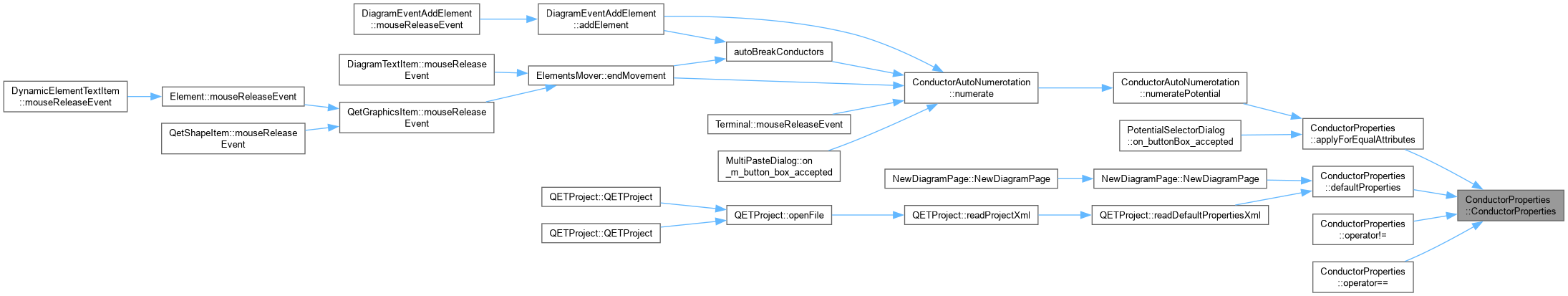

Here is the caller graph for this function:

~ConductorProperties()

ConductorProperties::~ConductorProperties ( )

virtual

Destructeur

Member Function Documentation

applyForEqualAttributes()

void ConductorProperties::applyForEqualAttributes

(

QList< ConductorProperties >

list

)

ConductorProperties::applyForEqualAttributes Test each attribute of properties in the list separatly. For each attributes, if is equal, the attribute is apply to this.

Parameters

list

Here is the call graph for this function:

Here is the caller graph for this function:

defaultProperties()

ConductorProperties ConductorProperties::defaultProperties ( )

static

ConductorProperties::defaultProperties.

Returns

the default properties stored in the setting file

Here is the call graph for this function:

Here is the caller graph for this function:

fromSettings()

void ConductorProperties::fromSettings	(	QSettings &	settings,
		const QString &	prefix = QString() )

Parameters

settings	Parametres a lire
prefix	prefixe a ajouter devant les noms des parametres

Here is the call graph for this function:

Here is the caller graph for this function:

fromXml()

void ConductorProperties::fromXml

(

QDomElement &

e

)

ConductorProperties::fromXml Import conductor properties from the attribute of the xml element 'e'.

Parameters

e	the xml document

Here is the call graph for this function:

Here is the caller graph for this function:

operator!=()

bool ConductorProperties::operator!=

(

const ConductorProperties &

other

)

const

Parameters

other

l'autre ensemble de proprietes avec lequel il faut effectuer la comparaison

Returns

true si les deux ensembles de proprietes sont differents, false sinon

Here is the call graph for this function:

operator==()

bool ConductorProperties::operator==

(

const ConductorProperties &

other

)

const

ConductorProperties::operator ==.

Parameters

other

Returns

true if other == this

Here is the call graph for this function:

readStyle()

void ConductorProperties::readStyle ( const QString & style_string )

private

Applique les styles passes en parametre dans cet objet

Parameters

style_string

Chaine decrivant le style du conducteur

Here is the caller graph for this function:

toSettings()

void ConductorProperties::toSettings	(	QSettings &	settings,
		const QString &	prefix = QString() ) const

Parameters

settings	Parametres a ecrire
prefix	prefixe a ajouter devant les noms des parametres

Here is the call graph for this function:

toXml()

void ConductorProperties::toXml

(

QDomElement &

e

)

const

ConductorProperties::toXml Export conductor properties to the XML element 'e'.

Parameters

e	the xml element

Here is the call graph for this function:

typeToString()

QString ConductorProperties::typeToString ( ConductorType t )

static

Parameters

t	type du conducteur

Here is the caller graph for this function:

writeStyle()

QString ConductorProperties::writeStyle ( ) const

private

Exporte le style du conducteur sous forme d'une chaine de caracteres

Returns

une chaine de caracteres decrivant le style du conducteur

Here is the caller graph for this function:

Member Data Documentation

color

QColor ConductorProperties::color

cond_size

double ConductorProperties::cond_size

horiz_rotate_text

double ConductorProperties::horiz_rotate_text

m_bicolor

bool ConductorProperties::m_bicolor = false

m_bus

QString ConductorProperties::m_bus

m_cable

QString ConductorProperties::m_cable

m_color_2

QColor ConductorProperties::m_color_2

m_dash_size

int ConductorProperties::m_dash_size = 1

m_formula

QString ConductorProperties::m_formula

m_function

QString ConductorProperties::m_function

m_horizontal_alignment

Qt::Alignment ConductorProperties::m_horizontal_alignment = Qt::AlignBottom

m_one_text_per_folio

bool ConductorProperties::m_one_text_per_folio

m_show_text

bool ConductorProperties::m_show_text

m_tension_protocol

QString ConductorProperties::m_tension_protocol

m_vertical_alignment

Qt::Alignment ConductorProperties::m_vertical_alignment = Qt::AlignRight

m_wire_color

QString ConductorProperties::m_wire_color

m_wire_section

QString ConductorProperties::m_wire_section

singleLineProperties

SingleLineProperties ConductorProperties::singleLineProperties

style

Qt::PenStyle ConductorProperties::style

text

QString ConductorProperties::text

text_color

QColor ConductorProperties::text_color

text_size

int ConductorProperties::text_size

type

ConductorType ConductorProperties::type

verti_rotate_text

double ConductorProperties::verti_rotate_text

---

The documentation for this class was generated from the following files:

• sources/conductorproperties.h
• sources/conductorproperties.cpp
