ElementCollectionItem Class Reference

The ElementCollectionItem class This class represent a item (a directory or an element) in a element collection. This class must be herited for specialisation. This item is used by ElementsCollectionModel for manage the elements collection. More...

#include <elementcollectionitem.h>

Inheritance diagram for ElementCollectionItem:

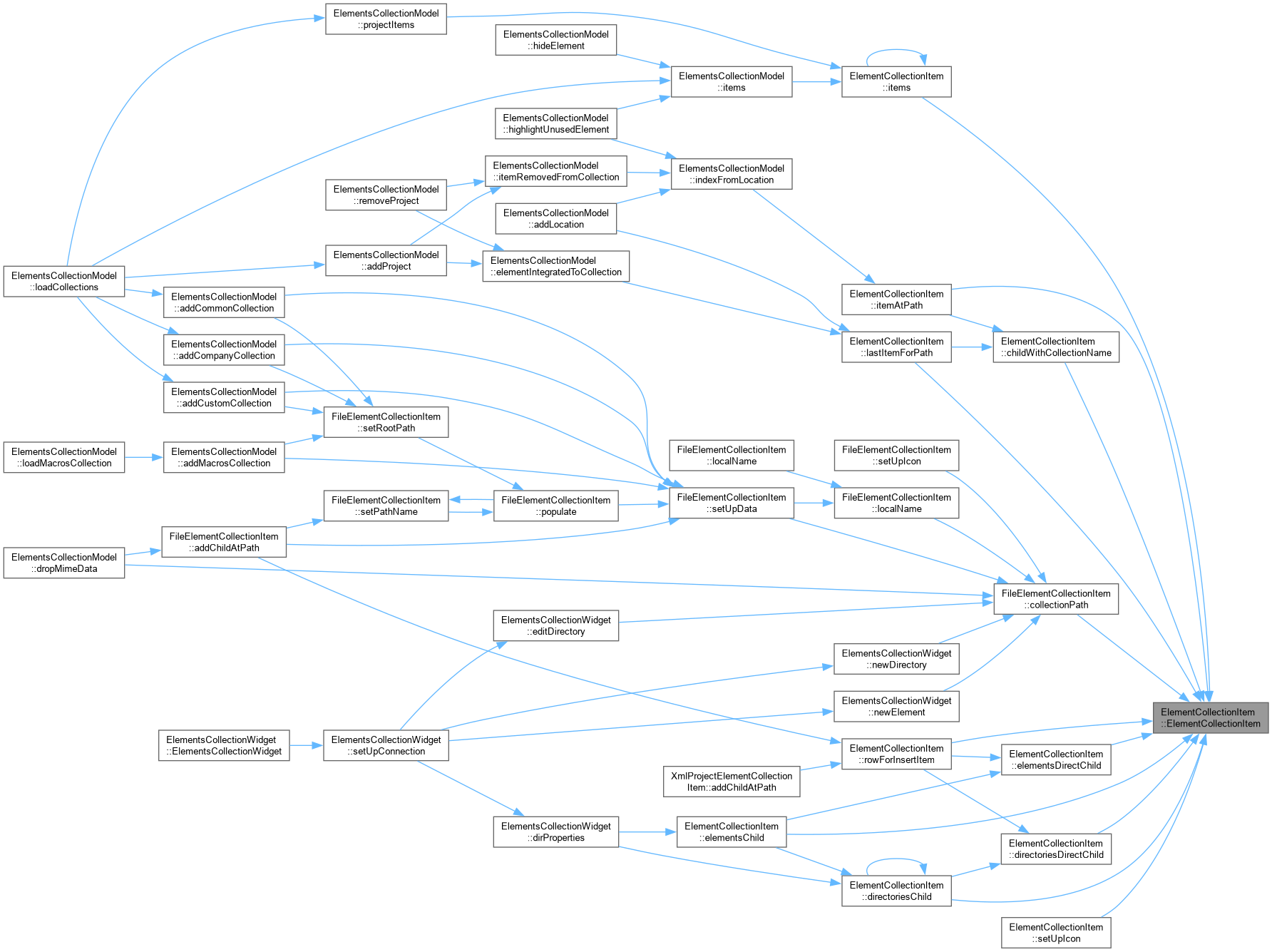

Collaboration diagram for ElementCollectionItem:

Public Types
enum	{ Type = UserType+1 }

Public Member Functions
	ElementCollectionItem ()
	ElementCollectionItem::ElementCollectionItem Constructor.
int	type () const override
virtual bool	isDir () const =0
virtual bool	isElement () const =0
virtual QString	localName ()=0
virtual QString	name () const =0
virtual QString	collectionPath () const =0
virtual bool	isCollectionRoot () const =0
virtual void	addChildAtPath (const QString &collection_name)=0
virtual void	setUpData ()=0
virtual void	setUpIcon ()=0
virtual void	clearData ()
	ElementCollectionItem::clearData Reset the data.
ElementCollectionItem *	lastItemForPath (const QString &path, QString &no_found_path)
	ElementCollectionItem::lastItemForPath Return the last existing item in this ElementCollectionItem hierarchy according to the given path. Next_item is the first non existing item in this hierarchy according to the given path.
ElementCollectionItem *	childWithCollectionName (const QString &name) const
	ElementCollectionItem::childWithCollectionName Return the child with the collection name name, else return nullptr.
QList< QStandardItem * >	directChilds () const
	ElementCollectionItem::directChilds Return the direct child of this item.
int	rowForInsertItem (const QString &name)
	ElementCollectionItem::rowForInsertItem Return the row for insert a new child item to this item with name.
ElementCollectionItem *	itemAtPath (const QString &path)
	ElementCollectionItem::itemAtPath.
QList< ElementCollectionItem * >	elementsDirectChild () const
	ElementCollectionItem::elementsDirectChild.
QList< ElementCollectionItem * >	directoriesDirectChild () const
	ElementCollectionItem::directoriesDirectChild.
QList< ElementCollectionItem * >	elementsChild () const
	ElementCollectionItem::elementsChild.
QList< ElementCollectionItem * >	directoriesChild () const
	ElementCollectionItem::directoriesChild.
QList< ElementCollectionItem * >	items () const
	ElementCollectionItem::items.

Detailed Description

The ElementCollectionItem class This class represent a item (a directory or an element) in a element collection. This class must be herited for specialisation. This item is used by ElementsCollectionModel for manage the elements collection.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

ElementCollectionItem()

ElementCollectionItem::ElementCollectionItem

(

)

ElementCollectionItem::ElementCollectionItem Constructor.

Member Function Documentation

addChildAtPath()

virtual void ElementCollectionItem::addChildAtPath ( const QString &  collection_name )

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

childWithCollectionName()

ElementCollectionItem * ElementCollectionItem::childWithCollectionName

(

const QString &

name

)

const

ElementCollectionItem::childWithCollectionName Return the child with the collection name name, else return nullptr.

Parameters

name

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

clearData()

void ElementCollectionItem::clearData ( )

virtual

ElementCollectionItem::clearData Reset the data.

Here is the caller graph for this function:

collectionPath()

virtual QString ElementCollectionItem::collectionPath ( ) const

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

directChilds()

QList< QStandardItem * > ElementCollectionItem::directChilds

(

)

const

ElementCollectionItem::directChilds Return the direct child of this item.

Returns

Here is the caller graph for this function:

directoriesChild()

QList< ElementCollectionItem * > ElementCollectionItem::directoriesChild

(

)

const

ElementCollectionItem::directoriesChild.

Returns

Every directories child (direct and indirect) of this item

Here is the call graph for this function:

Here is the caller graph for this function:

directoriesDirectChild()

QList< ElementCollectionItem * > ElementCollectionItem::directoriesDirectChild

(

)

const

ElementCollectionItem::directoriesDirectChild.

Returns

the direct directory child of this item

Here is the call graph for this function:

Here is the caller graph for this function:

elementsChild()

QList< ElementCollectionItem * > ElementCollectionItem::elementsChild

(

)

const

ElementCollectionItem::elementsChild.

Returns

Every elements child (direct and indirect) of this item

Here is the call graph for this function:

Here is the caller graph for this function:

elementsDirectChild()

QList< ElementCollectionItem * > ElementCollectionItem::elementsDirectChild

(

)

const

ElementCollectionItem::elementsDirectChild.

Returns

The direct element child of this item

Here is the call graph for this function:

Here is the caller graph for this function:

isCollectionRoot()

virtual bool ElementCollectionItem::isCollectionRoot ( ) const

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

isDir()

virtual bool ElementCollectionItem::isDir ( ) const

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

isElement()

virtual bool ElementCollectionItem::isElement ( ) const

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

itemAtPath()

ElementCollectionItem * ElementCollectionItem::itemAtPath

(

const QString &

path

)

ElementCollectionItem::itemAtPath.

Parameters

path

Returns

the item at path or nullptr if doesn't exist

Here is the call graph for this function:

Here is the caller graph for this function:

items()

QList< ElementCollectionItem * > ElementCollectionItem::items

(

)

const

ElementCollectionItem::items.

Returns

every childs of this item (direct and indirect childs)

Here is the call graph for this function:

Here is the caller graph for this function:

lastItemForPath()

ElementCollectionItem * ElementCollectionItem::lastItemForPath	(	const QString &	path,
		QString &	no_found_path
	)

ElementCollectionItem::lastItemForPath Return the last existing item in this ElementCollectionItem hierarchy according to the given path. Next_item is the first non existing item in this hierarchy according to the given path.

Parameters

path	: The path to find last item. The path must be in form : path/otherPath/.../.../myElement.elmt.
no_found_path	: The first item that not exist in this hierarchy

Returns

: The last item that exist in this hierarchy, or nullptr can't find (an error was occurred, or path already exist)

Here is the call graph for this function:

Here is the caller graph for this function:

localName()

virtual QString ElementCollectionItem::localName ( )

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

name()

virtual QString ElementCollectionItem::name ( ) const

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

rowForInsertItem()

int ElementCollectionItem::rowForInsertItem

(

const QString &

name

)

ElementCollectionItem::rowForInsertItem Return the row for insert a new child item to this item with name.

Parameters

name

Returns

If row can't be found (name is null, or already exist) return -1;

Here is the call graph for this function:

Here is the caller graph for this function:

setUpData()

virtual void ElementCollectionItem::setUpData ( )

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

Here is the caller graph for this function:

setUpIcon()

virtual void ElementCollectionItem::setUpIcon ( )

pure virtual

Implemented in FileElementCollectionItem, and XmlProjectElementCollectionItem.

type()

int ElementCollectionItem::type ( ) const

inlineoverride

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• sources/ElementsCollection/elementcollectionitem.h
• sources/ElementsCollection/elementcollectionitem.cpp
