ElementData Class Reference

The ElementData class WARNING This class inherit from PropertiesInterface but only fromXml is actually reimplemented. More...

#include <elementdata.h>

Inheritance diagram for ElementData:

Collaboration diagram for ElementData:

Classes
struct	PlcIO
	The PlcIO struct Represents a single IO entry in a PLC master element. More...
struct	PlcMasterData
	The PlcMasterData struct Stores all PLC master configuration: IO table, display settings, column visibility. All data is stored in the .elmt file for easy sharing between users. More...
struct	SlaveContactGroup
	The SlaveContactGroup struct Defines a contact group that a master element provides for slave elements. Each group specifies the type, subtype, number of displayed contacts, number of terminals, and the labels for each terminal (T1-T20). More...

Public Types
enum	Type {   Simple = 1 , NextReport = 2 , PreviousReport = 4 , AllReport = 6 ,   Master = 8 , Slave = 16 , Terminal = 32 , Thumbnail = 64 ,   ConductorDefinition = 128 }
enum	MasterType { Coil , Protection , Commutator , PLC }
enum	SlaveType {   SSimple , Power , DelayOn , DelayOff ,   delayOnOff , PLCSlave }
enum	SlaveState { NO , NC , SW , Other }
enum	PlcIOType {   EntreeDigitale , SortieDigitale , EntreeAnalogique , SortieAnalogique ,   EntreeUniverselle , SortieUniverselle }
enum	TerminalType {   TTGeneric , TTFuse , TTSectional , TTDiode ,   TTGround }
enum	TerminalFunction { TFGeneric , TFPhase , TFNeutral }

Public Member Functions
	ElementData ()
	~ElementData () override
void	toSettings (QSettings &settings, const QString prefix=QString()) const override
	toSettings Save properties to setting file.
void	fromSettings (const QSettings &settings, const QString prefix=QString()) override
	fromSettings load properties to setting file.
QDomElement	toXml (QDomDocument &xml_element) const override
	toXml Save properties to xml element
bool	fromXml (const QDomElement &xml_element) override
	ElementData::fromXml load properties from xml element. The tag name of xml_element must be definition and have an attribute "type".
QDomElement	kindInfoToXml (QDomDocument &document)
QDomElement	plcMasterDataToXml (QDomDocument &document) const
	ElementData::plcMasterDataToXml Serialize PLC master data to XML (used by Element::toXml for diagram instances).
void	plcMasterDataFromXml (const QDomElement &xml_plc)
	ElementData::plcMasterDataFromXml Deserialize PLC master data from XML.
void	setTerminalType (ElementData::TerminalType t_type)
	ElementData::setTerminalType Override the terminal type by t_type.
ElementData::TerminalType	terminalType () const
	ElementData::terminalType.
void	setTerminalFunction (ElementData::TerminalFunction t_function)
	ElementData::setTerminalFunction Override the terminal function by t_function.
ElementData::TerminalFunction	terminalFunction () const
	ElementData::terminalFunction.
void	setTerminalLED (bool led)
	ElementData::setTerminalLED Override the terminal led by led.
bool	terminalLed () const
	ElementData::terminalLed.
bool	terminalPropertiesIsOverrided () const
	ElementData::terminalPropertiesIsOverrided.
bool	operator== (const ElementData &data) const
bool	operator!= (const ElementData &data) const
QString	typeToString () const
QString	masterTypeToString () const
PlcMasterData	plcMasterData () const
void	setPlcMasterData (const PlcMasterData &data)
Public Member Functions inherited from PropertiesInterface
	PropertiesInterface ()
	PropertiesInterface::PropertiesInterface.
virtual	~PropertiesInterface ()
	PropertiesInterface::~PropertiesInterface.

Static Public Member Functions
static QString	plcIOTypeToString (PlcIOType type)
	ElementData::plcIOTypeToString Convert a PlcIOType to string for XML storage.
static PlcIOType	plcIOTypeFromString (const QString &string)
	ElementData::plcIOTypeFromString Convert a string from XML to PlcIOType.
static QString	translatedPlcIOType (PlcIOType type)
	ElementData::translatedPlcIOType Return translated string for PlcIOType.
static QStringList	plcIOTypeList ()
	ElementData::plcIOTypeList Return list of all translated PLC IO type strings (for combo boxes).
static QString	typeToString (ElementData::Type type)
static ElementData::Type	typeFromString (const QString &string)
static QString	masterTypeToString (ElementData::MasterType type)
static ElementData::MasterType	masterTypeFromString (const QString &string)
static QString	slaveTypeToString (ElementData::SlaveType type)
static ElementData::SlaveType	slaveTypeFromString (const QString &string)
static QString	slaveStateToString (ElementData::SlaveState type)
static ElementData::SlaveState	slaveStateFromString (const QString &string)
static QString	terminalTypeToString (ElementData::TerminalType type)
static ElementData::TerminalType	terminalTypeFromString (const QString &string)
static QString	translatedTerminalType (ElementData::TerminalType type)
static QString	terminalFunctionToString (ElementData::TerminalFunction function)
static ElementData::TerminalFunction	terminalFunctionFromString (const QString &string)
static QString	translatedTerminalFunction (ElementData::TerminalFunction function)
static QString	slaveContactGroupTypeToString (ElementData::SlaveState type)
	ElementData::slaveContactGroupTypeToString Convert a SlaveState to string for XML storage in slave contact groups. Maps: NO -> "NO", NC -> "NC", SW -> "SW", Other -> "Other".
static ElementData::SlaveState	slaveContactGroupTypeFromString (const QString &string)
	ElementData::slaveContactGroupTypeFromString Convert a string from XML to SlaveState for slave contact groups.
static QString	slaveContactGroupSubtypeToString (ElementData::SlaveType type)
	ElementData::slaveContactGroupSubtypeToString Convert a SlaveType to string for XML storage in slave contact groups.
static ElementData::SlaveType	slaveContactGroupSubtypeFromString (const QString &string)
	ElementData::slaveContactGroupSubtypeFromString Convert a string from XML to SlaveType for slave contact groups.

Public Attributes
ElementData::Type	m_type = ElementData::Simple
ElementData::MasterType	m_master_type = ElementData::Coil
int	m_max_slaves {-1}
bool	m_slave_contact_groups_enabled {false}
	Whether slave contact groups table is active.
QVector< SlaveContactGroup >	m_slave_contact_groups
	Contact groups defined by master.
PlcMasterData	m_plc_master_data
	PLC master IO table and display settings.
ElementData::SlaveType	m_slave_type = ElementData::SSimple
ElementData::SlaveState	m_slave_state = ElementData::NO
ElementData::TerminalType	m_terminal_type = ElementData::TTGeneric
ElementData::TerminalFunction	m_terminal_function = ElementData::TFGeneric
int	m_contact_count {1}
DiagramContext	m_informations
NamesList	m_names_list
QString	m_drawing_information

Private Member Functions
void	kindInfoFromXml (const QDomElement &xml_element)

Private Attributes
ElementData::TerminalType	m_override_terminal_type = ElementData::TTGeneric
bool	m_terminal_type_is_override = false
ElementData::TerminalFunction	m_override_terminal_function = ElementData::TFGeneric
bool	m_terminal_function_is_override = false
bool	m_terminal_led = false
bool	m_terminal_led_is_override = false
bool	m_override_terminal_led = false

Detailed Description

The ElementData class WARNING This class inherit from PropertiesInterface but only fromXml is actually reimplemented.

Member Enumeration Documentation

MasterType

enum ElementData::MasterType

Enumerator
Coil
Protection
Commutator
PLC

PlcIOType

enum ElementData::PlcIOType

Enumerator
EntreeDigitale
SortieDigitale
EntreeAnalogique
SortieAnalogique
EntreeUniverselle
SortieUniverselle

SlaveState

enum ElementData::SlaveState

Enumerator
NO
NC
SW
Other

SlaveType

enum ElementData::SlaveType

Enumerator
SSimple
Power
DelayOn
DelayOff
delayOnOff
PLCSlave

TerminalFunction

enum ElementData::TerminalFunction

Enumerator
TFGeneric
TFPhase
TFNeutral

TerminalType

enum ElementData::TerminalType

Enumerator
TTGeneric
TTFuse
TTSectional
TTDiode
TTGround

Type

enum ElementData::Type

Enumerator
Simple
NextReport
PreviousReport
AllReport
Master
Slave
Terminal
Thumbnail
ConductorDefinition

Constructor & Destructor Documentation

ElementData()

ElementData::ElementData ( )

inline

Here is the caller graph for this function:

~ElementData()

ElementData::~ElementData ( )

inlineoverride

Member Function Documentation

fromSettings()

void ElementData::fromSettings ( const QSettings & settings, const QString = QString() )

overridevirtual

fromSettings load properties to setting file.

Parameters

settings	: is use for prefix a word before the name of each parameter
QString

Implements PropertiesInterface.

fromXml()

bool ElementData::fromXml ( const QDomElement & xml_element )

overridevirtual

ElementData::fromXml load properties from xml element. The tag name of xml_element must be definition and have an attribute "type".

Parameters

xml_element

: tagName must be 'definition'

Returns

true is successfully loaded

Implements PropertiesInterface.

Here is the call graph for this function:

kindInfoFromXml()

void ElementData::kindInfoFromXml ( const QDomElement & xml_element )

private

Here is the call graph for this function:

Here is the caller graph for this function:

kindInfoToXml()

QDomElement ElementData::kindInfoToXml

(

QDomDocument &

document

)

Here is the call graph for this function:

masterTypeFromString()

ElementData::MasterType ElementData::masterTypeFromString ( const QString & string )

static

Here is the caller graph for this function:

masterTypeToString() [1/2]

QString ElementData::masterTypeToString

(

)

const

Here is the call graph for this function:

Here is the caller graph for this function:

masterTypeToString() [2/2]

QString ElementData::masterTypeToString ( ElementData::MasterType type )

static

operator!=()

bool ElementData::operator!=

(

const ElementData &

data

)

const

Here is the call graph for this function:

operator==()

bool ElementData::operator==

(

const ElementData &

data

)

const

Here is the call graph for this function:

plcIOTypeFromString()

ElementData::PlcIOType ElementData::plcIOTypeFromString ( const QString & string )

static

ElementData::plcIOTypeFromString Convert a string from XML to PlcIOType.

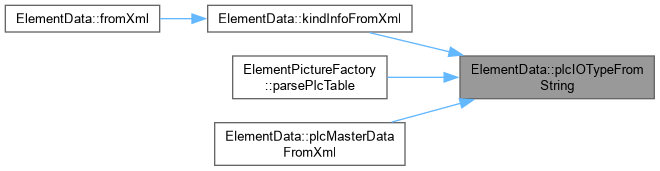

Here is the caller graph for this function:

plcIOTypeList()

QStringList ElementData::plcIOTypeList ( )

static

ElementData::plcIOTypeList Return list of all translated PLC IO type strings (for combo boxes).

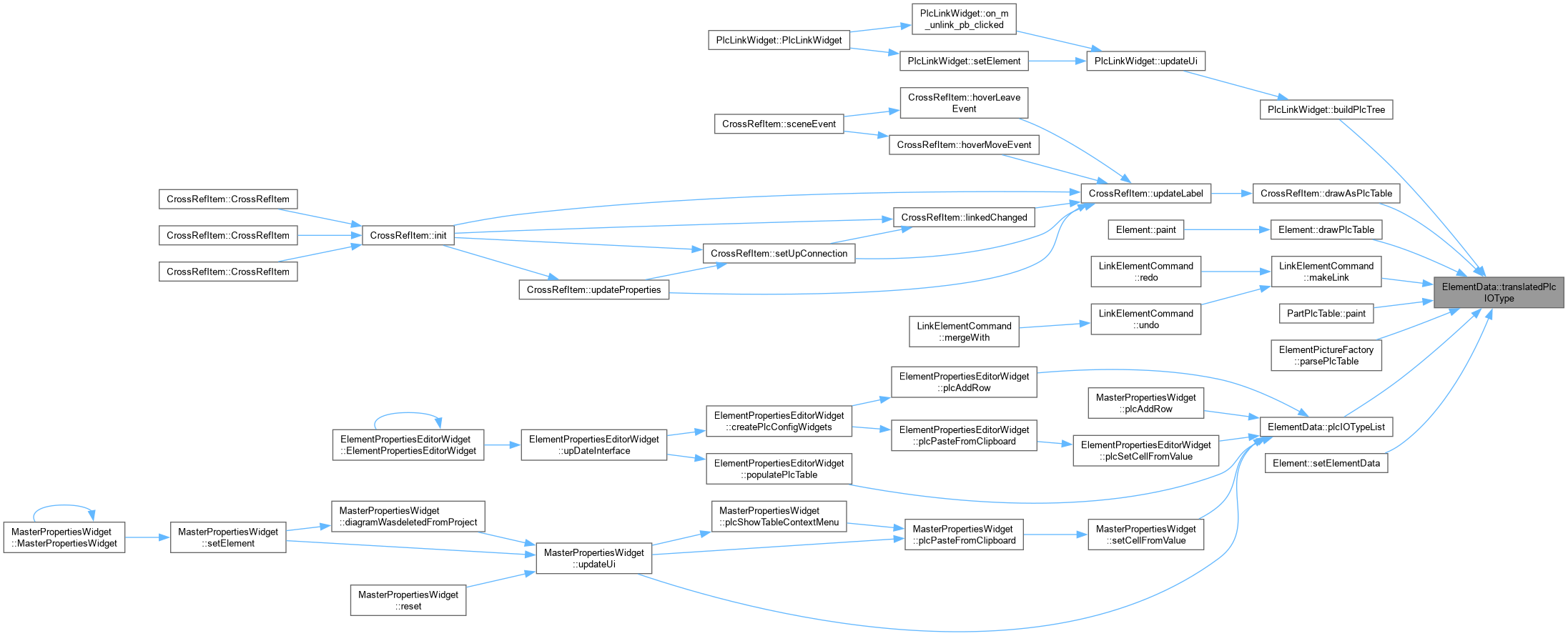

Here is the call graph for this function:

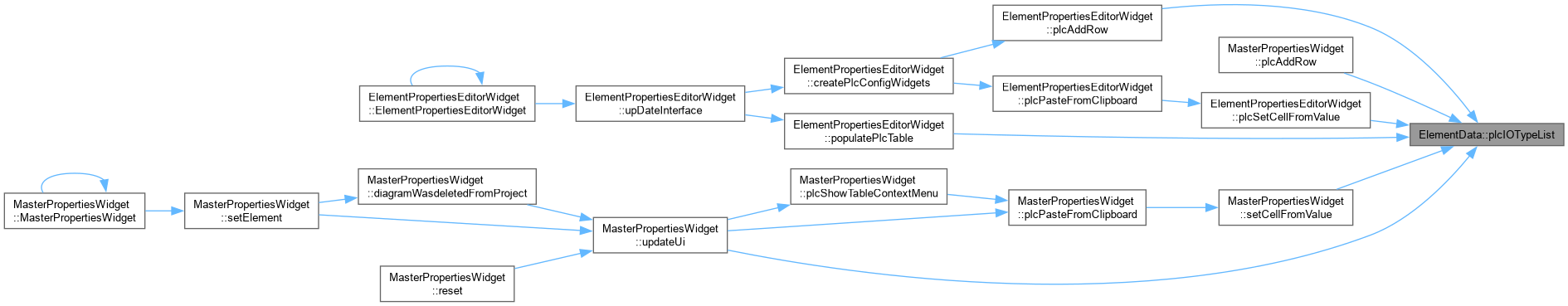

Here is the caller graph for this function:

plcIOTypeToString()

QString ElementData::plcIOTypeToString ( PlcIOType type )

static

ElementData::plcIOTypeToString Convert a PlcIOType to string for XML storage.

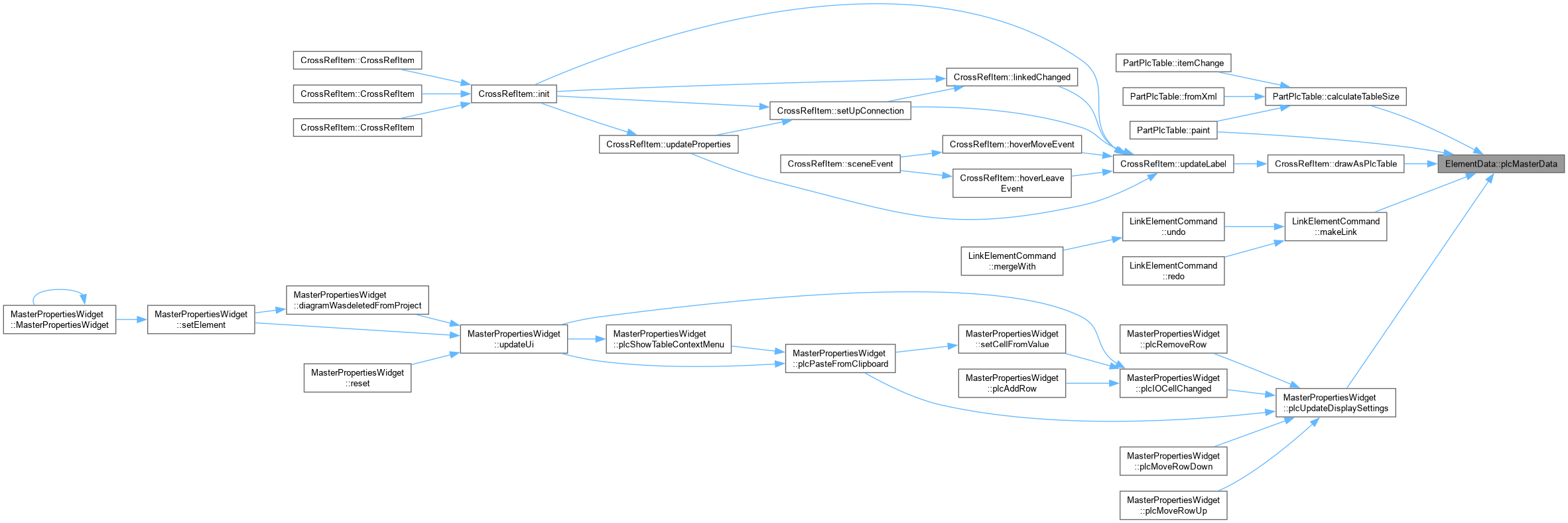

Here is the caller graph for this function:

plcMasterData()

PlcMasterData ElementData::plcMasterData ( ) const

inline

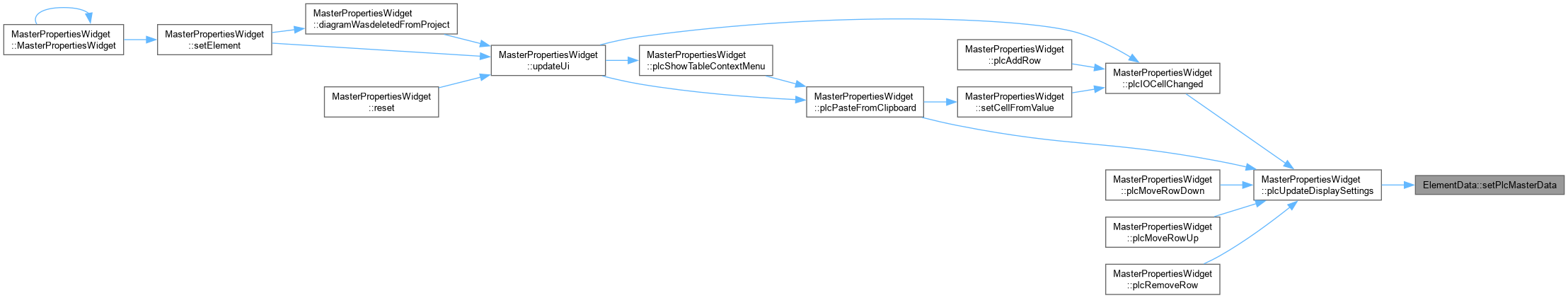

Here is the caller graph for this function:

plcMasterDataFromXml()

void ElementData::plcMasterDataFromXml

(

const QDomElement &

xml_plc

)

ElementData::plcMasterDataFromXml Deserialize PLC master data from XML.

Here is the call graph for this function:

plcMasterDataToXml()

QDomElement ElementData::plcMasterDataToXml

(

QDomDocument &

document

)

const

ElementData::plcMasterDataToXml Serialize PLC master data to XML (used by Element::toXml for diagram instances).

Here is the call graph for this function:

setPlcMasterData()

void ElementData::setPlcMasterData ( const PlcMasterData & data )

inline

Here is the caller graph for this function:

setTerminalFunction()

void ElementData::setTerminalFunction

(

ElementData::TerminalFunction

t_function

)

ElementData::setTerminalFunction Override the terminal function by t_function.

Parameters

t_function

setTerminalLED()

void ElementData::setTerminalLED

(

bool

led

)

ElementData::setTerminalLED Override the terminal led by led.

Parameters

led

setTerminalType()

void ElementData::setTerminalType

(

ElementData::TerminalType

t_type

)

ElementData::setTerminalType Override the terminal type by t_type.

Parameters

t_type

slaveContactGroupSubtypeFromString()

ElementData::SlaveType ElementData::slaveContactGroupSubtypeFromString ( const QString & string )

static

ElementData::slaveContactGroupSubtypeFromString Convert a string from XML to SlaveType for slave contact groups.

Here is the call graph for this function:

slaveContactGroupSubtypeToString()

QString ElementData::slaveContactGroupSubtypeToString ( ElementData::SlaveType type )

static

ElementData::slaveContactGroupSubtypeToString Convert a SlaveType to string for XML storage in slave contact groups.

Here is the call graph for this function:

slaveContactGroupTypeFromString()

ElementData::SlaveState ElementData::slaveContactGroupTypeFromString ( const QString & string )

static

ElementData::slaveContactGroupTypeFromString Convert a string from XML to SlaveState for slave contact groups.

Here is the call graph for this function:

slaveContactGroupTypeToString()

QString ElementData::slaveContactGroupTypeToString ( ElementData::SlaveState type )

static

ElementData::slaveContactGroupTypeToString Convert a SlaveState to string for XML storage in slave contact groups. Maps: NO -> "NO", NC -> "NC", SW -> "SW", Other -> "Other".

Here is the call graph for this function:

slaveStateFromString()

ElementData::SlaveState ElementData::slaveStateFromString ( const QString & string )

static

Here is the caller graph for this function:

slaveStateToString()

QString ElementData::slaveStateToString ( ElementData::SlaveState type )

static

Here is the caller graph for this function:

slaveTypeFromString()

ElementData::SlaveType ElementData::slaveTypeFromString ( const QString & string )

static

Here is the caller graph for this function:

slaveTypeToString()

QString ElementData::slaveTypeToString ( ElementData::SlaveType type )

static

Here is the caller graph for this function:

terminalFunction()

ElementData::TerminalFunction ElementData::terminalFunction

(

)

const

ElementData::terminalFunction.

Returns

the terminal function or overrided terminal function if set

terminalFunctionFromString()

ElementData::TerminalFunction ElementData::terminalFunctionFromString ( const QString & string )

static

Here is the caller graph for this function:

terminalFunctionToString()

QString ElementData::terminalFunctionToString ( ElementData::TerminalFunction function )

static

Here is the caller graph for this function:

terminalLed()

bool ElementData::terminalLed

(

)

const

ElementData::terminalLed.

Returns

if terminal have led or overrided led if set

terminalPropertiesIsOverrided()

bool ElementData::terminalPropertiesIsOverrided

(

)

const

ElementData::terminalPropertiesIsOverrided.

Returns

true if at least one sub properties of terminal type is overrided

terminalType()

ElementData::TerminalType ElementData::terminalType

(

)

const

ElementData::terminalType.

Returns

the terminal type or overrided terminal type if set

terminalTypeFromString()

ElementData::TerminalType ElementData::terminalTypeFromString ( const QString & string )

static

Here is the caller graph for this function:

terminalTypeToString()

QString ElementData::terminalTypeToString ( ElementData::TerminalType type )

static

Here is the caller graph for this function:

toSettings()

void ElementData::toSettings ( QSettings & settings, const QString = QString() ) const

overridevirtual

toSettings Save properties to setting file.

Parameters

settings	: is use for prefix a word before the name of each parameter
QString

Implements PropertiesInterface.

toXml()

QDomElement ElementData::toXml ( QDomDocument & xml_document ) const

overridevirtual

toXml Save properties to xml element

Parameters

xml_document

Returns

QDomElement

Implements PropertiesInterface.

translatedPlcIOType()

QString ElementData::translatedPlcIOType ( PlcIOType type )

static

ElementData::translatedPlcIOType Return translated string for PlcIOType.

Here is the caller graph for this function:

translatedTerminalFunction()

QString ElementData::translatedTerminalFunction ( ElementData::TerminalFunction function )

static

Here is the caller graph for this function:

translatedTerminalType()

QString ElementData::translatedTerminalType ( ElementData::TerminalType type )

static

Here is the caller graph for this function:

typeFromString()

ElementData::Type ElementData::typeFromString ( const QString & string )

static

Here is the caller graph for this function:

typeToString() [1/2]

QString ElementData::typeToString

(

)

const

Here is the call graph for this function:

Here is the caller graph for this function:

typeToString() [2/2]

QString ElementData::typeToString ( ElementData::Type type )

static

Member Data Documentation

m_contact_count

int ElementData::m_contact_count {1}

m_drawing_information

QString ElementData::m_drawing_information

m_informations

DiagramContext ElementData::m_informations

m_master_type

ElementData::MasterType ElementData::m_master_type = ElementData::Coil

m_max_slaves

int ElementData::m_max_slaves {-1}

m_names_list

NamesList ElementData::m_names_list

m_override_terminal_function

ElementData::TerminalFunction ElementData::m_override_terminal_function = ElementData::TFGeneric

private

m_override_terminal_led

bool ElementData::m_override_terminal_led = false

private

m_override_terminal_type

ElementData::TerminalType ElementData::m_override_terminal_type = ElementData::TTGeneric

private

m_plc_master_data

PlcMasterData ElementData::m_plc_master_data

PLC master IO table and display settings.

m_slave_contact_groups

QVector<SlaveContactGroup> ElementData::m_slave_contact_groups

Contact groups defined by master.

m_slave_contact_groups_enabled

bool ElementData::m_slave_contact_groups_enabled {false}

Whether slave contact groups table is active.

m_slave_state

ElementData::SlaveState ElementData::m_slave_state = ElementData::NO

m_slave_type

ElementData::SlaveType ElementData::m_slave_type = ElementData::SSimple

m_terminal_function

ElementData::TerminalFunction ElementData::m_terminal_function = ElementData::TFGeneric

m_terminal_function_is_override

bool ElementData::m_terminal_function_is_override = false

private

m_terminal_led

bool ElementData::m_terminal_led = false

private

m_terminal_led_is_override

bool ElementData::m_terminal_led_is_override = false

private

m_terminal_type

ElementData::TerminalType ElementData::m_terminal_type = ElementData::TTGeneric

m_terminal_type_is_override

bool ElementData::m_terminal_type_is_override = false

private

m_type

ElementData::Type ElementData::m_type = ElementData::Simple

---

The documentation for this class was generated from the following files:

• sources/properties/elementdata.h
• sources/properties/elementdata.cpp
