QET Namespace Reference

Namespaces
namespace	Icons
namespace	QetMessageBox

Enumerations
enum	GraphicsItemState { GIOK , GIBuildingFromXml , GILoadingFromXml }
enum	DepthOption { BringForward , Raise , Lower , SendBackward }
	List the various kind of changes for the zValue. More...
enum	OrientedMovement {   ToNorth , ToNorthEast , ToEast , ToSouthEast ,   ToSouth , ToSouthWest , ToWest , ToNorthWest }
	Oriented movements. More...
enum	OperationAreas {   ChangeInnerPoints = -4 , RotateArea = -3 , MoveArea = -2 , NoOperation = -1 ,   ResizeFromTopLeftCorner = 0 , ResizeFromTopCenterCorner = 1 , ResizeFromTopRightCorner = 2 , ResizeFromMiddleLeftCorner = 3 ,   ResizeFromMiddleRightCorner = 4 , ResizeFromBottomLeftCorner = 5 , ResizeFromBottomCenterCorner = 6 , ResizeFromBottomRightCorner = 7 }
	List areas related to some common operations. More...
enum	ScalingMethod { FreeScaling , SnapScalingPointToGrid , RoundScaleRatios }
	Supported types of interactive scaling, typically for a single element primitive. More...
enum	ConductorSegmentType { Horizontal = 1 , Vertical = 2 , Both = 3 }
	Known kinds of conductor segments. More...
enum	ItemType {   Element = 1 , ElementsCategory = 2 , ElementsCollection = 4 , ElementsContainer = 6 ,   ElementsCollectionItem = 7 , TitleBlockTemplate = 8 , TitleBlockTemplatesCollection = 16 , TitleBlockTemplatesCollectionItem = 24 ,   Diagram = 32 , Project = 64 , All = 127 }
enum	Filtering { BeginFilter , RegularFilter , EndFilter }
enum	Action {   Retry , Ignore , Erase , Abort ,   Managed , Rename }
enum	DiagramArea { BorderArea , ElementsArea }
enum	TitleBlockColumnLength { Absolute , RelativeToTotalLength , RelativeToRemainingLength }
	enum used to specify the type of a length More...
enum	QetCollection { Common , Company , Custom , Embedded }
	Enum used to specify the origin of a collection of thing (title block, element etc...) More...

Functions
QString	license ()
QString	qetCollectionToString (const QetCollection &c)
	QET::qetCollectionToString.
QetCollection	qetCollectionFromString (const QString &str)
	QET::qetCollectionFromString.
bool	lineContainsPoint (const QLineF &, const QPointF &)
bool	orthogonalProjection (const QPointF &, const QLineF &, QPointF *=nullptr)
bool	attributeIsAnInteger (const QDomElement &, const QString &, int *=nullptr)
bool	attributeIsAReal (const QDomElement &, const QString &, qreal *=nullptr)
QString	ElementsAndConductorsSentence (int elements=0, int conductors=0, int indi_texts=0, int images=0, int shapes=0, int element_text=0, int tables_count=0, int terminal_strip_count=0)
	QET::ElementsAndConductorsSentence Permet de composer rapidement la proposition "x elements et y conducteurs" ou encore "x elements, y conducteurs et z champs de texte".
QList< QDomElement >	findInDomElement (const QDomElement &, const QString &)
QList< QDomElement >	findInDomElement (const QDomElement &, const QString &, const QString &)
QList< QChar >	forbiddenCharacters ()
QString	stringToFileName (const QString &)
QString	escapeSpaces (const QString &)
QString	unescapeSpaces (const QString &)
QString	joinWithSpaces (const QStringList &)
QStringList	splitWithSpaces (const QString &)
QString	diagramAreaToString (const QET::DiagramArea &)
QET::DiagramArea	diagramAreaFromString (const QString &)
qreal	round (qreal, qreal)
qreal	correctAngle (const qreal &, const bool &positive=false)
bool	compareCanonicalFilePaths (const QString &, const QString &)
bool	writeXmlFile (QDomDocument &xml_doc, const QString &filepath, QString *error_message=nullptr)
bool	writeToFile (QDomDocument &xml_doc, QFile *file, QString *error_message=nullptr)
bool	eachStrIsEqual (const QStringList &qsl)
	QET::eachStrIsEqual.
QActionGroup *	depthActionGroup (QObject *parent=nullptr)
	QET::depthActionGroup.

Detailed Description

This file provides useful functions and enums that may be used from anywhere else within the QElectroTech application.

This namespace is meant to declare icons used within the QElectroTech application.

Enumeration Type Documentation

Action

enum QET::Action

This enums lists the various ways to handle a standard problem when copying or moving element items (collections, categories, elements).

See also

MoveElementsHandler

Enumerator
Retry	The operation must be tried again.
Ignore	Skip the current item.
Erase	Erase the target content.
Abort	abort the whole operation, ignoring the current item
Managed	the current item was handled by the Strategy object: do not treat it and continue
Rename	the target has to be renamed

ConductorSegmentType

enum QET::ConductorSegmentType

Known kinds of conductor segments.

Enumerator
Horizontal	Horizontal segment.
Vertical	Vertical segment.
Both	Invalid segment.

DepthOption

enum QET::DepthOption

List the various kind of changes for the zValue.

Enumerator
BringForward	Bring item to the foreground so they have the highest zValue.
Raise	Raise item one layer above their current one; zValues are incremented.
Lower	Send item one layer below their current one; zValues are decremented.
SendBackward	Send item to the background so they have the lowest zValue.

DiagramArea

enum QET::DiagramArea

This enum represents diagram areas that may be exported/printed.

Enumerator
BorderArea	Export the diagram along with its border and title block.
ElementsArea	Export the content of the diagram only.

Filtering

enum QET::Filtering

This enum represents the various steps when applying a filter.

Enumerator
BeginFilter
RegularFilter
EndFilter

GraphicsItemState

enum QET::GraphicsItemState

Enumerator
GIOK	General state.
GIBuildingFromXml	Item is currently building from a xml description (element)
GILoadingFromXml	Item is loading her properties from a xml description.

ItemType

enum QET::ItemType

This enums lists the various kind of items users can manage within the application.

Enumerator
Element
ElementsCategory
ElementsCollection
ElementsContainer
ElementsCollectionItem
TitleBlockTemplate
TitleBlockTemplatesCollection
TitleBlockTemplatesCollectionItem
Diagram
Project
All

OperationAreas

enum QET::OperationAreas

List areas related to some common operations.

Enumerator
ChangeInnerPoints
RotateArea
MoveArea
NoOperation
ResizeFromTopLeftCorner
ResizeFromTopCenterCorner
ResizeFromTopRightCorner
ResizeFromMiddleLeftCorner
ResizeFromMiddleRightCorner
ResizeFromBottomLeftCorner
ResizeFromBottomCenterCorner
ResizeFromBottomRightCorner

OrientedMovement

enum QET::OrientedMovement

Oriented movements.

Enumerator
ToNorth
ToNorthEast
ToEast
ToSouthEast
ToSouth
ToSouthWest
ToWest
ToNorthWest

QetCollection

enum QET::QetCollection

Enum used to specify the origin of a collection of thing (title block, element etc...)

Enumerator
Common	From common collection.
Company	From company collection.
Custom	From user collection.
Embedded	From an embedded collection (a project for example)

ScalingMethod

enum QET::ScalingMethod

Supported types of interactive scaling, typically for a single element primitive.

Enumerator
FreeScaling	do not interfere with the default scaling process
SnapScalingPointToGrid	snap the point used to define the new bounding rectangle to the grid
RoundScaleRatios	adjust the scaling movement so that the induced scaling ratios are rounded

TitleBlockColumnLength

enum QET::TitleBlockColumnLength

enum used to specify the type of a length

Enumerator
Absolute	the length is absolute and should be applied as is
RelativeToTotalLength	the length is just a fraction of the total available length
RelativeToRemainingLength	the length is just a fraction of the length that is still available when other types of lengths have been removed

Function Documentation

attributeIsAnInteger()

bool QET::attributeIsAnInteger	(	const QDomElement &	e,
		const QString &	nom_attribut,
		int *	entier = nullptr
	)

Permet de savoir si l'attribut nom_attribut d'un element XML e est bien un entier. Si oui, sa valeur est copiee dans entier.

Parameters

e	Element XML
nom_attribut	Nom de l'attribut a analyser
entier	Pointeur facultatif vers un entier

Returns

true si l'attribut est bien un entier, false sinon

Here is the caller graph for this function:

attributeIsAReal()

bool QET::attributeIsAReal	(	const QDomElement &	e,
		const QString &	nom_attribut,
		qreal *	reel = nullptr
	)

Permet de savoir si l'attribut nom_attribut d'un element XML e est bien un reel. Si oui, sa valeur est copiee dans reel.

Parameters

e	Element XML
nom_attribut	Nom de l'attribut a analyser
reel	Pointeur facultatif vers un double

Returns

true si l'attribut est bien un reel, false sinon

Here is the caller graph for this function:

compareCanonicalFilePaths()

bool QET::compareCanonicalFilePaths	(	const QString &	first,
		const QString &	second
	)

Parameters

first	Un premier chemin vers un fichier
second	Un second chemin vers un fichier

Returns

true si les deux chemins existent existent et sont identiques lorsqu'ils sont exprimes sous forme canonique

Here is the caller graph for this function:

correctAngle()

qreal QET::correctAngle	(	const qreal &	angle,
		const bool &	positive = false
	)

Parameters

angle

Un angle quelconque

Returns

l'angle passe en parametre, mais ramene entre -360.0 + 360.0 degres

Here is the caller graph for this function:

depthActionGroup()

QActionGroup * QET::depthActionGroup

(

QObject *

parent = nullptr

)

QET::depthActionGroup.

Parameters

parent

Returns

an action group which contain 4 actions (forward, raise, lower, backward) already made with icon, shortcut and data (see QET::DepthOption)

Here is the caller graph for this function:

diagramAreaFromString()

QET::DiagramArea QET::diagramAreaFromString

(

const QString &

string

)

Parameters

string

une chaine representant un type de zone de schema

Returns

le type de zone de schema correspondant ; si la chaine est invalide, QET::ElementsArea est retourne.

Here is the caller graph for this function:

diagramAreaToString()

QString QET::diagramAreaToString

(

const QET::DiagramArea &

diagram_area

)

Parameters

diagram_area

un type de zone de schema

Returns

une chaine representant le type de zone de schema

Here is the caller graph for this function:

eachStrIsEqual()

bool QET::eachStrIsEqual

(

const QStringList &

qsl

)

QET::eachStrIsEqual.

Parameters

qsl	list of string to compare

Returns

true if every string is identical, else false; The list must not be empty If the list can be empty, call isEmpty() before calling this function

Here is the caller graph for this function:

ElementsAndConductorsSentence()

QString QET::ElementsAndConductorsSentence	(	int	elements_count = 0,
		int	conductors_count = 0,
		int	texts_count = 0,
		int	images_count = 0,
		int	shapes_count = 0,
		int	element_text_count = 0,
		int	tables_count = 0,
		int	terminal_strip_count = 0
	)

QET::ElementsAndConductorsSentence Permet de composer rapidement la proposition "x elements et y conducteurs" ou encore "x elements, y conducteurs et z champs de texte".

Parameters

elements_count	nombre d'elements
conductors_count	nombre de conducteurs
texts_count	nombre de champs de texte
images_count	nombre d'images
shapes_count
element_text_count
tables_count

Returns

la proposition decrivant le nombre d'elements, de conducteurs et de textes

Here is the caller graph for this function:

escapeSpaces()

QString QET::escapeSpaces

(

const QString &

string

)

Parameters

string

une chaine de caracteres

Returns

la meme chaine de caracteres, mais avec les espaces et backslashes echappes

Here is the caller graph for this function:

findInDomElement() [1/2]

QList< QDomElement > QET::findInDomElement	(	const QDomElement &	e,
		const QString &	tag_name
	)

Returns

the list of tag_name elements directly under the e XML element.

Here is the caller graph for this function:

findInDomElement() [2/2]

QList< QDomElement > QET::findInDomElement	(	const QDomElement &	e,
		const QString &	parent,
		const QString &	children
	)

Etant donne un element XML e, renvoie la liste de tous les elements children imbriques dans les elements parent, eux-memes enfants de l'elememt e

Parameters

e	Element XML a explorer
parent	tag XML intermediaire
children	tag XML a rechercher

Returns

La liste des elements XML children

forbiddenCharacters()

QList< QChar > QET::forbiddenCharacters

(

)

Returns

la liste des caracteres interdits dans les noms de fichiers sous Windows

Here is the caller graph for this function:

joinWithSpaces()

QString QET::joinWithSpaces

(

const QStringList &

string_list

)

Assemble une liste de chaines en une seule. Un espace separe chaque chaine. Les espaces et backslashes des chaines sont echappes.

Parameters

string_list

une liste de chaine

Returns

l'assemblage des chaines

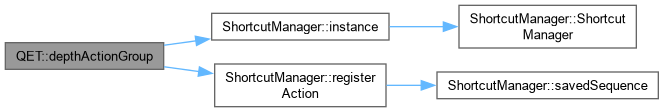

Here is the call graph for this function:

Here is the caller graph for this function:

license()

QString QET::license

(

)

Returns

le texte de la licence de QElectroTech (GNU/GPL)

Here is the caller graph for this function:

lineContainsPoint()

bool QET::lineContainsPoint	(	const QLineF &	line,
		const QPointF &	point
	)

Parameters

line	Un segment de droite
point	Un point

Returns

true si le point appartient au segment de droite, false sinon

Here is the caller graph for this function:

orthogonalProjection()

bool QET::orthogonalProjection	(	const QPointF &	point,
		const QLineF &	line,
		QPointF *	intersection = nullptr
	)

Parameters

point	Un point donne
line	Un segment de droite donnee
intersection	si ce pointeur est different de 0, le QPointF ainsi designe contiendra les coordonnees du projete orthogonal, meme si celui-ci n'appartient pas au segment de droite

Returns

true si le projete orthogonal du point sur la droite appartient au segment de droite.

Here is the call graph for this function:

Here is the caller graph for this function:

qetCollectionFromString()

QET::QetCollection QET::qetCollectionFromString

(

const QString &

str

)

QET::qetCollectionFromString.

Parameters

str	string to convert

Returns

The corresponding QetCollection value from a string. If the string don't match anything, we return the failsafe value QetCollection::Common

Here is the caller graph for this function:

qetCollectionToString()

QString QET::qetCollectionToString

(

const QetCollection &

c

)

QET::qetCollectionToString.

Parameters

c	QetCollection value to convert

Returns

The QetCollection enum value converted to a QString

Here is the caller graph for this function:

round()

qreal QET::round	(	qreal	x,
		qreal	epsilon
	)

Round x to the nearest multiple of the invert of epsilon. For instance, epsilon = 10 will round to 1/10 = 0.1

Here is the caller graph for this function:

splitWithSpaces()

QStringList QET::splitWithSpaces

(

const QString &

string

)

Parameters

string

Une chaine de caracteres contenant des sous-chaines a extraire separees par des espaces non echappes. Les espaces des sous-chaines sont echappes.

Returns

La liste des sous-chaines, sans echappement.

Here is the call graph for this function:

Here is the caller graph for this function:

stringToFileName()

QString QET::stringToFileName

(

const QString &

name

)

Cette fonction transforme une chaine de caracteres (typiquement : un nom de schema, de projet, d'element) en un nom de fichier potable. Par nom de fichier potable, on entend un nom : ne comprenant pas de caracteres interdits sous Windows ne comprenant pas d'espace

Parameters

name	Chaine de caractere a transformer en nom de fichier potable

Todo:

virer les caracteres accentues ?

Here is the call graph for this function:

Here is the caller graph for this function:

unescapeSpaces()

QString QET::unescapeSpaces

(

const QString &

string

)

Parameters

string

une chaine de caracteres

Returns

la meme chaine de caracteres, mais avec les espaces et backslashes non echappes

Here is the caller graph for this function:

writeToFile()

bool QET::writeToFile	(	QDomDocument &	xml_doc,
		QFile *	file,
		QString *	error_message = nullptr
	)

Here is the caller graph for this function:

writeXmlFile()

bool QET::writeXmlFile	(	QDomDocument &	xml_doc,
		const QString &	filepath,
		QString *	error_message = nullptr
	)

Export an XML document to an UTF-8 text file indented with 4 spaces, with LF end of lines and no BOM.

Parameters

xml_doc	An XML document to be exported
filepath	Path to the file to be written
error_message	If non-zero, will contain an error message explaining what happened when this function returns false.

Returns

false if an error occurred, true otherwise

Here is the caller graph for this function:
