ElementPrimitiveDecorator Class Reference

#include <elementprimitivedecorator.h>

Inherits QGraphicsObject.

Collaboration diagram for ElementPrimitiveDecorator:

Public Types
enum	{ Type = UserType + 2200 }

Public Slots
void	adjust ()

Signals
void	actionFinished (ElementEditionCommand *)

Public Member Functions
	ElementPrimitiveDecorator (QGraphicsItem *=nullptr)
	~ElementPrimitiveDecorator () override
QRectF	internalBoundingRect () const
QRectF	boundingRect () const override
void	paint (QPainter *, const QStyleOptionGraphicsItem *, QWidget *=nullptr) override
	ElementPrimitiveDecorator::paint Paint the contents of an item in local coordinates, using painter, with respect to option and.
int	type () const override
void	setItems (const QList< QGraphicsItem * > &)
void	setItems (const QList< CustomElementPart * > &)
QList< CustomElementPart * >	items () const
QList< QGraphicsItem * >	graphicsItems () const

Protected Member Functions
void	mousePressEvent (QGraphicsSceneMouseEvent *) override
void	mouseMoveEvent (QGraphicsSceneMouseEvent *) override
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *) override
void	keyPressEvent (QKeyEvent *) override
	ElementPrimitiveDecorator::keyPressEvent.
void	keyReleaseEvent (QKeyEvent *) override
	ElementPrimitiveDecorator::keyReleaseEvent.
QPointF	deltaForRoundScaling (const QRectF &, const QRectF &, qreal)
QPointF	snapConstPointToGrid (const QPointF &) const
void	snapPointToGrid (QPointF &) const
bool	mustSnapToGrid (QGraphicsSceneMouseEvent *)
QET::ScalingMethod	scalingMethod (QGraphicsSceneMouseEvent *)
QVariant	itemChange (GraphicsItemChange change, const QVariant &value) override
	ElementPrimitiveDecorator::itemChange.
bool	sceneEventFilter (QGraphicsItem *watched, QEvent *event) override
	ElementPrimitiveDecorator::sceneEventFilter.

Private Member Functions
void	init ()
void	saveOriginalBoundingRect ()
void	adjustEffectiveBoundingRect ()
void	startMovement ()
void	applyMovementToRect (int, const QPointF &, QRectF &)
CustomElementPart *	singleItem () const
void	translateItems (const QPointF &)
void	scaleItems (const QRectF &, const QRectF &)
QRectF	getSceneBoundingRect (QGraphicsItem *) const
QVector< QPointF >	getResizingsPoints () const
void	adjusteHandlerPos ()
	ElementPrimitiveDecorator::adjusteHandlerPos.
void	handlerMousePressEvent (QetGraphicsHandlerItem *qghi, QGraphicsSceneMouseEvent *event)
	ElementPrimitiveDecorator::handlerMousePressEvent.
void	handlerMouseMoveEvent (QetGraphicsHandlerItem *qghi, QGraphicsSceneMouseEvent *event)
	ElementPrimitiveDecorator::handlerMouseMoveEvent.
void	handlerMouseReleaseEvent (QetGraphicsHandlerItem *qghi, QGraphicsSceneMouseEvent *event)
	ElementPrimitiveDecorator::handlerMouseReleaseEvent.
void	addHandler ()
	ElementPrimitiveDecorator::addHandler Add handlers for this item.
void	removeHandler ()
	ElementPrimitiveDecorator::removeHandler Remove the handlers of this item.

Private Attributes
QList< CustomElementPart * >	decorated_items_
QRectF	effective_bounding_rect_
	actual, effective bounding rect – never shrinks
QRectF	original_bounding_rect_
	original bounding rect
QRectF	modified_bounding_rect_
	new bounding rect, after the user moved or resized items
int	current_operation_square_
int	grid_step_x_
	Grid horizontal step.
int	grid_step_y_
	Grid horizontal step.
QPointF	first_pos_
	First point involved within the current resizing operation.
QPointF	latest_pos_
	Latest point involved within the current resizing operation.
QPointF	mouse_offset_
	Offset between the mouse position and the point to be snapped to grid when moving selection.
bool	moving_by_keys_
	Whether we are currently moving our decorated items using the arrow keys.
QPointF	keys_movement_
	Movement applied to our decorated items using the arrow keys.
QVector< QetGraphicsHandlerItem * >	m_handler_vector
int	m_vector_index = -1

Detailed Description

This class represents a decorator rendered above selected items so users can manipulate (move, resize, ...) them.

The implementation considers four kinds of bounding rects:

• the actual, effective bounding rect as returned by the boundingRect() method
• the original bounding rect, i.e. the rect containing all selected items at the beginning of operations (or after a command object was generated)
• the new bounding rect, after the user moved or resized items
• the former bounding rect, due to implementation details

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

ElementPrimitiveDecorator()

ElementPrimitiveDecorator::ElementPrimitiveDecorator

(

QGraphicsItem *

parent = nullptr

)

Constructor

Parameters

parent

Parent QGraphicsItem

Here is the call graph for this function:

~ElementPrimitiveDecorator()

ElementPrimitiveDecorator::~ElementPrimitiveDecorator ( )

override

Destructor

Here is the call graph for this function:

Member Function Documentation

actionFinished

void ElementPrimitiveDecorator::actionFinished ( ElementEditionCommand *  )

signal

Here is the caller graph for this function:

addHandler()

void ElementPrimitiveDecorator::addHandler ( )

private

ElementPrimitiveDecorator::addHandler Add handlers for this item.

Here is the call graph for this function:

Here is the caller graph for this function:

adjust

void ElementPrimitiveDecorator::adjust ( )

slot

Adjust the visual decorator according to the currently assigned items. It is notably called by setItems().

Here is the call graph for this function:

Here is the caller graph for this function:

adjustEffectiveBoundingRect()

void ElementPrimitiveDecorator::adjustEffectiveBoundingRect ( )

private

Adjust the effective bounding rect. This method should be called after the modified_bounding_rect_ attribute was modified.

Here is the call graph for this function:

Here is the caller graph for this function:

adjusteHandlerPos()

void ElementPrimitiveDecorator::adjusteHandlerPos ( )

private

ElementPrimitiveDecorator::adjusteHandlerPos.

Here is the call graph for this function:

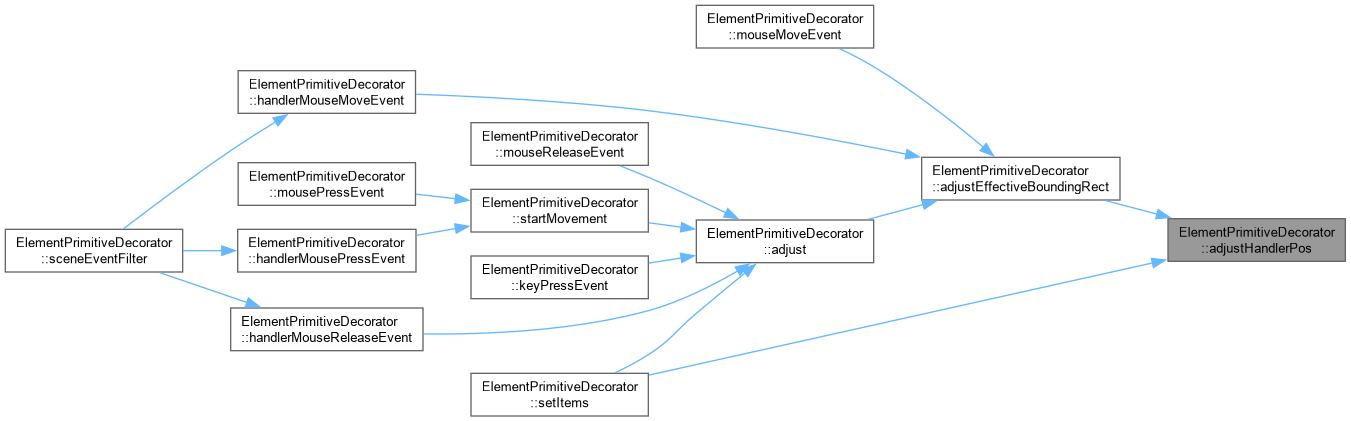

Here is the caller graph for this function:

applyMovementToRect()

void ElementPrimitiveDecorator::applyMovementToRect ( int  movement_type, const QPointF &  movement, QRectF &  rect  )

private

Apply the movement described by movement_type and movement to rect.

Here is the caller graph for this function:

boundingRect()

QRectF ElementPrimitiveDecorator::boundingRect ( ) const

override

Returns

the outer bounds of the decorator as a rectangle.

Here is the caller graph for this function:

deltaForRoundScaling()

QPointF ElementPrimitiveDecorator::deltaForRoundScaling ( const QRectF &  original, const QRectF &  current, qreal  epsilon  )

protected

Receive two rects, assuming they share a common corner and current is a scaled version of original. Calculate the scale ratios implied by this assumption, round them to the nearest multiple of epsilon, then return the horizontal and vertical offsets to be applied in order to pass from current to original scaled by the rounded factors. This method can be used to adjust a mouse movement so that it inputs a round scaling operation.

Here is the call graph for this function:

Here is the caller graph for this function:

getResizingsPoints()

QVector< QPointF > ElementPrimitiveDecorator::getResizingsPoints ( ) const

private

Here is the caller graph for this function:

getSceneBoundingRect()

QRectF ElementPrimitiveDecorator::getSceneBoundingRect ( QGraphicsItem *  item ) const

private

Returns

the bounding rectangle of item, in scene coordinates

Here is the call graph for this function:

Here is the caller graph for this function:

graphicsItems()

QList< QGraphicsItem * > ElementPrimitiveDecorator::graphicsItems

(

)

const

Returns

the list of items this decorator is supposed to manipulate

Here is the caller graph for this function:

handlerMouseMoveEvent()

void ElementPrimitiveDecorator::handlerMouseMoveEvent ( QetGraphicsHandlerItem *  qghi, QGraphicsSceneMouseEvent *  event  )

private

ElementPrimitiveDecorator::handlerMouseMoveEvent.

Parameters

qghi
event

Here is the call graph for this function:

Here is the caller graph for this function:

handlerMousePressEvent()

void ElementPrimitiveDecorator::handlerMousePressEvent ( QetGraphicsHandlerItem *  qghi, QGraphicsSceneMouseEvent *  event  )

private

ElementPrimitiveDecorator::handlerMousePressEvent.

Parameters

qghi
event

Here is the call graph for this function:

Here is the caller graph for this function:

handlerMouseReleaseEvent()

void ElementPrimitiveDecorator::handlerMouseReleaseEvent ( QetGraphicsHandlerItem *  qghi, QGraphicsSceneMouseEvent *  event  )

private

ElementPrimitiveDecorator::handlerMouseReleaseEvent.

Parameters

qghi
event

Here is the call graph for this function:

Here is the caller graph for this function:

init()

void ElementPrimitiveDecorator::init ( )

private

Initialize an ElementPrimitiveDecorator

Here is the caller graph for this function:

internalBoundingRect()

QRectF ElementPrimitiveDecorator::internalBoundingRect

(

)

const

Returns

the internal bounding rect, i.e. the smallest rectangle containing the bounding rectangle of every selected item.

Here is the call graph for this function:

Here is the caller graph for this function:

itemChange()

QVariant ElementPrimitiveDecorator::itemChange ( GraphicsItemChange  change, const QVariant &  value  )

overrideprotected

ElementPrimitiveDecorator::itemChange.

Parameters

change
value

Returns

Here is the call graph for this function:

items()

QList< CustomElementPart * > ElementPrimitiveDecorator::items

(

)

const

Returns

the list of items this decorator is supposed to manipulate

Here is the caller graph for this function:

keyPressEvent()

void ElementPrimitiveDecorator::keyPressEvent ( QKeyEvent *  e )

overrideprotected

ElementPrimitiveDecorator::keyPressEvent.

Parameters

e

See also

QGraphicsItem::keyPressEvent

Here is the call graph for this function:

keyReleaseEvent()

void ElementPrimitiveDecorator::keyReleaseEvent ( QKeyEvent *  e )

overrideprotected

ElementPrimitiveDecorator::keyReleaseEvent.

Parameters

e

See also

QGraphicsItem::keyReleaseEvent

Here is the call graph for this function:

mouseMoveEvent()

void ElementPrimitiveDecorator::mouseMoveEvent ( QGraphicsSceneMouseEvent *  event )

overrideprotected

Handle event generated when the mouse is moved and the decorator is the mouse grabber item.

Parameters

event

Object describing the mouse event

See also

QGraphicsScene::mouseGrabberItem()

Here is the call graph for this function:

mousePressEvent()

void ElementPrimitiveDecorator::mousePressEvent ( QGraphicsSceneMouseEvent *  event )

overrideprotected

Handle event generated when mouse buttons are pressed.

Parameters

event

Object describing the mouse event

Here is the call graph for this function:

mouseReleaseEvent()

void ElementPrimitiveDecorator::mouseReleaseEvent ( QGraphicsSceneMouseEvent *  event )

overrideprotected

Handle event generated when a mouse buttons are releaseis moved and the decorator is the mouse grabber item.

Parameters

event

Object describing the mouse event

See also

QGraphicsScene::mouseGrabberItem()

Here is the call graph for this function:

mustSnapToGrid()

bool ElementPrimitiveDecorator::mustSnapToGrid ( QGraphicsSceneMouseEvent *  event )

protected

Returns

whether the current operation should take the grid into account according to the state of the provided event

Here is the caller graph for this function:

paint()

void ElementPrimitiveDecorator::paint ( QPainter *  painter, const QStyleOptionGraphicsItem *  option, QWidget *  widget = nullptr  )

override

ElementPrimitiveDecorator::paint Paint the contents of an item in local coordinates, using painter, with respect to option and.

Parameters

painter	:
option	: The option parameter provides style options for the item, such as its state, exposed area and its level-of-detail hints.
widget	: The widget argument is optional. If provided, it points to the widget that is being painted on; otherwise, it is 0. For cached painting, widget is always 0.

removeHandler()

void ElementPrimitiveDecorator::removeHandler ( )

private

ElementPrimitiveDecorator::removeHandler Remove the handlers of this item.

Here is the caller graph for this function:

saveOriginalBoundingRect()

void ElementPrimitiveDecorator::saveOriginalBoundingRect ( )

private

Save the original bounding rectangle.

Here is the call graph for this function:

Here is the caller graph for this function:

scaleItems()

void ElementPrimitiveDecorator::scaleItems ( const QRectF &  original_rect, const QRectF &  new_rect  )

private

Scale the managed items, provided they originally fit within original_rect and they should now fit new_rect

Here is the caller graph for this function:

scalingMethod()

QET::ScalingMethod ElementPrimitiveDecorator::scalingMethod ( QGraphicsSceneMouseEvent *  event )

protected

Parameters

event

Mouse event during the scale operations – simply passed to mustSnapToGrid()

Returns

the scaling method to be used for the currently decorated items.

See also

QET::ScalingMethod

mustSnapToGrid()

Here is the call graph for this function:

Here is the caller graph for this function:

sceneEventFilter()

bool ElementPrimitiveDecorator::sceneEventFilter ( QGraphicsItem *  watched, QEvent *  event  )

overrideprotected

ElementPrimitiveDecorator::sceneEventFilter.

Parameters

watched
event

Returns

Here is the call graph for this function:

setItems() [1/2]

void ElementPrimitiveDecorator::setItems

(

const QList< CustomElementPart * > &

items

)

Parameters

items

the new list of items this decorator is suposed to manipulate.

Here is the call graph for this function:

setItems() [2/2]

void ElementPrimitiveDecorator::setItems

(

const QList< QGraphicsItem * > &

items

)

Parameters

items

the new list of items this decorator is suposed to manipulate.

Here is the call graph for this function:

Here is the caller graph for this function:

singleItem()

CustomElementPart * ElementPrimitiveDecorator::singleItem ( ) const

private

Here is the caller graph for this function:

snapConstPointToGrid()

QPointF ElementPrimitiveDecorator::snapConstPointToGrid ( const QPointF &  point ) const

protected

Round the coordinates of point so it is snapped to the grid defined by the grid_step_x_ and grid_step_y_ attributes.

Here is the caller graph for this function:

snapPointToGrid()

void ElementPrimitiveDecorator::snapPointToGrid ( QPointF &  point ) const

protected

Round the coordinates of point so it is snapped to the grid defined by the grid_step_x_ and grid_step_y_ attributes.

startMovement()

void ElementPrimitiveDecorator::startMovement ( )

private

Start a movement (i.e. either a move or scaling operation)

Here is the call graph for this function:

Here is the caller graph for this function:

translateItems()

void ElementPrimitiveDecorator::translateItems ( const QPointF &  movement )

private

Translated the managed items by the movement

Here is the call graph for this function:

Here is the caller graph for this function:

type()

int ElementPrimitiveDecorator::type ( ) const

inlineoverride

Member Data Documentation

current_operation_square_

int ElementPrimitiveDecorator::current_operation_square_

private

Index of the square leading the current operation (resizing, etc.) or -1 if no operation is occurring, -2 for a move operation.

decorated_items_

QList<CustomElementPart *> ElementPrimitiveDecorator::decorated_items_

private

effective_bounding_rect_

QRectF ElementPrimitiveDecorator::effective_bounding_rect_

private

actual, effective bounding rect – never shrinks

first_pos_

QPointF ElementPrimitiveDecorator::first_pos_

private

First point involved within the current resizing operation.

grid_step_x_

int ElementPrimitiveDecorator::grid_step_x_

private

Grid horizontal step.

grid_step_y_

int ElementPrimitiveDecorator::grid_step_y_

private

Grid horizontal step.

keys_movement_

QPointF ElementPrimitiveDecorator::keys_movement_

private

Movement applied to our decorated items using the arrow keys.

latest_pos_

QPointF ElementPrimitiveDecorator::latest_pos_

private

Latest point involved within the current resizing operation.

m_handler_vector

QVector<QetGraphicsHandlerItem *> ElementPrimitiveDecorator::m_handler_vector

private

m_vector_index

int ElementPrimitiveDecorator::m_vector_index = -1

private

modified_bounding_rect_

QRectF ElementPrimitiveDecorator::modified_bounding_rect_

private

new bounding rect, after the user moved or resized items

mouse_offset_

QPointF ElementPrimitiveDecorator::mouse_offset_

private

Offset between the mouse position and the point to be snapped to grid when moving selection.

moving_by_keys_

bool ElementPrimitiveDecorator::moving_by_keys_

private

Whether we are currently moving our decorated items using the arrow keys.

original_bounding_rect_

QRectF ElementPrimitiveDecorator::original_bounding_rect_

private

original bounding rect

---

The documentation for this class was generated from the following files:

• sources/editor/elementprimitivedecorator.h
• sources/editor/elementprimitivedecorator.cpp
