ElementScene Class Reference

The ElementScene class This class is the canvas allowing the visual edition of an electrical element. It displays the various primitives composing the drawing of the element, the border due to its fixed size and its hotspot. More...

#include <elementscene.h>

Inherits QGraphicsScene.

Collaboration diagram for ElementScene:

Public Types
enum	Behavior { Normal , PasteArea , AddPart }
enum	ItemOption {   SortByZValue = 1 , IncludeTerminals = 2 , IncludeHelperItems = 4 , Selected = 8 ,   NonSelected = 16 , SelectedOrNot = 24 }

Public Slots
void	slot_select (const ElementContent &)
	ElementScene::slot_select Select the item in content, every others items in the scene are deselected.
void	slot_selectAll ()
	ElementScene::slot_selectAll Select all items.
void	slot_deselectAll ()
	ElementScene::slot_deselectAll deselect all item.
void	slot_invertSelection ()
	ElementScene::slot_invertSelection Inverse Selection.
void	slot_delete ()
	ElementScene::slot_delete Delete selected items.
void	slot_editNames ()
	ElementScene::slot_editNames Launch a dialog for edit the names of the edited element.
void	slot_editAuthorInformations ()
	ElementScene::slot_editAuthorInformations Starts a dialog to edit the additional information of this element. Concretely, this free field is intended to receive information on the author of the element, its license, etc.
void	slot_editProperties ()
	ElementScene::slot_editProperties Open dialog to edit the element properties.
void	managePrimitivesGroups ()
	ElementScene::managePrimitivesGroups Ensure the decorator is adequately shown, hidden or updated so it always represents the current selection.
void	stackAction (ElementEditionCommand *)
	ElementScene::stackAction Push the provided command on the undo stack.

Signals
void	partsAdded ()
	Signal emitted after one or several parts were added.
void	partsRemoved ()
	Signal emitted after one or several parts were removed.
void	partsZValueChanged ()
	Signal emitted when the zValue of one or several parts change.
void	pasteAreaDefined (const QRectF &)
	Signal emitted when users have defined the copy/paste area.
void	needZoomFit ()
	Signal emitted when need zoomFit.
void	elementInfoChanged ()

Public Member Functions
	ElementScene (QETElementEditor *, QObject *=nullptr)
	ElementScene::ElementScene constructor.
	~ElementScene () override
	ElementScene::~ElementScene.
ElementData	elementData ()
	ElementScene::elementData.
void	setElementData (ElementData data)
void	setEventInterface (ESEventInterface *event_interface)
	ElementScene::setEventInterface Set a new event interface.
void	clearEventInterface ()
	ElementScene::clearEventInterface Clear the current event interface.
void	setBehavior (ElementScene::Behavior)
	ElementScene::setBehavior Modify the current behavior of this scene.
ElementScene::Behavior	behavior () const
QPointF	snapToGrid (QPointF point)
	ElementScene::snapToGrid Rounds the coordinates of the point passed as a parameter so that this point is aligned with the grid.
virtual int	xGrid () const
	ElementScene::xGrid.
virtual int	yGrid () const
	ElementScene::yGrid.
virtual void	setGrid (int, int)
	ElementScene::setGrid.
virtual const QDomDocument	toXml (bool=true)
	ElementScene::toXml Export this element as a xml file.
virtual QRectF	boundingRectFromXml (const QDomDocument &)
	ElementScene::boundingRectFromXml.
virtual void	fromXml (const QDomDocument &, const QPointF &=QPointF(), bool=true, ElementContent *=nullptr)
	ElementScene::fromXml Imports the element described in an XML document. If a position is specified, the imported elements are positioned in such a way that the upper left corner of the smallest rectangle that can surround them all (the bounding rect) either at this position.
virtual void	reset ()
	ElementScene::reset Remove all QGraphicsItems in the scene and clear the undo stack.
virtual QList< CustomElementPart * >	primitives () const
	ElementScene::primitives.
virtual QList< QGraphicsItem * >	zItems (ItemOptions options=ItemOptions(SortByZValue|IncludeTerminals|SelectedOrNot)) const
	ElementScene::zItems.
virtual ElementContent	selectedContent () const
	ElementScene::selectedContent.
virtual void	getPasteArea (const QRectF &)
	ElementScene::getPasteArea.
QRectF	elementSceneGeometricRect () const
	ElementScene::elementSceneGeometricRect.
bool	containsTerminals () const
	ElementScene::containsTerminals.
QUndoStack &	undoStack ()
	ElementScene::undoStack.
QGIManager &	qgiManager ()
	ElementScene::qgiManager.
bool	wasCopiedFromThisElement (const QString &)
	ElementScene::wasCopiedFromThisElement.
void	cut ()
	ElementScene::cut Handles the fact of cutting the selection = exporting it in XML to the clipboard then deleting it.
void	copy ()
	ElementScene::copy Handles the fact of copying the selection = exporting it as XML to the clipboard.
QETElementEditor *	editor () const
	ElementScene::editor.
void	addItems (QVector< QGraphicsItem * > items)
	ElementScene::addItems Add items to the scene and emit partsAdded. Prefer always use this method instead of QGraphicsScene::addItem even if you want to add one item, for gain the signal emission.
void	removeItems (QVector< QGraphicsItem * > items)
	ElementScene::removeItems Remove items from the scene and emit partsRemoved. Prefer always use this method instead of QGraphicsScene::removeItem even if you want to remove one item, for gain the signal emission.

Static Public Member Functions
static bool	clipboardMayContainElement ()
	ElementScene::clipboardMayContainElement.

Protected Member Functions
void	mouseMoveEvent (QGraphicsSceneMouseEvent *) override
	ElementScene::mouseMoveEvent.
void	mousePressEvent (QGraphicsSceneMouseEvent *) override
	ElementScene::mousePressEvent.
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *) override
	ElementScene::mouseReleaseEvent.
void	mouseDoubleClickEvent (QGraphicsSceneMouseEvent *event) override
	ElementScene::mouseDoubleClickEvent.
void	keyPressEvent (QKeyEvent *event) override
	ElementScene::keyPressEvent manage key press event.
void	contextMenuEvent (QGraphicsSceneContextMenuEvent *event) override
	ElementScene::contextMenuEvent Display the context menu event, only if behavior are Normal.
void	drawForeground (QPainter *, const QRectF &) override
	ElementScene::drawForeground Draws the background of the editor, ie the hotspot indicator.

Private Member Functions
	ElementScene (const ElementScene &)
QRectF	elementContentBoundingRect (const ElementContent &) const
	ElementScene::elementContentBoundingRect.
ElementContent	loadContent (const QDomDocument &)
	ElementScene::loadContent Create and load the content describe in the xml document.
ElementContent	addContent (const ElementContent &)
	ElementScene::addContent Add content content to this element.
ElementContent	addContentAtPos (const ElementContent &, const QPointF &)
	ElementScene::addContentAtPos Add content content to this element.
void	addPrimitive (QGraphicsItem *)
	ElementScene::addPrimitive Add a primitive to the scene by wrapping it within an ElementPrimitiveDecorator group.
void	initPasteArea ()
	ElementScene::initPasteArea Initializes the paste area.
void	centerElementToOrigine ()
	ElementScene::centerElementToOrigine try to center better is possible the element to the scene (the calcul isn't optimal but work good)

Static Private Member Functions
static bool	zValueLessThan (QGraphicsItem *, QGraphicsItem *)
	ElementScene::zValueLessThan.

Private Attributes
ElementData	m_element_data
QGIManager	m_qgi_manager
	ElementData. Actually in transition with old data storage.
QUndoStack	m_undo_stack
ESEventInterface *	m_event_interface = nullptr
Behavior	m_behavior
QETElementEditor *	m_element_editor = nullptr
QGraphicsRectItem *	m_paste_area
QRectF	m_defined_paste_area
QString	m_last_copied
ElementPrimitiveDecorator *	m_decorator = nullptr
	Decorator item displayed when at least one item is selected.
int	m_x_grid
int	m_y_grid
QPointer< CustomElementGraphicPart >	m_single_selected_item
QMutex *	m_decorator_lock

Friends
class	ChangePropertiesCommand

Detailed Description

The ElementScene class This class is the canvas allowing the visual edition of an electrical element. It displays the various primitives composing the drawing of the element, the border due to its fixed size and its hotspot.

For add and remove item prefer use custom method addItems and removeItems instead of addItem and removeItem, because these methods emit signal partAdded and partRemoved.

Member Enumeration Documentation

Behavior

enum ElementScene::Behavior

Enumerator
Normal
PasteArea
AddPart

ItemOption

enum ElementScene::ItemOption

Enumerator
SortByZValue
IncludeTerminals
IncludeHelperItems
Selected
NonSelected
SelectedOrNot

Constructor & Destructor Documentation

ElementScene() [1/2]

ElementScene::ElementScene	(	QETElementEditor *	editor,
		QObject *	parent = nullptr
	)

ElementScene::ElementScene constructor.

Parameters

editor	: Element editor concerned
parent	: Widget parent

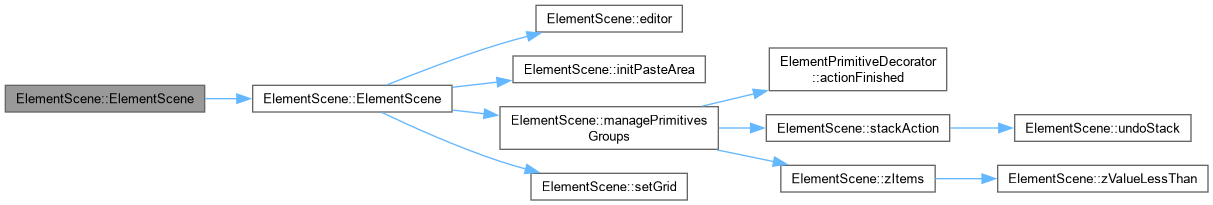

Here is the call graph for this function:

~ElementScene()

ElementScene::~ElementScene ( )

override

ElementScene::~ElementScene.

Here is the call graph for this function:

ElementScene() [2/2]

ElementScene::ElementScene ( const ElementScene &  )

private

Member Function Documentation

addContent()

ElementContent ElementScene::addContent ( const ElementContent &  content )

private

ElementScene::addContent Add content content to this element.

Parameters

content

: content (= list of parts) to load

Returns

Content adds

Here is the call graph for this function:

Here is the caller graph for this function:

addContentAtPos()

ElementContent ElementScene::addContentAtPos ( const ElementContent &  content, const QPointF &  pos  )

private

ElementScene::addContentAtPos Add content content to this element.

Parameters

content	: content (= list of parts) to load
pos	: Position of the upper left corner of the content after being added

Returns

Content adds

Here is the call graph for this function:

Here is the caller graph for this function:

addItems()

void ElementScene::addItems

(

QVector< QGraphicsItem * >

items

)

ElementScene::addItems Add items to the scene and emit partsAdded. Prefer always use this method instead of QGraphicsScene::addItem even if you want to add one item, for gain the signal emission.

Parameters

items

Here is the call graph for this function:

addPrimitive()

void ElementScene::addPrimitive ( QGraphicsItem *  primitive )

private

ElementScene::addPrimitive Add a primitive to the scene by wrapping it within an ElementPrimitiveDecorator group.

Parameters

primitive

Here is the caller graph for this function:

behavior()

ElementScene::Behavior ElementScene::behavior

(

)

const

boundingRectFromXml()

QRectF ElementScene::boundingRectFromXml ( const QDomDocument &  xml_document )

virtual

ElementScene::boundingRectFromXml.

Parameters

xml_document

: an XML document describing an element

Returns

the boundingRect of the element's content

Here is the call graph for this function:

centerElementToOrigine()

void ElementScene::centerElementToOrigine ( )

private

ElementScene::centerElementToOrigine try to center better is possible the element to the scene (the calcul isn't optimal but work good)

Here is the call graph for this function:

Here is the caller graph for this function:

clearEventInterface()

void ElementScene::clearEventInterface

(

)

ElementScene::clearEventInterface Clear the current event interface.

clipboardMayContainElement()

bool ElementScene::clipboardMayContainElement ( )

static

ElementScene::clipboardMayContainElement.

Returns

true if the clipboard appears to contain an element

Here is the caller graph for this function:

containsTerminals()

bool ElementScene::containsTerminals

(

)

const

ElementScene::containsTerminals.

Returns

true if the element has at least one terminal, false if it has none.

contextMenuEvent()

void ElementScene::contextMenuEvent ( QGraphicsSceneContextMenuEvent *  event )

overrideprotected

ElementScene::contextMenuEvent Display the context menu event, only if behavior are Normal.

Parameters

event

copy()

void ElementScene::copy

(

)

ElementScene::copy Handles the fact of copying the selection = exporting it as XML to the clipboard.

Here is the call graph for this function:

Here is the caller graph for this function:

cut()

void ElementScene::cut

(

)

ElementScene::cut Handles the fact of cutting the selection = exporting it in XML to the clipboard then deleting it.

Here is the call graph for this function:

drawForeground()

void ElementScene::drawForeground ( QPainter *  p, const QRectF &    )

overrideprotected

ElementScene::drawForeground Draws the background of the editor, ie the hotspot indicator.

Parameters

p	: The QPainter to use for drawing

editor()

QETElementEditor * ElementScene::editor

(

)

const

ElementScene::editor.

Returns

Here is the caller graph for this function:

elementContentBoundingRect()

QRectF ElementScene::elementContentBoundingRect ( const ElementContent &  content ) const

private

ElementScene::elementContentBoundingRect.

Parameters

content

: Content (= parts) of an element

Returns

the boundingRect of these parts, expressed in the coordinates of the scene

Here is the caller graph for this function:

elementData()

ElementData ElementScene::elementData

(

)

ElementScene::elementData.

Returns

the elementdata using by the scene

Here is the caller graph for this function:

elementInfoChanged

void ElementScene::elementInfoChanged ( )

signal

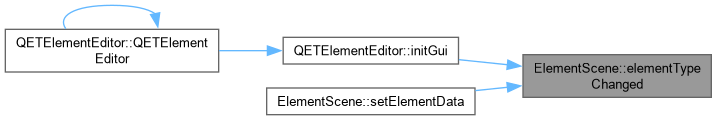

Here is the caller graph for this function:

elementSceneGeometricRect()

QRectF ElementScene::elementSceneGeometricRect

(

)

const

ElementScene::elementSceneGeometricRect.

Returns

the minimum, margin-less rectangle the element can fit into, in scene coordinates. It is different from itemsBoundingRect() because it is not supposed to imply any margin.

Here is the caller graph for this function:

fromXml()

void ElementScene::fromXml ( const QDomDocument &  xml_document, const QPointF &  position = QPointF(), bool  consider_informations = true, ElementContent *  content_ptr = nullptr  )

virtual

ElementScene::fromXml Imports the element described in an XML document. If a position is specified, the imported elements are positioned in such a way that the upper left corner of the smallest rectangle that can surround them all (the bounding rect) either at this position.

Parameters

xml_document	: an XML document describing the element
position	: The position of the imported parts
consider_informations	: If true, additional information (dimensions, hotspot, etc.) will be taken into account
content_ptr	: if this pointer to an ElementContent is different from 0, it will be filled with the content added to the element by the fromXml

Here is the call graph for this function:

getPasteArea()

void ElementScene::getPasteArea ( const QRectF &  to_paste )

virtual

ElementScene::getPasteArea.

Parameters

to_paste

: Rectangle enclosing the parts to be glued

Returns

the rectangle where you will have to glue these parts

initPasteArea()

void ElementScene::initPasteArea ( )

private

ElementScene::initPasteArea Initializes the paste area.

Here is the caller graph for this function:

keyPressEvent()

void ElementScene::keyPressEvent ( QKeyEvent *  event )

overrideprotected

ElementScene::keyPressEvent manage key press event.

Parameters

event

Here is the call graph for this function:

Here is the caller graph for this function:

loadContent()

ElementContent ElementScene::loadContent ( const QDomDocument &  xml_document )

private

ElementScene::loadContent Create and load the content describe in the xml document.

Parameters

xml_document

: xml dom document to analyze

Returns

the loaded content

Here is the call graph for this function:

Here is the caller graph for this function:

managePrimitivesGroups

void ElementScene::managePrimitivesGroups ( )

slot

ElementScene::managePrimitivesGroups Ensure the decorator is adequately shown, hidden or updated so it always represents the current selection.

Here is the call graph for this function:

Here is the caller graph for this function:

mouseDoubleClickEvent()

void ElementScene::mouseDoubleClickEvent ( QGraphicsSceneMouseEvent *  event )

overrideprotected

ElementScene::mouseDoubleClickEvent.

Parameters

event

Here is the call graph for this function:

Here is the caller graph for this function:

mouseMoveEvent()

void ElementScene::mouseMoveEvent ( QGraphicsSceneMouseEvent *  e )

overrideprotected

ElementScene::mouseMoveEvent.

Parameters

e

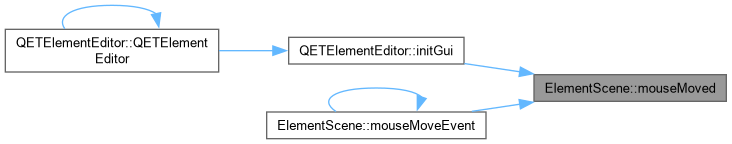

Here is the call graph for this function:

Here is the caller graph for this function:

mousePressEvent()

void ElementScene::mousePressEvent ( QGraphicsSceneMouseEvent *  e )

overrideprotected

ElementScene::mousePressEvent.

Parameters

e

Here is the call graph for this function:

Here is the caller graph for this function:

mouseReleaseEvent()

void ElementScene::mouseReleaseEvent ( QGraphicsSceneMouseEvent *  e )

overrideprotected

ElementScene::mouseReleaseEvent.

Parameters

e

Here is the call graph for this function:

Here is the caller graph for this function:

needZoomFit

void ElementScene::needZoomFit ( )

signal

Signal emitted when need zoomFit.

Here is the caller graph for this function:

partsAdded

void ElementScene::partsAdded ( )

signal

Signal emitted after one or several parts were added.

Here is the caller graph for this function:

partsRemoved

void ElementScene::partsRemoved ( )

signal

Signal emitted after one or several parts were removed.

Here is the caller graph for this function:

partsZValueChanged

void ElementScene::partsZValueChanged ( )

signal

Signal emitted when the zValue of one or several parts change.

Here is the caller graph for this function:

pasteAreaDefined

void ElementScene::pasteAreaDefined ( const QRectF &  )

signal

Signal emitted when users have defined the copy/paste area.

Here is the caller graph for this function:

primitives()

QList< CustomElementPart * > ElementScene::primitives ( ) const

virtual

ElementScene::primitives.

Returns

the list of primitives currently present on the scene.

qgiManager()

QGIManager & ElementScene::qgiManager

(

)

ElementScene::qgiManager.

Returns

the QGraphicsItem manager of this item editor

Here is the caller graph for this function:

removeItems()

void ElementScene::removeItems

(

QVector< QGraphicsItem * >

items

)

ElementScene::removeItems Remove items from the scene and emit partsRemoved. Prefer always use this method instead of QGraphicsScene::removeItem even if you want to remove one item, for gain the signal emission.

Parameters

items

Here is the call graph for this function:

reset()

void ElementScene::reset ( )

virtual

ElementScene::reset Remove all QGraphicsItems in the scene and clear the undo stack.

Here is the call graph for this function:

selectedContent()

ElementContent ElementScene::selectedContent ( ) const

virtual

ElementScene::selectedContent.

Returns

the selected graphic parts

Here is the call graph for this function:

setBehavior()

void ElementScene::setBehavior

(

ElementScene::Behavior

b

)

ElementScene::setBehavior Modify the current behavior of this scene.

Parameters

b

Here is the caller graph for this function:

setElementData()

void ElementScene::setElementData

(

ElementData

data

)

Here is the call graph for this function:

Here is the caller graph for this function:

setEventInterface()

void ElementScene::setEventInterface

(

ESEventInterface *

event_interface

)

ElementScene::setEventInterface Set a new event interface.

Parameters

event_interface

Here is the call graph for this function:

Here is the caller graph for this function:

setGrid()

void ElementScene::setGrid ( int  x_g, int  y_g  )

virtual

ElementScene::setGrid.

Parameters

x_g	: Horizontal grid size
y_g	: Vertical grid size

Here is the caller graph for this function:

slot_delete

void ElementScene::slot_delete ( )

slot

ElementScene::slot_delete Delete selected items.

Here is the caller graph for this function:

slot_deselectAll

void ElementScene::slot_deselectAll ( )

slot

ElementScene::slot_deselectAll deselect all item.

Here is the call graph for this function:

Here is the caller graph for this function:

slot_editAuthorInformations

void ElementScene::slot_editAuthorInformations ( )

slot

ElementScene::slot_editAuthorInformations Starts a dialog to edit the additional information of this element. Concretely, this free field is intended to receive information on the author of the element, its license, etc.

Here is the call graph for this function:

Here is the caller graph for this function:

slot_editNames

void ElementScene::slot_editNames ( )

slot

ElementScene::slot_editNames Launch a dialog for edit the names of the edited element.

Here is the call graph for this function:

Here is the caller graph for this function:

slot_editProperties

void ElementScene::slot_editProperties ( )

slot

ElementScene::slot_editProperties Open dialog to edit the element properties.

Here is the call graph for this function:

Here is the caller graph for this function:

slot_invertSelection

void ElementScene::slot_invertSelection ( )

slot

ElementScene::slot_invertSelection Inverse Selection.

Here is the caller graph for this function:

slot_select

void ElementScene::slot_select ( const ElementContent &  content )

slot

ElementScene::slot_select Select the item in content, every others items in the scene are deselected.

Parameters

content

Here is the caller graph for this function:

slot_selectAll

void ElementScene::slot_selectAll ( )

slot

ElementScene::slot_selectAll Select all items.

Here is the call graph for this function:

Here is the caller graph for this function:

snapToGrid()

QPointF ElementScene::snapToGrid

(

QPointF

point

)

ElementScene::snapToGrid Rounds the coordinates of the point passed as a parameter so that this point is aligned with the grid.

Parameters

point

: a reference to a QPointF. This object will be modified.

Returns

point

Here is the caller graph for this function:

stackAction

void ElementScene::stackAction ( ElementEditionCommand *  command )

slot

ElementScene::stackAction Push the provided command on the undo stack.

Parameters

command

Here is the call graph for this function:

Here is the caller graph for this function:

toXml()

const QDomDocument ElementScene::toXml ( bool  all_parts = true )

virtual

ElementScene::toXml Export this element as a xml file.

Parameters

all_parts

: (true by default) if true, export the entire element in xml, if false, only export the selected parts.

Returns

an xml document that describe the element.

Here is the call graph for this function:

Here is the caller graph for this function:

undoStack()

QUndoStack & ElementScene::undoStack

(

)

ElementScene::undoStack.

Returns

the undo stack of this element editor

Here is the caller graph for this function:

wasCopiedFromThisElement()

bool ElementScene::wasCopiedFromThisElement

(

const QString &

clipboard_content

)

ElementScene::wasCopiedFromThisElement.

Parameters

clipboard_content

: character string, probably coming from the clipboard.

Returns

true if clipboard_content has been copied from this element.

xGrid()

int ElementScene::xGrid ( ) const

virtual

ElementScene::xGrid.

Returns

the horizontal size of the grid

yGrid()

int ElementScene::yGrid ( ) const

virtual

ElementScene::yGrid.

Returns

vertical grid size

zItems()

QList< QGraphicsItem * > ElementScene::zItems ( ItemOptions  options = ItemOptions(SortByZValue  | IncludeTerminals  | SelectedOrNot) ) const

virtual

ElementScene::zItems.

Parameters

options

Returns

the parts of the element ordered by increasing zValue

Here is the call graph for this function:

Here is the caller graph for this function:

zValueLessThan()

bool ElementScene::zValueLessThan ( QGraphicsItem *  item1, QGraphicsItem *  item2  )

staticprivate

ElementScene::zValueLessThan.

Parameters

item1	: QGraphicsItem
item2	: QGraphicsItem

Returns

true if item1's zValue() is less than item2's.

Here is the caller graph for this function:

Friends And Related Symbol Documentation

ChangePropertiesCommand

friend class ChangePropertiesCommand

friend

Member Data Documentation

m_behavior

Behavior ElementScene::m_behavior

private

m_decorator

ElementPrimitiveDecorator* ElementScene::m_decorator = nullptr

private

Decorator item displayed when at least one item is selected.

m_decorator_lock

QMutex* ElementScene::m_decorator_lock

private

m_defined_paste_area

QRectF ElementScene::m_defined_paste_area

private

m_element_data

ElementData ElementScene::m_element_data

private

m_element_editor

QETElementEditor* ElementScene::m_element_editor = nullptr

private

m_event_interface

ESEventInterface* ElementScene::m_event_interface = nullptr

private

m_last_copied

QString ElementScene::m_last_copied

private

m_paste_area

QGraphicsRectItem* ElementScene::m_paste_area

private

m_qgi_manager

QGIManager ElementScene::m_qgi_manager

private

ElementData. Actually in transition with old data storage.

m_single_selected_item

QPointer<CustomElementGraphicPart> ElementScene::m_single_selected_item

private

m_undo_stack

QUndoStack ElementScene::m_undo_stack

private

m_x_grid

int ElementScene::m_x_grid

private

m_y_grid

int ElementScene::m_y_grid

private

---

The documentation for this class was generated from the following files:

• sources/editor/elementscene.h
• sources/editor/elementscene.cpp
