#include <partrectangle.h>

Inheritance diagram for PartRectangle:

Collaboration diagram for PartRectangle:

Public Types
enum	{ Type = UserType + 1109 }

Public Types inherited from CustomElementGraphicPart
enum	LineStyle { NormalStyle , DashedStyle , DottedStyle , DashdottedStyle }

enum	LineWeight { NoneWeight , ThinWeight , NormalWeight , UltraWeight , BigWeight }

enum	Filling { NoneFilling , BlackFilling , WhiteFilling , GreenFilling , RedFilling , BlueFilling , GrayFilling , BrunFilling , YellowFilling , CyanFilling , MagentaFilling , LightgrayFilling , OrangeFilling , PurpleFilling , HTMLPinkPinkFilling , HTMLPinkLightPinkFilling , HTMLPinkHotPinkFilling , HTMLPinkDeepPinkFilling , HTMLPinkPaleVioletRedFilling , HTMLPinkMediumVioletRedFilling , HTMLRedLightSalmonFilling , HTMLRedSalmonFilling , HTMLRedDarkSalmonFilling , HTMLRedLightCoralFilling , HTMLRedIndianRedFilling , HTMLRedCrimsonFilling , HTMLRedFirebrickFilling , HTMLRedDarkRedFilling , HTMLRedRedFilling , HTMLOrangeOrangeRedFilling , HTMLOrangeTomatoFilling , HTMLOrangeCoralFilling , HTMLOrangeDarkOrangeFilling , HTMLOrangeOrangeFilling , HTMLYellowYellowFilling , HTMLYellowLightYellowFilling , HTMLYellowLemonChiffonFilling , HTMLYellowLightGoldenrodYellowFilling , HTMLYellowPapayaWhipFilling , HTMLYellowMoccasinFilling , HTMLYellowPeachPuffFilling , HTMLYellowPaleGoldenrodFilling , HTMLYellowKhakiFilling , HTMLYellowDarkKhakiFilling , HTMLYellowGoldFilling , HTMLBrownCornsilkFilling , HTMLBrownBlanchedAlmondFilling , HTMLBrownBisqueFilling , HTMLBrownNavajoWhiteFilling , HTMLBrownWheatFilling , HTMLBrownBurlywoodFilling , HTMLBrownTanFilling , HTMLBrownRosyBrownFilling , HTMLBrownSandyBrownFilling , HTMLBrownGoldenrodFilling , HTMLBrownDarkGoldenrodFilling , HTMLBrownPeruFilling , HTMLBrownChocolateFilling , HTMLBrownSaddleBrownFilling , HTMLBrownSiennaFilling , HTMLBrownBrownFilling , HTMLBrownMaroonFilling , HTMLGreenDarkOliveGreenFilling , HTMLGreenOliveFilling , HTMLGreenOliveDrabFilling , HTMLGreenYellowGreenFilling , HTMLGreenLimeGreenFilling , HTMLGreenLimeFilling , HTMLGreenLawnGreenFilling , HTMLGreenChartreuseFilling , HTMLGreenGreenYellowFilling , HTMLGreenSpringGreenFilling , HTMLGreenMediumSpringGreenFilling , HTMLGreenLightGreenFilling , HTMLGreenPaleGreenFilling , HTMLGreenDarkSeaGreenFilling , HTMLGreenMediumAquamarineFilling , HTMLGreenMediumSeaGreenFilling , HTMLGreenSeaGreenFilling , HTMLGreenForestGreenFilling , HTMLGreenGreenFilling , HTMLGreenDarkGreenFilling , HTMLCyanAquaFilling , HTMLCyanCyanFilling , HTMLCyanLightCyanFilling , HTMLCyanPaleTurquoiseFilling , HTMLCyanAquamarineFilling , HTMLCyanTurquoiseFilling , HTMLCyanMediumTurquoiseFilling , HTMLCyanDarkTurquoiseFilling , HTMLCyanLightSeaGreenFilling , HTMLCyanCadetBlueFilling , HTMLCyanDarkCyanFilling , HTMLCyanTealFilling , HTMLBlueLightSteelBlueFilling , HTMLBluePowderBlueFilling , HTMLBlueLightBlueFilling , HTMLBlueSkyBlueFilling , HTMLBlueLightSkyBlueFilling , HTMLBlueDeepSkyBlueFilling , HTMLBlueDodgerBlueFilling , HTMLBlueCornflowerBlueFilling , HTMLBlueSteelBlueFilling , HTMLBlueRoyalBlueFilling , HTMLBlueBlueFilling , HTMLBlueMediumBlueFilling , HTMLBlueDarkBlueFilling , HTMLBlueNavyFilling , HTMLBlueMidnightBlueFilling , HTMLPurpleLavenderFilling , HTMLPurpleThistleFilling , HTMLPurplePlumFilling , HTMLPurpleVioletFilling , HTMLPurpleOrchidFilling , HTMLPurpleFuchsiaFilling , HTMLPurpleMagentaFilling , HTMLPurpleMediumOrchidFilling , HTMLPurpleMediumPurpleFilling , HTMLPurpleBlueVioletFilling , HTMLPurpleDarkVioletFilling , HTMLPurpleDarkOrchidFilling , HTMLPurpleDarkMagentaFilling , HTMLPurplePurpleFilling , HTMLPurpleIndigoFilling , HTMLPurpleDarkSlateBlueFilling , HTMLPurpleSlateBlueFilling , HTMLPurpleMediumSlateBlueFilling , HTMLWhiteWhiteFilling , HTMLWhiteSnowFilling , HTMLWhiteHoneydewFilling , HTMLWhiteMintCreamFilling , HTMLWhiteAzureFilling , HTMLWhiteAliceBlueFilling , HTMLWhiteGhostWhiteFilling , HTMLWhiteWhiteSmokeFilling , HTMLWhiteSeashellFilling , HTMLWhiteBeigeFilling , HTMLWhiteOldLaceFilling , HTMLWhiteFloralWhiteFilling , HTMLWhiteIvoryFilling , HTMLWhiteAntiqueWhiteFilling , HTMLWhiteLinenFilling , HTMLWhiteLavenderBlushFilling , HTMLWhiteMistyRoseFilling , HTMLGrayGainsboroFilling , HTMLGrayLightGrayFilling , HTMLGraySilverFilling , HTMLGrayDarkGrayFilling , HTMLGrayGrayFilling , HTMLGrayDimGrayFilling , HTMLGrayLightSlateGrayFilling , HTMLGraySlateGrayFilling , HTMLGrayDarkSlateGrayFilling , HTMLGrayBlackFilling , HorFilling , VerFilling , BdiagFilling , FdiagFilling }

enum	Color { BlackColor , WhiteColor , GreenColor , RedColor , BlueColor , GrayColor , BrunColor , YellowColor , CyanColor , MagentaColor , LightgrayColor , OrangeColor , PurpleColor , HTMLPinkPinkColor , HTMLPinkLightPinkColor , HTMLPinkHotPinkColor , HTMLPinkDeepPinkColor , HTMLPinkPaleVioletRedColor , HTMLPinkMediumVioletRedColor , HTMLRedLightSalmonColor , HTMLRedSalmonColor , HTMLRedDarkSalmonColor , HTMLRedLightCoralColor , HTMLRedIndianRedColor , HTMLRedCrimsonColor , HTMLRedFirebrickColor , HTMLRedDarkRedColor , HTMLRedRedColor , HTMLOrangeOrangeRedColor , HTMLOrangeTomatoColor , HTMLOrangeCoralColor , HTMLOrangeDarkOrangeColor , HTMLOrangeOrangeColor , HTMLYellowYellowColor , HTMLYellowLightYellowColor , HTMLYellowLemonChiffonColor , HTMLYellowLightGoldenrodYellowColor , HTMLYellowPapayaWhipColor , HTMLYellowMoccasinColor , HTMLYellowPeachPuffColor , HTMLYellowPaleGoldenrodColor , HTMLYellowKhakiColor , HTMLYellowDarkKhakiColor , HTMLYellowGoldColor , HTMLBrownCornsilkColor , HTMLBrownBlanchedAlmondColor , HTMLBrownBisqueColor , HTMLBrownNavajoWhiteColor , HTMLBrownWheatColor , HTMLBrownBurlywoodColor , HTMLBrownTanColor , HTMLBrownRosyBrownColor , HTMLBrownSandyBrownColor , HTMLBrownGoldenrodColor , HTMLBrownDarkGoldenrodColor , HTMLBrownPeruColor , HTMLBrownChocolateColor , HTMLBrownSaddleBrownColor , HTMLBrownSiennaColor , HTMLBrownBrownColor , HTMLBrownMaroonColor , HTMLGreenDarkOliveGreenColor , HTMLGreenOliveColor , HTMLGreenOliveDrabColor , HTMLGreenYellowGreenColor , HTMLGreenLimeGreenColor , HTMLGreenLimeColor , HTMLGreenLawnGreenColor , HTMLGreenChartreuseColor , HTMLGreenGreenYellowColor , HTMLGreenSpringGreenColor , HTMLGreenMediumSpringGreenColor , HTMLGreenLightGreenColor , HTMLGreenPaleGreenColor , HTMLGreenDarkSeaGreenColor , HTMLGreenMediumAquamarineColor , HTMLGreenMediumSeaGreenColor , HTMLGreenSeaGreenColor , HTMLGreenForestGreenColor , HTMLGreenGreenColor , HTMLGreenDarkGreenColor , HTMLCyanAquaColor , HTMLCyanCyanColor , HTMLCyanLightCyanColor , HTMLCyanPaleTurquoiseColor , HTMLCyanAquamarineColor , HTMLCyanTurquoiseColor , HTMLCyanMediumTurquoiseColor , HTMLCyanDarkTurquoiseColor , HTMLCyanLightSeaGreenColor , HTMLCyanCadetBlueColor , HTMLCyanDarkCyanColor , HTMLCyanTealColor , HTMLBlueLightSteelBlueColor , HTMLBluePowderBlueColor , HTMLBlueLightBlueColor , HTMLBlueSkyBlueColor , HTMLBlueLightSkyBlueColor , HTMLBlueDeepSkyBlueColor , HTMLBlueDodgerBlueColor , HTMLBlueCornflowerBlueColor , HTMLBlueSteelBlueColor , HTMLBlueRoyalBlueColor , HTMLBlueBlueColor , HTMLBlueMediumBlueColor , HTMLBlueDarkBlueColor , HTMLBlueNavyColor , HTMLBlueMidnightBlueColor , HTMLPurpleLavenderColor , HTMLPurpleThistleColor , HTMLPurplePlumColor , HTMLPurpleVioletColor , HTMLPurpleOrchidColor , HTMLPurpleFuchsiaColor , HTMLPurpleMagentaColor , HTMLPurpleMediumOrchidColor , HTMLPurpleMediumPurpleColor , HTMLPurpleBlueVioletColor , HTMLPurpleDarkVioletColor , HTMLPurpleDarkOrchidColor , HTMLPurpleDarkMagentaColor , HTMLPurplePurpleColor , HTMLPurpleIndigoColor , HTMLPurpleDarkSlateBlueColor , HTMLPurpleSlateBlueColor , HTMLPurpleMediumSlateBlueColor , HTMLWhiteWhiteColor , HTMLWhiteSnowColor , HTMLWhiteHoneydewColor , HTMLWhiteMintCreamColor , HTMLWhiteAzureColor , HTMLWhiteAliceBlueColor , HTMLWhiteGhostWhiteColor , HTMLWhiteWhiteSmokeColor , HTMLWhiteSeashellColor , HTMLWhiteBeigeColor , HTMLWhiteOldLaceColor , HTMLWhiteFloralWhiteColor , HTMLWhiteIvoryColor , HTMLWhiteAntiqueWhiteColor , HTMLWhiteLinenColor , HTMLWhiteLavenderBlushColor , HTMLWhiteMistyRoseColor , HTMLGrayGainsboroColor , HTMLGrayLightGrayColor , HTMLGraySilverColor , HTMLGrayDarkGrayColor , HTMLGrayGrayColor , HTMLGrayDimGrayColor , HTMLGrayLightSlateGrayColor , HTMLGraySlateGrayColor , HTMLGrayDarkSlateGrayColor , HTMLGrayBlackColor , NoneColor }

Signals
void	rectChanged ()

void	XRadiusChanged ()

void	YRadiusChanged ()

void	rotationChanged ()

Public Member Functions
	PartRectangle (QETElementEditor , QGraphicsItem parent=nullptr)
	PartRectangle::PartRectangle Constructor.

	~PartRectangle () override
	PartRectangle::~PartRectangle.

int	type () const override

void	paint (QPainter , const QStyleOptionGraphicsItem , QWidget *=nullptr) override
	PartRectangle::paint Draw this Rectangle.

QString	name () const override

QString	xmlName () const override

const QDomElement	toXml (QDomDocument &) const override
	PartRectangle::toXml Export this rectangle in xml.

void	fromXml (const QDomElement &) override
	PartRectangle::fromXml Import the properties of this rectangle from a xml element.

QRectF	rect () const
	PartRectangle::rect.

void	setRect (const QRectF &rect)
	PartRectangle::setRect Sets the item's rectangle to be the given rectangle.

qreal	XRadius () const

void	setXRadius (qreal X)

qreal	YRadius () const

void	setYRadius (qreal Y)

void	setRotation (qreal angle)

qreal	rotation () const

QRectF	sceneGeometricRect () const override
	PartRectangle::sceneGeometricRect.

virtual QPointF	sceneTopLeft () const
	PartRectangle::sceneTopLeft.

QPainterPath	shape () const override
	PartRectangle::shape.

QPainterPath	shadowShape () const override

QRectF	boundingRect () const override
	PartRectangle::boundingRect.

bool	isUseless () const override
	PartRectangle::isUseless.

void	startUserTransformation (const QRectF &) override
	PartRectangle::startUserTransformation Start the user-induced transformation, provided this primitive is contained within the initial_selection_rect bounding rectangle.

void	handleUserTransformation (const QRectF &, const QRectF &) override
	PartRectangle::handleUserTransformation Handle the user-induced transformation from initial_selection_rect to new_selection_rect.

void	addHandler () override
	PartRectangle::addHandler Add handlers for this item.

void	removeHandler () override
	PartRectangle::removeHandler Remove the handlers of this item.

Public Member Functions inherited from CustomElementGraphicPart
	CustomElementGraphicPart (QETElementEditor editor, QGraphicsItem parent=nullptr)
	CustomElementGraphicPart::CustomElementGraphicPart Default constructor. By default, item is selectable, send geometry change (Qt > 4.6), accept mouse left button and accept hover event.

	~CustomElementGraphicPart () override
	CustomElementGraphicPart::~CustomElementGraphicPart Destructor.

LineStyle	lineStyle () const

void	setLineStyle (const LineStyle ls)
	CustomElementGraphicPart::setLineStyle Set line style to ls.

LineWeight	lineWeight () const

void	setLineWeight (const LineWeight lw)
	CustomElementGraphicPart::setLineWeight Set line weight to lw.

qreal	penWeight () const
	CustomElementGraphicPart::penWeight.

Filling	filling () const

void	setFilling (const Filling f)
	CustomElementGraphicPart::setFilling Set filling to f.

Color	color () const

void	setColor (const Color c)
	CustomElementGraphicPart::setColor Set color to c.

bool	antialiased () const

void	setAntialiased (const bool b)
	CustomElementGraphicPart::setAntialiased Set antialias to b.

void	setProperty (const char *name, const QVariant &value) override

QVariant	property (const char *name) const override

virtual void	setHandlerColor (QPointF, const QColor &)

virtual void	resetAllHandlerColor ()

Public Member Functions inherited from CustomElementPart
	CustomElementPart (QETElementEditor *editor)
	CustomElementPart Constructor.

virtual	~CustomElementPart ()
	~CustomElementPart Destructor

virtual QETElementEditor *	elementEditor () const

virtual void	updateCurrentPartEditor () const

virtual ElementScene *	elementScene () const

virtual QUndoStack &	undoStack () const

virtual QGraphicsItem *	toItem ()

virtual QET::ScalingMethod	preferredScalingMethod () const

Protected Member Functions
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
	PartRectangle::mouseReleaseEvent Handle mouse release event.

QVariant	itemChange (GraphicsItemChange change, const QVariant &value) override
	PartRectangle::itemChange.

bool	sceneEventFilter (QGraphicsItem watched, QEvent event) override
	PartRectangle::sceneEventFilter.

Protected Member Functions inherited from CustomElementGraphicPart
void	stylesToXml (QDomElement &) const
	CustomElementGraphicPart::stylesToXml Write the current style to xml element. The style are stored like this: name-of-style:value;name-of-style:value Each style separate by ; and name-style/value are separate by :

void	stylesFromXml (const QDomElement &)
	CustomElementGraphicPart::stylesFromXml Read the style used by this, from a xml element.

void	resetStyles ()
	CustomElementGraphicPart::resetStyles Reset the current style to default, same style of default constructor.

void	applyStylesToQPainter (QPainter &) const
	CustomElementGraphicPart::applyStylesToQPainter Apply the current style to the QPainter.

void	drawShadowShape (QPainter *painter)
	CustomElementGraphicPart::drawShadowShape Draw a transparent blue shadow arround the shape of this item. The QPainterPathStroker used to draw shadows have a width of SHADOWS_HEIGHT Be carefull if penWeight of this item is to 0 the outline of strock is bigger of 0.5.

void	hoverEnterEvent (QGraphicsSceneHoverEvent *event) override
	CustomElementGraphicPart::hoverEnterEvent Reimplemented from QGraphicsObject. Set m_hovered to true.

void	hoverLeaveEvent (QGraphicsSceneHoverEvent *event) override
	CustomElementGraphicPart::hoverLeaveEvent Reimplemented from QGraphicsObject. Set m_hovered to false.

void	mousePressEvent (QGraphicsSceneMouseEvent *event) override

void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override

void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override

Protected Member Functions inherited from CustomElementPart
QList< QPointF >	mapPoints (const QRectF &, const QRectF &, const QList< QPointF > &)

Properties
QRectF	rect

qreal	xRadius

qreal	yRadius

qreal	rotation

Properties inherited from CustomElementGraphicPart
LineStyle	line_style

LineWeight	line_weight

Filling	filling

Color	color

bool	antialias

Private Member Functions
	PartRectangle (const PartRectangle &)

void	switchResizeMode ()
	PartRectangle::switchResizeMode.

void	adjusteHandlerPos ()
	PartRectangle::adjusteHandlerPos.

void	handlerMousePressEvent (QetGraphicsHandlerItem qghi, QGraphicsSceneMouseEvent event)
	PartRectangle::handlerMousePressEvent.

void	handlerMouseMoveEvent (QetGraphicsHandlerItem qghi, QGraphicsSceneMouseEvent event)
	PartRectangle::handlerMouseMoveEvent.

void	handlerMouseReleaseEvent (QetGraphicsHandlerItem qghi, QGraphicsSceneMouseEvent event)

Private Attributes
QRectF	m_rect

QRectF	m_old_rect

QList< QPointF >	saved_points_

int	m_resize_mode = 1

int	m_vector_index = -1

QVector< QetGraphicsHandlerItem * >	m_handler_vector

qreal	m_xRadius = 0

qreal	m_yRadius = 0

qreal	m_old_xRadius

qreal	m_old_yRadius

bool	m_modifie_radius_equaly = false

qreal	m_rot

Additional Inherited Members
Static Public Member Functions inherited from CustomElementGraphicPart
static void	drawCross (const QPointF &center, QPainter *painter)
	CustomElementGraphicPart::drawCross Draw a cross at pos center.

Protected Attributes inherited from CustomElementGraphicPart
bool	m_hovered

Detailed Description

This class represents a rectangle primitive which may be used to compose the drawing of an electrical element within the element editor. All coordinates is in item coordinate, except pos()

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

◆ PartRectangle() [1/2]

PartRectangle::PartRectangle	(	QETElementEditor *	editor,
		QGraphicsItem *	parent = `nullptr`
	)

PartRectangle::PartRectangle Constructor.

Parameters

editor	the QETElementEditor of this item
parent	parent item

◆ ~PartRectangle()

PartRectangle::~PartRectangle ( )

override

PartRectangle::~PartRectangle.

Here is the call graph for this function:

◆ PartRectangle() [2/2]

PartRectangle::PartRectangle ( const PartRectangle & )

private

Member Function Documentation

◆ addHandler()

void PartRectangle::addHandler ( )

overridevirtual

PartRectangle::addHandler Add handlers for this item.

Reimplemented from CustomElementGraphicPart.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ adjusteHandlerPos()

void PartRectangle::adjusteHandlerPos ( )

private

PartRectangle::adjusteHandlerPos.

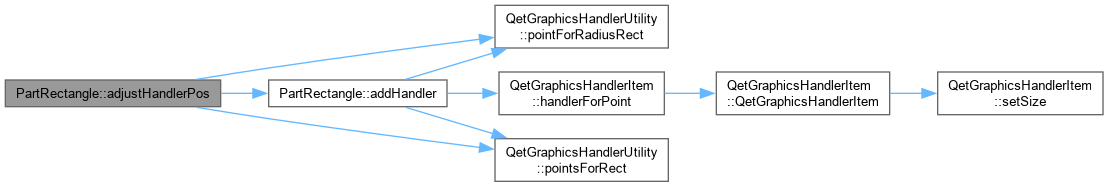

Here is the call graph for this function:

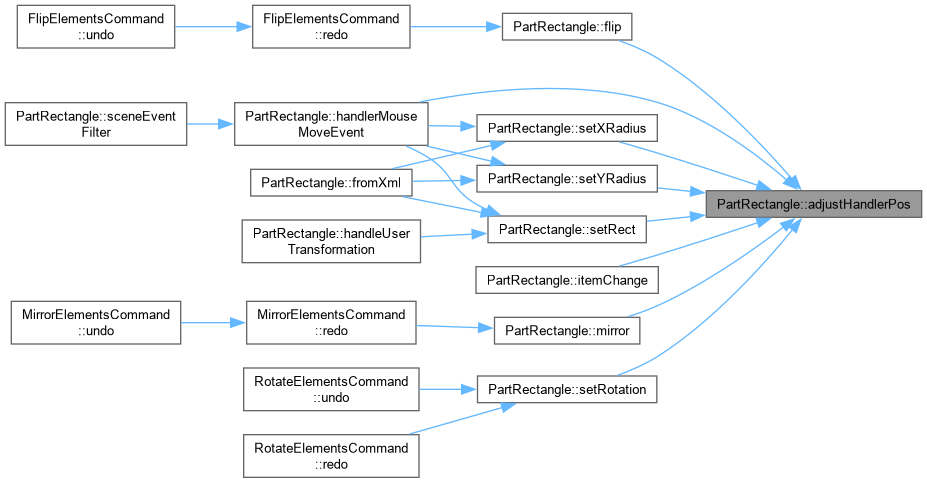

Here is the caller graph for this function:

◆ boundingRect()

QRectF PartRectangle::boundingRect ( ) const

override

PartRectangle::boundingRect.

Returns: Bounding rectangle this part can fit into

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fromXml()

void PartRectangle::fromXml ( const QDomElement & qde )

overridevirtual

PartRectangle::fromXml Import the properties of this rectangle from a xml element.

Parameters

qde	: Xml document to use.

Implements CustomElementPart.

Here is the call graph for this function:

◆ handlerMouseMoveEvent()

void PartRectangle::handlerMouseMoveEvent	(	QetGraphicsHandlerItem *	qghi,
		QGraphicsSceneMouseEvent *	event
	)

private

PartRectangle::handlerMouseMoveEvent.

Parameters

qghi
event

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handlerMousePressEvent()

void PartRectangle::handlerMousePressEvent	(	QetGraphicsHandlerItem *	qghi,
		QGraphicsSceneMouseEvent *	event
	)

private

PartRectangle::handlerMousePressEvent.

Parameters

qghi
event

Here is the caller graph for this function:

◆ handlerMouseReleaseEvent()

void PartRectangle::handlerMouseReleaseEvent	(	QetGraphicsHandlerItem *	qghi,
		QGraphicsSceneMouseEvent *	event
	)

private

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handleUserTransformation()

void PartRectangle::handleUserTransformation	(	const QRectF &	initial_selection_rect,
		const QRectF &	new_selection_rect
	)

overridevirtual

PartRectangle::handleUserTransformation Handle the user-induced transformation from initial_selection_rect to new_selection_rect.

Parameters

initial_selection_rect
new_selection_rect

Implements CustomElementPart.

Here is the call graph for this function:

◆ isUseless()

bool PartRectangle::isUseless ( ) const

overridevirtual

PartRectangle::isUseless.

Returns: true if this part is irrelevant and does not deserve to be Retained / registered. An rectangle is relevant when he's not null.

Implements CustomElementPart.

◆ itemChange()

QVariant PartRectangle::itemChange	(	GraphicsItemChange	change,
		const QVariant &	value
	)

overrideprotected

PartRectangle::itemChange.

Parameters

change
value

Returns

Here is the call graph for this function:

◆ mouseReleaseEvent()

void PartRectangle::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

PartRectangle::mouseReleaseEvent Handle mouse release event.

Parameters

event

Here is the call graph for this function:

◆ name()

QString PartRectangle::name ( ) const

inlineoverridevirtual

Returns: the name of the primitive

Implements CustomElementPart.

◆ paint()

void PartRectangle::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	options,
		QWidget *	widget = `nullptr`
	)

override

PartRectangle::paint Draw this Rectangle.

Parameters

painter
options
widget

Here is the call graph for this function:

◆ rect()

QRectF PartRectangle::rect ( ) const

PartRectangle::rect.

Returns: : Returns the item's rectangle.

◆ rectChanged

void PartRectangle::rectChanged ( )

signal

Here is the caller graph for this function:

◆ removeHandler()

void PartRectangle::removeHandler ( )

overridevirtual

PartRectangle::removeHandler Remove the handlers of this item.

Reimplemented from CustomElementGraphicPart.

Here is the caller graph for this function:

◆ rotation()

qreal PartRectangle::rotation ( ) const

◆ rotationChanged

void PartRectangle::rotationChanged ( )

signal

◆ sceneEventFilter()

bool PartRectangle::sceneEventFilter	(	QGraphicsItem *	watched,
		QEvent *	event
	)

overrideprotected

PartRectangle::sceneEventFilter.

Parameters

watched
event

Returns

Here is the call graph for this function:

◆ sceneGeometricRect()

QRectF PartRectangle::sceneGeometricRect ( ) const

overridevirtual

PartRectangle::sceneGeometricRect.

Returns: the minimum, margin-less rectangle this part can fit into, in scene coordinates. It is different from boundingRect() because it is not supposed to imply any margin, and it is different from shape because it is a regular rectangle, not a complex shape.

Implements CustomElementPart.

Here is the call graph for this function:

◆ sceneTopLeft()

QPointF PartRectangle::sceneTopLeft ( ) const

virtual

PartRectangle::sceneTopLeft.

Returns: the top left of rectangle, in scene coordinate

Here is the caller graph for this function:

◆ setRect()

void PartRectangle::setRect ( const QRectF & rect )

PartRectangle::setRect Sets the item's rectangle to be the given rectangle.

Parameters

rect

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setRotation()

void PartRectangle::setRotation ( qreal angle )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setXRadius()

void PartRectangle::setXRadius ( qreal X )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setYRadius()

void PartRectangle::setYRadius ( qreal Y )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shadowShape()

QPainterPath PartRectangle::shadowShape ( ) const

overridevirtual

Implements CustomElementGraphicPart.

Here is the call graph for this function:

◆ shape()

QPainterPath PartRectangle::shape ( ) const

override

PartRectangle::shape.

Returns: the shape of this item

Here is the call graph for this function:

Here is the caller graph for this function:

◆ startUserTransformation()

void PartRectangle::startUserTransformation ( const QRectF & initial_selection_rect )

overridevirtual

PartRectangle::startUserTransformation Start the user-induced transformation, provided this primitive is contained within the initial_selection_rect bounding rectangle.

Parameters

initial_selection_rect

Implements CustomElementPart.

◆ switchResizeMode()

void PartRectangle::switchResizeMode ( )

private

PartRectangle::switchResizeMode.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ toXml()

const QDomElement PartRectangle::toXml ( QDomDocument & xml_document ) const

overridevirtual

PartRectangle::toXml Export this rectangle in xml.

Parameters

xml_document : Xml document to use for create the xml element.

Returns: an xml element that describe this ellipse

Implements CustomElementPart.

Here is the call graph for this function:

◆ type()

int PartRectangle::type ( ) const

inlineoverride

Enable the use of qgraphicsitem_cast to safely cast a QGraphicsItem into a PartRectangle.

Returns: the QGraphicsItem type

◆ xmlName()

QString PartRectangle::xmlName ( ) const

inlineoverridevirtual

Returns: the name that will be used as XML tag when exporting the primitive

Implements CustomElementPart.

◆ XRadius()

qreal PartRectangle::XRadius ( ) const

inline

Here is the caller graph for this function:

◆ XRadiusChanged

void PartRectangle::XRadiusChanged ( )

signal

Here is the caller graph for this function:

◆ YRadius()

qreal PartRectangle::YRadius ( ) const

inline

Here is the caller graph for this function:

◆ YRadiusChanged

void PartRectangle::YRadiusChanged ( )

signal

Here is the caller graph for this function:

Member Data Documentation

◆ m_handler_vector

QVector<QetGraphicsHandlerItem *> PartRectangle::m_handler_vector

private

◆ m_modifie_radius_equaly

bool PartRectangle::m_modifie_radius_equaly = false

private

◆ m_old_rect

QRectF PartRectangle::m_old_rect

private

◆ m_old_xRadius

qreal PartRectangle::m_old_xRadius

private

◆ m_old_yRadius

qreal PartRectangle::m_old_yRadius

private

◆ m_rect

QRectF PartRectangle::m_rect

private

◆ m_resize_mode

int PartRectangle::m_resize_mode = 1

private

◆ m_rot

qreal PartRectangle::m_rot

private

◆ m_vector_index

int PartRectangle::m_vector_index = -1

private

◆ m_xRadius

qreal PartRectangle::m_xRadius = 0

private

◆ m_yRadius

qreal PartRectangle::m_yRadius = 0

private

◆ saved_points_

QList<QPointF> PartRectangle::saved_points_

private

Property Documentation

◆ rect

QRectF PartRectangle::rect

readwrite

◆ rotation

qreal PartRectangle::rotation

readwrite

◆ xRadius

qreal PartRectangle::xRadius

readwrite

◆ yRadius

qreal PartRectangle::yRadius

readwrite

The documentation for this class was generated from the following files:

sources/editor/graphicspart/partrectangle.h
sources/editor/graphicspart/partrectangle.cpp

Public Types

Signals

Public Member Functions

Protected Member Functions

Properties

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ PartRectangle() [1/2]

◆ ~PartRectangle()

◆ PartRectangle() [2/2]

Member Function Documentation

◆ addHandler()

◆ adjusteHandlerPos()

◆ boundingRect()

◆ fromXml()

◆ handlerMouseMoveEvent()

◆ handlerMousePressEvent()

◆ handlerMouseReleaseEvent()

◆ handleUserTransformation()

◆ isUseless()

◆ itemChange()

◆ mouseReleaseEvent()

◆ name()

◆ paint()

◆ rect()

◆ rectChanged

◆ removeHandler()

◆ rotation()

◆ rotationChanged

◆ sceneEventFilter()

◆ sceneGeometricRect()

◆ sceneTopLeft()

◆ setRect()

◆ setRotation()

◆ setXRadius()

◆ setYRadius()

◆ shadowShape()

◆ shape()

◆ startUserTransformation()

◆ switchResizeMode()

◆ toXml()

◆ type()

◆ xmlName()

◆ XRadius()

◆ XRadiusChanged

◆ YRadius()

◆ YRadiusChanged

Member Data Documentation

◆ m_handler_vector

◆ m_modifie_radius_equaly

◆ m_old_rect

◆ m_old_xRadius

◆ m_old_yRadius

◆ m_rect

◆ m_resize_mode

◆ m_rot

◆ m_vector_index

◆ m_xRadius

◆ m_yRadius

◆ saved_points_

Property Documentation

◆ rect

◆ rotation

◆ xRadius

◆ yRadius
