MasterElement Class Reference

The MasterElement class This class is a custom element, with extended behavior to be a master element. Master element can be linked with slave element and display a cross ref item for know with what other element he is linked. More...

#include <masterelement.h>

Inheritance diagram for MasterElement:
Inheritance graph
Collaboration diagram for MasterElement:
Collaboration graph

Public Member Functions

 MasterElement (const ElementsLocation &, QGraphicsItem *=nullptr, int *=nullptr)
 MasterElement::MasterElement Default constructor.

 ~MasterElement () override
 MasterElement::~MasterElement default destructor.

void linkToElement (Element *elmt) override
 MasterElement::linkToElement Link this master to another element For this class element must be a slave.

void unlinkAllElements () override
 MasterElement::unlinkAllElements Unlink all of the element in the QList connected_elements.

void unlinkElement (Element *elmt) override
 MasterElement::unlinkElement Unlink the given element in parameter.

void initLink (QETProject *project) override
 MasterElement::initLink.

QRectF XrefBoundingRect () const
 MasterElement::XrefBoundingRect.

- Public Member Functions inherited from Element
 Element (const ElementsLocation &location, QGraphicsItem *=nullptr, int *state=nullptr, Element::kind link_type=Element::Simple)
 Element::Element.

 ~Element () override
 Element::~Element.

int type () const override

QList< Terminal * > terminals () const
 Element::terminals.

QList< Conductor * > conductors () const
 Element::conductors.

QList< QPair< Terminal *, Terminal * > > AlignedFreeTerminals () const
 Element::AlignedFreeTerminals.

DiagramContext elementInformations () const

virtual void setElementInformations (DiagramContext dc)
 Element::setElementInformations Set new information for this element. If new information is different of current infotmation emit elementInfoChange.

ElementData elementData () const
 Element::elementData.

void setElementData (ElementData data)
 Element::setElementData Set new data for this element. If m_information of data is changed, emit elementInfoChange.

DiagramContext kindInformations () const
 kindInformations

autonum::sequentialNumbers sequenceStruct () const

autonum::sequentialNumbersrSequenceStruct ()

void setUpFormula (bool code_letter=true)
 Element::setUpFormula Set up the formula used to create the label of this element.

void setPrefix (QString)
 Element::setPrefix set Element Prefix.

QString getPrefix () const
 Element::getPrefix get Element Prefix.

void freezeLabel (bool freeze)
 Element::freezeLabel Freeze this element label.

bool isFreezeLabel () const

void freezeNewAddedElement ()
 Element::freezeNewAddedElement Freeze this label if needed.

QString actualLabel ()
 Element::actualLabel Always return the current label to be displayed. This function is useful when label is based on formula, because label can change at any time.

QString name () const override
 Element::name.

ElementsLocation location () const

virtual void setHighlighted (bool)

void displayHelpLine (bool b=true)
 Element::displayHelpLine Display the help line of each terminal if b is true.

QSize size () const

QPixmap pixmap ()
 Element::pixmap.

QPoint setHotspot (QPoint)

QPoint hotspot () const

void editProperty () override

virtual bool fromXml (QDomElement &, QHash< int, Terminal * > &)
 Element::fromXml Import the parameters of this element from a xml document. When call this function ensure this element is already in a scene, because the dynamic text item and element text item group (in the xml file) are created in this function and need a diagram for create their Xref, when this element is linked to another. If not the Xref can be not displayed, until the next call of update Xref of the group or text item.

virtual QDomElement toXml (QDomDocument &, QHash< Terminal *, int > &) const
 Element::toXml Allows to export the element in XML.

QUuid uuid () const
 Element::uuid.

int orientation () const

void addDynamicTextItem (DynamicElementTextItem *deti=nullptr)
 Element::addDynamiqueTextItem Add deti as a dynamic text item of this element, deti is reparented to this If deti is null, a new DynamicElementTextItem is created and added to this element.

void removeDynamicTextItem (DynamicElementTextItem *deti)
 Element::removeDynamicTextItem Remove deti, no matter if is a child of this element or a child of a group of this element. Set he parent item of deti to 0, deti is not deleted.

QList< DynamicElementTextItem * > dynamicTextItems () const
 Element::dynamicTextItems.

ElementTextItemGroupaddTextGroup (const QString &name)
 Element::addTextGroup Create and add an element text item group to this element. If this element already have a group with the same name, then name will renamed to name1 or name2 etc....

void addTextGroup (ElementTextItemGroup *group)
 Element::addTextGroup.

void removeTextGroup (ElementTextItemGroup *group)
 Element::removeTextGroup Remove the text group group from this element, and set the parent of group to 0. group is not deleted. All texts owned by the group will be reparented to this element.

ElementTextItemGrouptextGroup (const QString &name) const
 Element::textGroup.

QList< ElementTextItemGroup * > textGroups () const
 Element::textGroups.

bool addTextToGroup (DynamicElementTextItem *text, ElementTextItemGroup *group)
 Element::addTextToGroup Add the text text to the group group; If group isn't owned by this element return false. The text must be a text of this element.

bool removeTextFromGroup (DynamicElementTextItem *text, ElementTextItemGroup *group)
 Element::removeTextFromGroup Remove the text text from the group group, en reparent text to this element.

bool isFree () const

QList< Element * > linkedElements ()
 Element::linkedElements.

virtual kind linkType () const
 linkType use elementData function instead

QString linkTypeToString () const
 linkTypeToString use elementData function instead

void newUuid ()

void paint (QPainter *, const QStyleOptionGraphicsItem *, QWidget *) override
 Element::paint.

QRectF boundingRect () const override

- Public Member Functions inherited from QetGraphicsItem
 QetGraphicsItem (QGraphicsItem *parent=nullptr)
 QetGraphicsItem::QetGraphicsItem Default constructor.

 ~QetGraphicsItem () override=0

Diagramdiagram () const

virtual void setPos (const QPointF &p)

virtual void setPos (qreal x, qreal y)

virtual bool isMovable () const

virtual void setMovable (bool movable)

bool isHovered () const

QET::GraphicsItemState state () const
 QetGraphicsItem::state.


Protected Member Functions

QVariant itemChange (GraphicsItemChange change, const QVariant &value) override

- Protected Member Functions inherited from Element
void drawAxes (QPainter *, const QStyleOptionGraphicsItem *)

void setSize (int, int)
 Element::setSize Define the size of the element. The size must be a multiple of 10. If not, the dimensions indicated will be arrrondies to higher tens.

void mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
 Element::mouseMoveEvent.

void mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
 Element::mouseReleaseEvent.

void hoverEnterEvent (QGraphicsSceneHoverEvent *) override

void hoverLeaveEvent (QGraphicsSceneHoverEvent *) override

- Protected Member Functions inherited from QetGraphicsItem
void mousePressEvent (QGraphicsSceneMouseEvent *event) override

void mouseDoubleClickEvent (QGraphicsSceneMouseEvent *event) override

void mouseMoveEvent (QGraphicsSceneMouseEvent *event) override

void mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
 QetGraphicsItem::mouseReleaseEvent handle mouse release click.

void hoverEnterEvent (QGraphicsSceneHoverEvent *event) override

void hoverLeaveEvent (QGraphicsSceneHoverEvent *event) override


Private Member Functions

void xrefPropertiesChanged ()

void aboutDeleteXref ()
 MasterElement::aboutDeleteXref Check if Xref item must be displayed, if not, delete it. If Xref item is deleted or already not used (nullptr) return true; Else return false if Xref item is used NOTICE : Xref can display nothing but not be deleted so far. For example, if Xref is display has cross, only power contact are linked and option show power contact is disable, the cross isn't draw.


Private Attributes

CrossRefItemm_Xref_item = nullptr

bool m_first_scene_change = true


Additional Inherited Members

- Public Types inherited from Element
enum  kind {
  Simple = 1 , NextReport = 2 , PreviousReport = 4 , AllReport = 6 ,
  Master = 8 , Slave = 16 , Terminale = 32 , Thumbnail = 64
}
 The kind enum Used to know the kind of this element (master, slave, report ect...) More...

enum  { Type = UserType + 1000 }

- Signals inherited from Element
void linkedElementChanged ()

void elementInfoChange (DiagramContext old_info, DiagramContext new_info)

void textAdded (DynamicElementTextItem *deti)

void textRemoved (DynamicElementTextItem *deti)

void textsGroupAdded (ElementTextItemGroup *group)

void textsGroupAboutToBeRemoved (ElementTextItemGroup *group)

void textAddedToGroup (DynamicElementTextItem *text, ElementTextItemGroup *group)

void textRemovedFromGroup (DynamicElementTextItem *text, ElementTextItemGroup *group)

- Static Public Member Functions inherited from Element
static bool valideXml (QDomElement &)

- Protected Attributes inherited from Element
QList< Element * > connected_elements

QList< QUuid > tmp_uuids_link

QUuid m_uuid

kind m_link_type = Element::Simple

DiagramContext m_kind_informations

autonum::sequentialNumbers m_autoNum_seq

bool m_freeze_label = false

QString m_F_str

ElementsLocation m_location

QList< Terminal * > m_terminals

const QPicture m_picture

const QPicture m_low_zoom_picture

ElementData m_data

- Protected Attributes inherited from QetGraphicsItem
bool is_movable_

bool m_first_move

bool snap_to_grid_

QPointF m_mouse_to_origin_movement

QET::GraphicsItemState m_state = QET:: GIOK


Detailed Description

The MasterElement class This class is a custom element, with extended behavior to be a master element. Master element can be linked with slave element and display a cross ref item for know with what other element he is linked.

Constructor & Destructor Documentation

◆ MasterElement()

MasterElement::MasterElement ( const ElementsLocation location,
QGraphicsItem *  qgi = nullptr,
int *  state = nullptr
)
explicit

MasterElement::MasterElement Default constructor.

Parameters
location: location of xml definition
qgi: parent QGraphicItem
state: int used to know if the creation of element have error

◆ ~MasterElement()

MasterElement::~MasterElement ( )
override

MasterElement::~MasterElement default destructor.

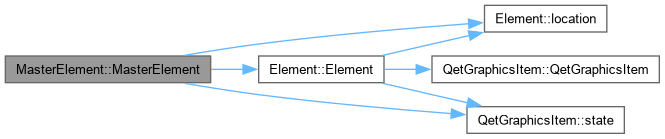

Here is the call graph for this function:

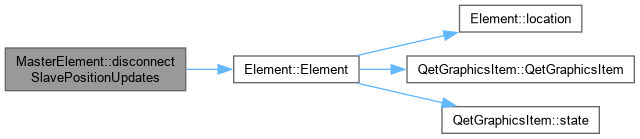

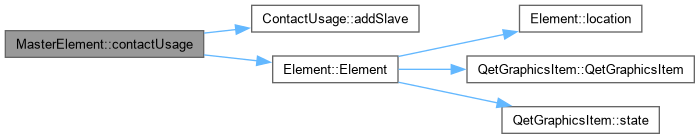

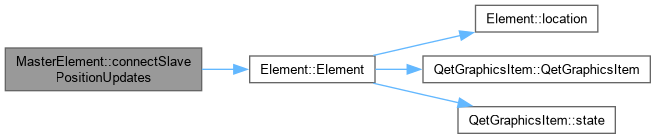

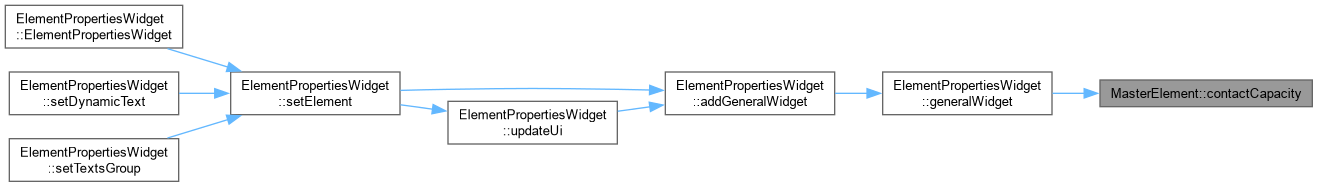

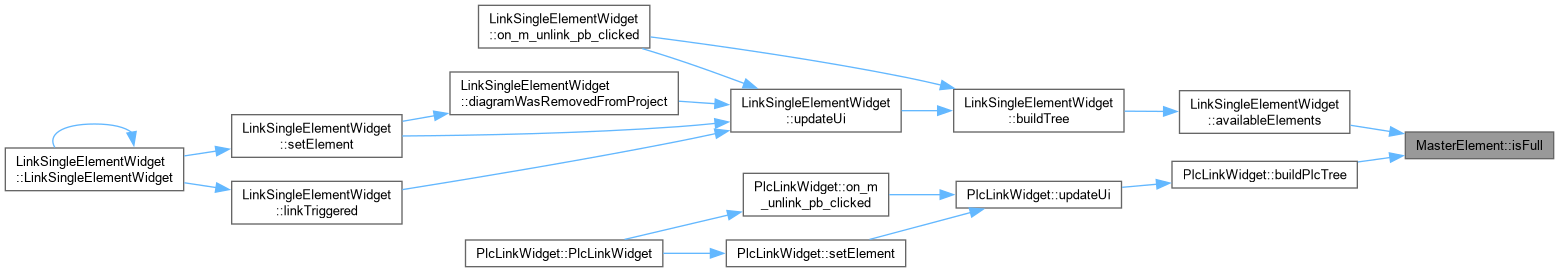

Member Function Documentation

◆ aboutDeleteXref()

void MasterElement::aboutDeleteXref ( )
private

MasterElement::aboutDeleteXref Check if Xref item must be displayed, if not, delete it. If Xref item is deleted or already not used (nullptr) return true; Else return false if Xref item is used NOTICE : Xref can display nothing but not be deleted so far. For example, if Xref is display has cross, only power contact are linked and option show power contact is disable, the cross isn't draw.

Returns
Here is the call graph for this function:
Here is the caller graph for this function:

◆ initLink()

void MasterElement::initLink ( QETProject project)
overridevirtual

MasterElement::initLink.

Parameters
projectCall init Link from custom element and after call update label for setup it.

Reimplemented from Element.

Here is the call graph for this function:

◆ itemChange()

QVariant MasterElement::itemChange ( GraphicsItemChange  change,
const QVariant &  value
)
overrideprotected
Here is the call graph for this function:

◆ linkToElement()

void MasterElement::linkToElement ( Element elmt)
overridevirtual

MasterElement::linkToElement Link this master to another element For this class element must be a slave.

Parameters
elmt

Reimplemented from Element.

Here is the call graph for this function:

◆ unlinkAllElements()

void MasterElement::unlinkAllElements ( )
overridevirtual

MasterElement::unlinkAllElements Unlink all of the element in the QList connected_elements.

Reimplemented from Element.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ unlinkElement()

void MasterElement::unlinkElement ( Element elmt)
overridevirtual

MasterElement::unlinkElement Unlink the given element in parameter.

Parameters
elmtelement to unlink from this

Reimplemented from Element.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ XrefBoundingRect()

QRectF MasterElement::XrefBoundingRect ( ) const

MasterElement::XrefBoundingRect.

Returns
The bounding rect of the Xref, if this element haven't got a xref, return a default QRectF
Here is the call graph for this function:
Here is the caller graph for this function:

◆ xrefPropertiesChanged()

void MasterElement::xrefPropertiesChanged ( )
private
Here is the call graph for this function:
Here is the caller graph for this function:

Member Data Documentation

◆ m_first_scene_change

bool MasterElement::m_first_scene_change = true
private

◆ m_Xref_item

CrossRefItem* MasterElement::m_Xref_item = nullptr
private

The documentation for this class was generated from the following files:
