#include <conductor.h>

Inherits QGraphicsObject.

Collaboration diagram for Conductor:

Public Types
enum	{ Type = UserType + 1001 }

enum	Highlight { None , Normal , Alert }

Public Slots
void	displayedTextChanged ()
	Conductor::displayedTextChanged Update the properties (text) of this conductor and other conductors at the same potential of this conductor.

Signals
void	propertiesChange ()

Public Member Functions
	Conductor (Terminal , Terminal )
	Conductor::Conductor Default constructor.

	~Conductor () override
	Conductor::~Conductor Destructor. The conductor is removed from its terminal.

bool	isValid () const
	Conductor::isValid.

int	type () const override
	type Enable the use of qgraphicsitem_cast to safely cast a QGraphicsItem into a conductor.

Diagram *	diagram () const

ConductorTextItem *	textItem () const

void	updatePath (const QRectF &=QRectF())

void	updatePathAnimate (const int=1)

int	fakePath ()

void	paint (QPainter , const QStyleOptionGraphicsItem , QWidget *) override

QRectF	boundingRect () const override
	Conductor::boundingRect.

QPainterPath	shape () const override
	Conductor::shape.

virtual QPainterPath	nearShape () const
	Conductor::nearShape.

qreal	length () const
	Conductor::length.

ConductorSegment *	middleSegment ()

QPointF	posForText (Qt::Orientations &flag)
	Conductor::posForText Calculate and return the better pos for text.

void	refreshText ()
	Conductor::refreshText Refresh the text of this conductor. recalcule and set the text according to the formula.

void	setPath (const QPainterPath &path)

QPainterPath	path () const

bool	fromXml (QDomElement &)
	Conductor::fromXml Load the conductor and her information from xml element.

QDomElement	toXml (QDomDocument &, QHash< Terminal *, int > &) const
	Conductor::toXml Exporte les caracteristiques du conducteur sous forme d'une element XML.

QVector< QPointF >	handlerPoints () const
	Conductor::handlerPoints.

const QList< ConductorSegment * >	segmentsList () const

void	setPropertyToPotential (const ConductorProperties &property, bool only_text=false)
	Conductor::setPropertiesToPotential.

void	setProperties (const ConductorProperties &property)
	Conductor::setProperties Set property as current property of conductor.

ConductorProperties	properties () const
	Conductor::properties.

void	setProfile (const ConductorProfile &, Qt::Corner)

ConductorProfile	profile (Qt::Corner) const

void	setProfiles (const ConductorProfilesGroup &)
	Conductor::setProfiles.

ConductorProfilesGroup	profiles () const

void	calculateTextItemPosition ()
	Conductor::calculateTextItemPosition Move the text at middle of conductor (if is vertical or horizontal) otherwise, move conductor at the middle of the longest segment of conductor. If text was moved by user, this function do nothing, except check if text is near conductor.

virtual Highlight	highlight () const

virtual void	setHighlighted (Highlight)

QSet< Conductor * >	relatedPotentialConductors (const bool all_diagram=true, QList< Terminal * > *t_list=nullptr)
	Conductor::relatedPotentialConductors Return all conductors at the same potential of this conductor, this conductor isn't part of the returned QSet.

QETDiagramEditor *	diagramEditor () const
	Conductor::diagramEditor.

void	editProperty ()
	Conductor::editProperty.

autonum::sequentialNumbers	sequenceNum () const

autonum::sequentialNumbers &	rSequenceNum ()

void	setSequenceNum (const autonum::sequentialNumbers &sn)

QList< QPointF >	junctions () const

void	setFreezeLabel (bool freeze)
	Conductor::setFreezeLabel Freeze this conductor label if true Unfreeze this conductor label if false.

Static Public Member Functions
static bool	valideXml (QDomElement &)

Public Attributes
Terminal *	terminal1

Terminal *	terminal2

Protected Member Functions
void	mouseDoubleClickEvent (QGraphicsSceneMouseEvent *event) override
	Conductor::mouseDoubleClickEvent Manage the mouse double click.

void	mousePressEvent (QGraphicsSceneMouseEvent *event) override
	Conductor::mousePressEvent Manage the mouse press event.

void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
	Conductor::mouseReleaseEvent.

void	hoverEnterEvent (QGraphicsSceneHoverEvent *event) override
	Conductor::hoverEnterEvent Manage the hover enter event.

void	hoverLeaveEvent (QGraphicsSceneHoverEvent *event) override
	Conductor::hoverLeaveEvent Manage the mouse leave event.

QVariant	itemChange (GraphicsItemChange, const QVariant &) override
	Conductor::itemChange.

bool	sceneEventFilter (QGraphicsItem watched, QEvent event) override
	Conductor::sceneEventFilter.

Properties
QPointF	pos

int	animPath

ConductorProperties	properties

autonum::sequentialNumbers	sequenceNum

Private Member Functions
	Conductor (const Conductor &)

bool	pathFromXml (const QDomElement &)
	Conductor::pathFromXml Generate the path (of the line) from xml file by checking the segments in the xml file.

void	setUpConnectionForFormula (QString old_formula, QString new_formula)
	Conductor::setUpConnectionForFormula setup connection according to the variable of formula.

void	adjusteHandlerPos ()
	Conductor::adjusteHandlerPos Adjust the position of the handler item.

void	handlerMousePressEvent (QetGraphicsHandlerItem qghi, QGraphicsSceneMouseEvent event)
	Conductor::handlerMousePressEvent.

void	handlerMouseMoveEvent (QetGraphicsHandlerItem qghi, QGraphicsSceneMouseEvent event)
	Conductor::handlerMouseMoveEvent.

void	handlerMouseReleaseEvent (QetGraphicsHandlerItem qghi, QGraphicsSceneMouseEvent event)
	Conductor::handlerMouseReleaseEvent.

void	addHandler ()
	Conductor::addHandler Add handlers for this item.

void	removeHandler ()
	Conductor::removeHandler Remove the handlers of this item.

void	segmentsToPath ()
	Conductor::segmentsToPath Generate the QPainterPath from the list of points.

void	saveProfile (bool=true)

void	generateConductorPath (const QPointF &, Qet::Orientation, const QPointF &, Qet::Orientation)

void	updateConductorPath (const QPointF &, Qet::Orientation, const QPointF &, Qet::Orientation)

uint	segmentsCount (QET::ConductorSegmentType=QET::Both) const

QList< QPointF >	segmentsToPoints () const

QList< ConductorBend >	bends () const

void	pointsToSegments (const QList< QPointF > &)

Qt::Corner	currentPathType () const

void	deleteSegments ()
	Supprime les segments.

QHash< ConductorSegmentProfile *, qreal >	shareOffsetBetweenSegments (const qreal &offset, const QList< ConductorSegmentProfile * > &, const qreal &=0.01) const

Static Private Member Functions
static int	getCoeff (const qreal &, const qreal &)

static int	getSign (const qreal &)

static QPointF	extendTerminal (const QPointF &, Qet::Orientation, qreal=10)
	Conductor::extendTerminal.

static Qt::Corner	movementType (const QPointF &, const QPointF &)

static QPointF	movePointIntoPolygon (const QPointF &, const QPainterPath &)
	Conductor::movePointIntoPolygon.

Private Attributes
autonum::sequentialNumbers	m_autoNum_seq

QVector< QetGraphicsHandlerItem * >	m_handler_vector

int	m_vector_index = -1

bool	m_mouse_over

ConductorProperties	m_properties
	Functional properties.

ConductorTextItem *	m_text_item
	Text input for non simple, non-singleline conductors.

ConductorSegment *	segments
	Segments composing the conductor.

bool	m_moving_segment
	Attributes related to mouse interaction.

int	moved_point

qreal	m_previous_z_value

ConductorSegment *	m_moved_segment

QPointF	before_mov_text_pos_

bool	modified_path
	Whether the conductor was manually modified by users.

bool	has_to_save_profile
	Whether the current profile should be saved as soon as possible.

ConductorProfilesGroup	conductor_profiles

Highlight	must_highlight_
	Define whether and how the conductor should be highlighted.

bool	m_valid

bool	m_freeze_label = false

QPainterPath	m_path

Static Private Attributes
static QPen	conductor_pen = QPen()
	QPen et QBrush objects used to draw conductors.

static QBrush	conductor_brush = QBrush()

static bool	pen_and_brush_initialized = false

Detailed Description

This class represents a conductor, i.e. a wire between two element terminals.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
Type

◆ Highlight

enum Conductor::Highlight

Enumerator
None
Normal
Alert

Constructor & Destructor Documentation

◆ Conductor() [1/2]

Conductor::Conductor	(	Terminal *	p1,
		Terminal *	p2
	)

Conductor::Conductor Default constructor.

Parameters

p1	: first terminal of this conductor.
p2	: second terminal of this conductor.

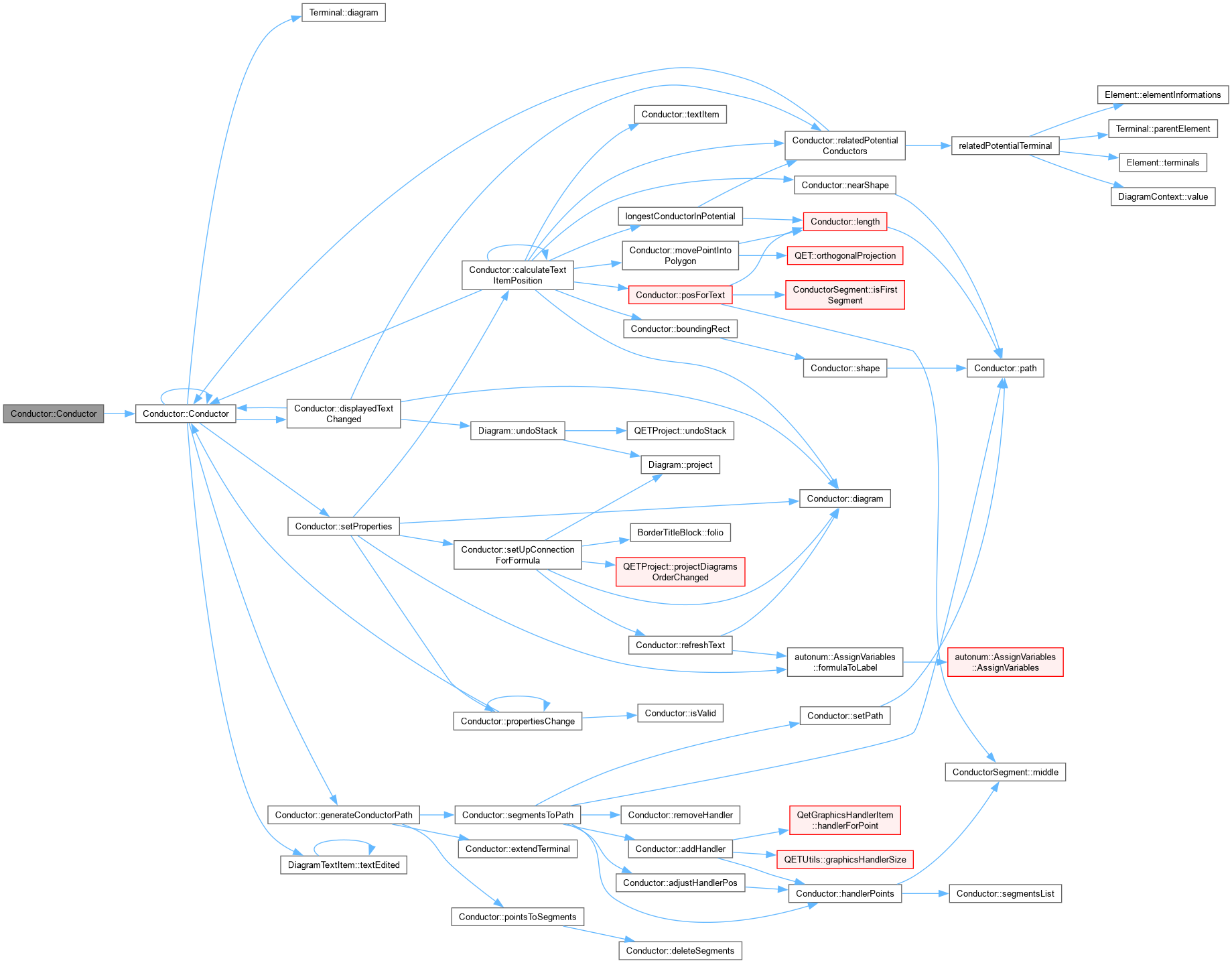

Here is the call graph for this function:

◆ ~Conductor()

Conductor::~Conductor ( )

override

Conductor::~Conductor Destructor. The conductor is removed from its terminal.

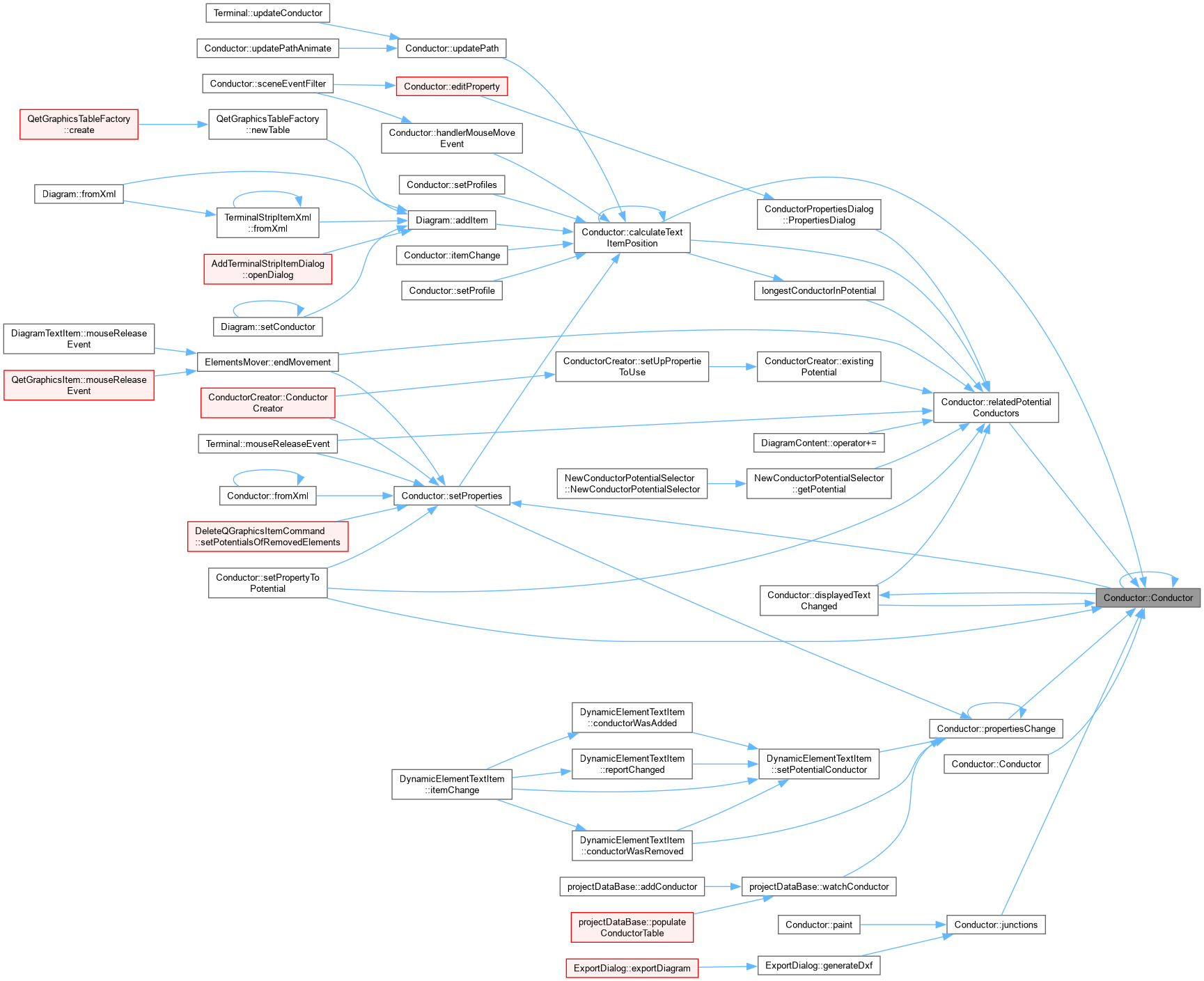

Here is the call graph for this function:

◆ Conductor() [2/2]

Conductor::Conductor ( const Conductor & )

private

Member Function Documentation

◆ addHandler()

void Conductor::addHandler ( )

private

Conductor::addHandler Add handlers for this item.

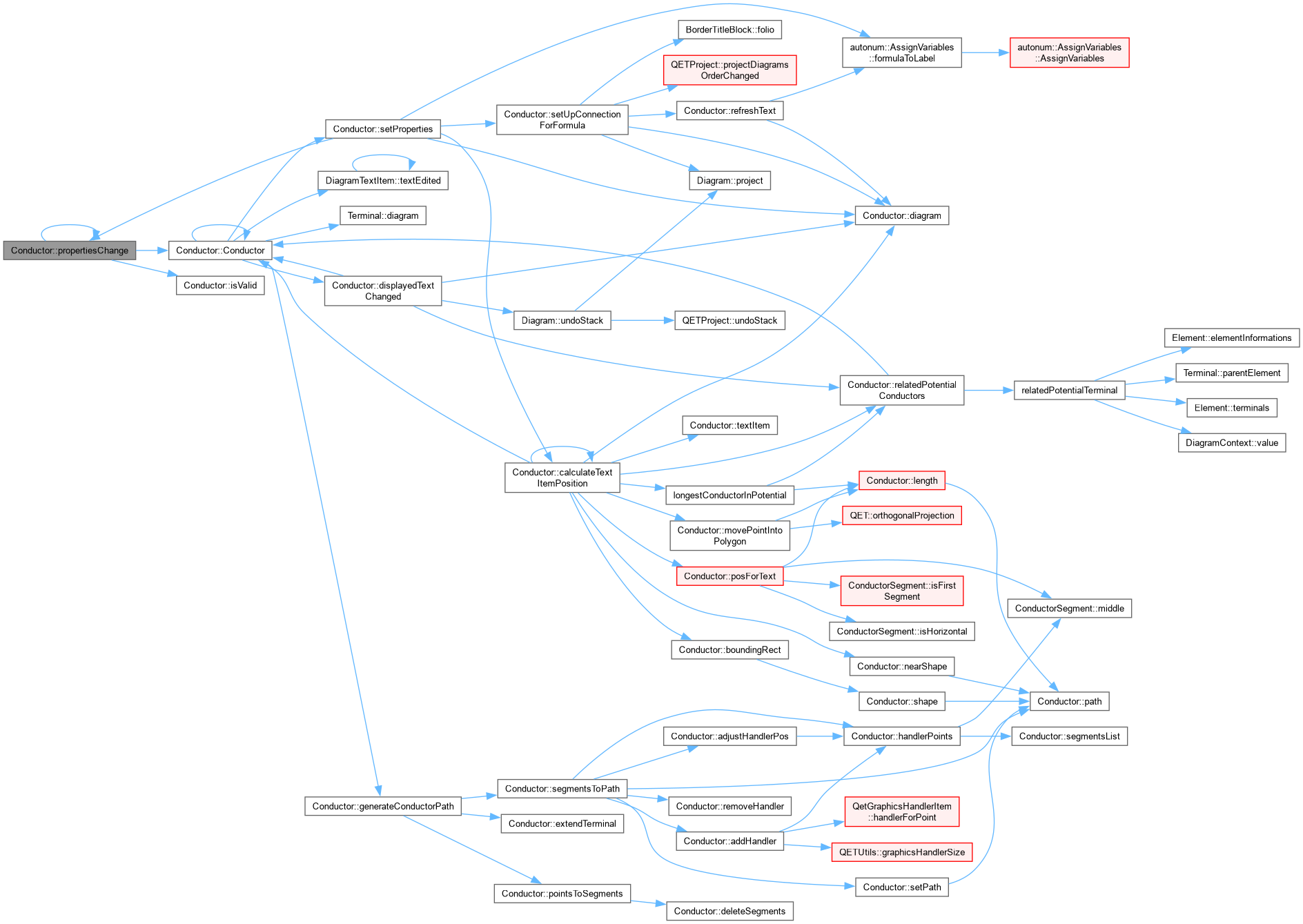

Here is the call graph for this function:

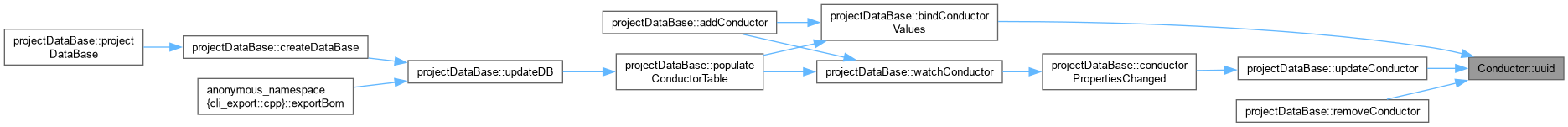

Here is the caller graph for this function:

◆ adjusteHandlerPos()

void Conductor::adjusteHandlerPos ( )

private

Conductor::adjusteHandlerPos Adjust the position of the handler item.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bends()

QList< ConductorBend > Conductor::bends ( ) const

private

Returns: la liste des bifurcations de ce conducteur ; ConductorBend est un typedef pour une QPair<QPointF, Qt::Corner>. Le point indique la position (en coordonnees locales) de la bifurcation tandis que le Corner indique le type de bifurcation.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ boundingRect()

QRectF Conductor::boundingRect ( ) const

override

Conductor::boundingRect.

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateTextItemPosition()

void Conductor::calculateTextItemPosition ( )

Conductor::calculateTextItemPosition Move the text at middle of conductor (if is vertical or horizontal) otherwise, move conductor at the middle of the longest segment of conductor. If text was moved by user, this function do nothing, except check if text is near conductor.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ currentPathType()

Qt::Corner Conductor::currentPathType ( ) const

private

Returns: le type de trajet actuel de ce conducteur

Here is the call graph for this function:

Here is the caller graph for this function:

◆ deleteSegments()

void Conductor::deleteSegments ( )

private

Supprime les segments.

Here is the caller graph for this function:

◆ diagram()

Diagram * Conductor::diagram ( ) const

Returns: le Diagram auquel ce conducteur appartient, ou 0 si ce conducteur est independant

Here is the caller graph for this function:

◆ diagramEditor()

QETDiagramEditor * Conductor::diagramEditor ( ) const

Conductor::diagramEditor.

Returns: The parent diagram editor or nullptr;

Here is the call graph for this function:

Here is the caller graph for this function:

◆ displayedTextChanged

void Conductor::displayedTextChanged ( )

slot

Conductor::displayedTextChanged Update the properties (text) of this conductor and other conductors at the same potential of this conductor.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ editProperty()

void Conductor::editProperty ( )

Conductor::editProperty.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ extendTerminal()

QPointF Conductor::extendTerminal	(	const QPointF &	terminal,
		Qet::Orientation	terminal_orientation,
		qreal	ext_size = `10`
	)

staticprivate

Conductor::extendTerminal.

Parameters

terminal	: point to extend (must be the docking point of a terminal)
terminal_orientation	: the orientation of the terminal
ext_size	: how many to extrend (10 by default)

Returns: the point with an extension of @ext_size and rounded to nearest multiple of ten in order to be snapped to the grid of the diagram.

Here is the caller graph for this function:

◆ fakePath()

int Conductor::fakePath ( )

inline

◆ fromXml()

bool Conductor::fromXml ( QDomElement & dom_element )

Conductor::fromXml Load the conductor and her information from xml element.

Parameters

dom_element

Returns: true is loading success else return false

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generateConductorPath()

void Conductor::generateConductorPath	(	const QPointF &	p1,
		Qet::Orientation	o1,
		const QPointF &	p2,
		Qet::Orientation	o2
	)

private

Calcule un trajet "par defaut" pour le conducteur

Parameters

p1	Coordonnees du point d'amarrage de la borne 1
o1	Orientation de la borne 1
p2	Coordonnees du point d'amarrage de la borne 2
o2	Orientation de la borne 2

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCoeff()

int Conductor::getCoeff	(	const qreal &	value1,
		const qreal &	value2
	)

staticprivate

Parameters

value1	Premiere valeur
value2	Deuxieme valeur

Returns: 1 si les deux valeurs sont de meme signe, -1 sinon

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSign()

int Conductor::getSign ( const qreal & value )

staticprivate

Parameters

value valeur

Returns: 1 si valeur est negatif, 1 s'il est positif ou nul

Here is the caller graph for this function:

◆ handlerMouseMoveEvent()

void Conductor::handlerMouseMoveEvent	(	QetGraphicsHandlerItem *	qghi,
		QGraphicsSceneMouseEvent *	event
	)

private

Conductor::handlerMouseMoveEvent.

Parameters

qghi
event

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handlerMousePressEvent()

void Conductor::handlerMousePressEvent	(	QetGraphicsHandlerItem *	qghi,
		QGraphicsSceneMouseEvent *	event
	)

private

Conductor::handlerMousePressEvent.

Parameters

qghi
event

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handlerMouseReleaseEvent()

void Conductor::handlerMouseReleaseEvent	(	QetGraphicsHandlerItem *	qghi,
		QGraphicsSceneMouseEvent *	event
	)

private

Conductor::handlerMouseReleaseEvent.

Parameters

qghi
event

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handlerPoints()

QVector< QPointF > Conductor::handlerPoints ( ) const

Conductor::handlerPoints.

Returns: The points used to draw the handler square, used to modify the path of the conductor. The points stored in the QVector are the middle point of each segments that compose the conductor, at exception of the first and last segment because there just here to extend the terminal.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ highlight()

Conductor::Highlight Conductor::highlight ( ) const

virtual

Returns: true si le conducteur est mis en evidence

◆ hoverEnterEvent()

void Conductor::hoverEnterEvent ( QGraphicsSceneHoverEvent * event )

overrideprotected

Conductor::hoverEnterEvent Manage the hover enter event.

Parameters

event

◆ hoverLeaveEvent()

void Conductor::hoverLeaveEvent ( QGraphicsSceneHoverEvent * event )

overrideprotected

Conductor::hoverLeaveEvent Manage the mouse leave event.

Parameters

event

◆ isValid()

bool Conductor::isValid ( ) const

Conductor::isValid.

Returns: true if conductor is valid else false; A non valid conductor, is a conductor without two terminal

Here is the caller graph for this function:

◆ itemChange()

QVariant Conductor::itemChange	(	GraphicsItemChange	change,
		const QVariant &	value
	)

overrideprotected

Conductor::itemChange.

Parameters

change
value

Returns

Here is the call graph for this function:

◆ junctions()

QList< QPointF > Conductor::junctions ( ) const

Returns: la liste des positions des jonctions avec d'autres conducteurs

Here is the call graph for this function:

Here is the caller graph for this function:

◆ length()

qreal Conductor::length ( ) const

Conductor::length.

Returns: the length of this conductor

Here is the call graph for this function:

Here is the caller graph for this function:

◆ middleSegment()

ConductorSegment * Conductor::middleSegment ( )

Returns: Le segment qui contient le point au milieu du conducteur

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mouseDoubleClickEvent()

void Conductor::mouseDoubleClickEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Conductor::mouseDoubleClickEvent Manage the mouse double click.

Parameters

event

Here is the call graph for this function:

◆ mousePressEvent()

void Conductor::mousePressEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Conductor::mousePressEvent Manage the mouse press event.

Parameters

event

◆ mouseReleaseEvent()

void Conductor::mouseReleaseEvent ( QGraphicsSceneMouseEvent * event )

overrideprotected

Conductor::mouseReleaseEvent.

Parameters

event

◆ movementType()

Qt::Corner Conductor::movementType	(	const QPointF &	start,
		const QPointF &	end
	)

staticprivate

Parameters

start	Point de depart
end	Point d'arrivee

Returns: le coin vers lequel se dirige le trajet de start vers end

Here is the caller graph for this function:

◆ movePointIntoPolygon()

QPointF Conductor::movePointIntoPolygon	(	const QPointF &	point,
		const QPainterPath &	polygon
	)

staticprivate

Conductor::movePointIntoPolygon.

Parameters

point	: A point located outside the polygon
polygon	: The polygon in which we want to move the point

Returns: the position of the point, once brought back into the polygon, or more exactly on the edge of the polygon

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nearShape()

QPainterPath Conductor::nearShape ( ) const

virtual

Conductor::nearShape.

Returns: : An area in which it is considered a point is near this conductor.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ paint()

void Conductor::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	options,
		QWidget *	qw
	)

override

Dessine le conducteur sans antialiasing.

Parameters

painter	Le QPainter a utiliser pour dessiner le conducteur
options	Les options de style pour le conducteur
qw	Le QWidget sur lequel on dessine

Here is the call graph for this function:

◆ path()

QPainterPath Conductor::path ( ) const

Here is the caller graph for this function:

◆ pathFromXml()

bool Conductor::pathFromXml ( const QDomElement & e )

private

Conductor::pathFromXml Generate the path (of the line) from xml file by checking the segments in the xml file.

Parameters

e

Returns: true if generate path success else return false

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pointsToSegments()

void Conductor::pointsToSegments ( const QList< QPointF > & points_list )

private

Regenere les segments de ce conducteur a partir de la liste de points passee en parametre

Parameters

points_list Liste de points a utiliser pour generer les segments

Here is the call graph for this function:

Here is the caller graph for this function:

◆ posForText()

QPointF Conductor::posForText ( Qt::Orientations & flag )

Conductor::posForText Calculate and return the better pos for text.

Parameters

flag	: flag is used to know if text pos is near of a vertical or horizontal conductor segment.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ profile()

ConductorProfile Conductor::profile ( Qt::Corner path_type ) const

Returns: le profil de ce conducteur

◆ profiles()

ConductorProfilesGroup Conductor::profiles ( ) const

Returns: les profils de ce conducteur

◆ properties()

ConductorProperties Conductor::properties ( ) const

Conductor::properties.

Returns: the properties of this Conductor

◆ propertiesChange

void Conductor::propertiesChange ( )

signal

Here is the caller graph for this function:

◆ refreshText()

void Conductor::refreshText ( )

Conductor::refreshText Refresh the text of this conductor. recalcule and set the text according to the formula.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ relatedPotentialConductors()

QSet< Conductor * > Conductor::relatedPotentialConductors	(	const bool	all_diagram = `true`,
		QList< Terminal * > *	t_list = `nullptr`
	)

Conductor::relatedPotentialConductors Return all conductors at the same potential of this conductor, this conductor isn't part of the returned QSet.

Parameters

all_diagram	: if true search in all diagram of the project, false search only in the parent diagram of this conductor
t_list	: a list of terminal already found for this potential.

Returns: a QSet of conductor at the same potential.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeHandler()

void Conductor::removeHandler ( )

private

Conductor::removeHandler Remove the handlers of this item.

Here is the caller graph for this function:

◆ rSequenceNum()

autonum::sequentialNumbers & Conductor::rSequenceNum ( )

inline

Here is the caller graph for this function:

◆ saveProfile()

void Conductor::saveProfile ( bool undo = true )

private

Sauvegarde le profil courant du conducteur pour l'utiliser ulterieurement dans priv_modifieConductor.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sceneEventFilter()

bool Conductor::sceneEventFilter	(	QGraphicsItem *	watched,
		QEvent *	event
	)

overrideprotected

Conductor::sceneEventFilter.

Parameters

watched
event

Returns

Here is the call graph for this function:

◆ segmentsCount()

uint Conductor::segmentsCount ( QET::ConductorSegmentType type = QET::Both ) const

private

Parameters

type	Type de Segments

Returns: Le nombre de segments composant le conducteur.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ segmentsList()

const QList< ConductorSegment * > Conductor::segmentsList ( ) const

Returns: les segments de ce conducteur

Here is the caller graph for this function:

◆ segmentsToPath()

void Conductor::segmentsToPath ( )

private

Conductor::segmentsToPath Generate the QPainterPath from the list of points.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ segmentsToPoints()

QList< QPointF > Conductor::segmentsToPoints ( ) const

private

Genere une liste de points a partir des segments de ce conducteur

Returns: La liste de points representant ce conducteur

Here is the caller graph for this function:

◆ sequenceNum()

autonum::sequentialNumbers Conductor::sequenceNum ( ) const

inline

◆ setFreezeLabel()

void Conductor::setFreezeLabel ( bool freeze )

Conductor::setFreezeLabel Freeze this conductor label if true Unfreeze this conductor label if false.

Parameters

freeze

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setHighlighted()

void Conductor::setHighlighted ( Conductor::Highlight hl )

virtual

Parameters

hl	true pour mettre le conducteur en evidence, false sinon

◆ setPath()

void Conductor::setPath ( const QPainterPath & path )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setProfile()

void Conductor::setProfile	(	const ConductorProfile &	cp,
		Qt::Corner	path_type
	)

Applique un nouveau profil a ce conducteur

Parameters

cp	Profil a appliquer a ce conducteur
path_type	Type de trajet pour lequel ce profil convient

Here is the call graph for this function:

◆ setProfiles()

void Conductor::setProfiles ( const ConductorProfilesGroup & cpg )

Conductor::setProfiles.

Parameters

cpg	: the new profils of conductor

Here is the call graph for this function:

◆ setProperties()

void Conductor::setProperties ( const ConductorProperties & property )

Conductor::setProperties Set property as current property of conductor.

Parameters

property : properties

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setPropertyToPotential()

void Conductor::setPropertyToPotential	(	const ConductorProperties &	property,
		bool	only_text = `false`
	)

Conductor::setPropertiesToPotential.

Parameters

property
only_text	Set property to conductor and every conductors in the same potential of conductor. If only_text is true only formula, text, function and tension/protocol is set to other conductor in the same potential, the other values of property stay unmodified

Here is the call graph for this function:

◆ setSequenceNum()

void Conductor::setSequenceNum ( const autonum::sequentialNumbers & sn )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setUpConnectionForFormula()

void Conductor::setUpConnectionForFormula	(	QString	old_formula,
		QString	new_formula
	)

private

Conductor::setUpConnectionForFormula setup connection according to the variable of formula.

Parameters

old_formula
new_formula

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shape()

QPainterPath Conductor::shape ( ) const

override

Conductor::shape.

Returns: the shape of conductor. The shape thickness is bigger when conductor is hovered

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shareOffsetBetweenSegments()

QHash< ConductorSegmentProfile *, qreal > Conductor::shareOffsetBetweenSegments	(	const qreal &	offset,
		const QList< ConductorSegmentProfile * > &	segments_list,
		const qreal &	precision = `0.01`
	)		const

private

Parameters

offset	Longueur a repartir entre les segments
segments_list	Segments sur lesquels il faut repartir la longueur
precision	seuil en-deca duquel on considere qu'il ne reste rien a repartir

Here is the call graph for this function:

Here is the caller graph for this function:

◆ textItem()

ConductorTextItem * Conductor::textItem ( ) const

4

Returns: le champ de texte associe a ce conducteur

Here is the caller graph for this function:

◆ toXml()

QDomElement Conductor::toXml	(	QDomDocument &	dom_document,
		QHash< Terminal *, int > &	table_adr_id
	)		const

Conductor::toXml Exporte les caracteristiques du conducteur sous forme d'une element XML.

Parameters

dom_document	: Le document XML a utiliser pour creer l'element XML
table_adr_id	: Hash stockant les correspondances entre les ids des bornes dans le document XML et leur adresse en memoire

Returns: Un element XML representant le conducteur

Here is the call graph for this function:

Here is the caller graph for this function:

◆ type()

int Conductor::type ( ) const

inlineoverride

type Enable the use of qgraphicsitem_cast to safely cast a QGraphicsItem into a conductor.

Returns: the QGraphicsItem type

Here is the caller graph for this function:

◆ updateConductorPath()

void Conductor::updateConductorPath	(	const QPointF &	p1,
		Qet::Orientation	o1,
		const QPointF &	p2,
		Qet::Orientation	o2
	)

private

Gere les updates

Parameters

p1	Coordonnees du point d'amarrage de la borne 1
o1	Orientation de la borne 1
p2	Coordonnees du point d'amarrage de la borne 2
o2	Orientation de la borne 2

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updatePath()

void Conductor::updatePath ( const QRectF & rect = QRectF() )

Met a jour la representation graphique du conducteur en recalculant son trace. Cette fonction est typiquement appelee lorsqu'une seule des bornes du conducteur a change de position.

Parameters

rect	Rectangle a mettre a jour

See also: QGraphicsPathItem::update()

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updatePathAnimate()

void Conductor::updatePathAnimate ( const int = 1 )

inline

Here is the call graph for this function:

◆ valideXml()

bool Conductor::valideXml ( QDomElement & e )

static

Methode de validation d'element XML

Parameters

e	Un element XML sense represente un Conducteur

Returns: true si l'element XML represente bien un Conducteur ; false sinon

Here is the caller graph for this function:

Member Data Documentation

◆ before_mov_text_pos_

QPointF Conductor::before_mov_text_pos_

private

◆ conductor_brush

QBrush Conductor::conductor_brush = QBrush()

staticprivate

◆ conductor_pen

QPen Conductor::conductor_pen = QPen()

staticprivate

QPen et QBrush objects used to draw conductors.

◆ conductor_profiles

ConductorProfilesGroup Conductor::conductor_profiles

private

conductor profile: "photography" of what the conductor is supposed to look like - there is one profile per kind of traject

◆ has_to_save_profile

bool Conductor::has_to_save_profile

private

Whether the current profile should be saved as soon as possible.

◆ m_autoNum_seq

autonum::sequentialNumbers Conductor::m_autoNum_seq

private

◆ m_freeze_label

bool Conductor::m_freeze_label = false

private

◆ m_handler_vector

QVector<QetGraphicsHandlerItem *> Conductor::m_handler_vector

private

◆ m_mouse_over

bool Conductor::m_mouse_over

private

◆ m_moved_segment

ConductorSegment* Conductor::m_moved_segment

private

◆ m_moving_segment

bool Conductor::m_moving_segment

private

Attributes related to mouse interaction.

◆ m_path

QPainterPath Conductor::m_path

private

◆ m_previous_z_value

qreal Conductor::m_previous_z_value

private

◆ m_properties

ConductorProperties Conductor::m_properties

private

Functional properties.

◆ m_text_item

ConductorTextItem* Conductor::m_text_item

private

Text input for non simple, non-singleline conductors.

◆ m_valid

bool Conductor::m_valid

private

◆ m_vector_index

int Conductor::m_vector_index = -1

private

◆ modified_path

bool Conductor::modified_path

private

Whether the conductor was manually modified by users.

◆ moved_point

int Conductor::moved_point

private

◆ must_highlight_

Highlight Conductor::must_highlight_

private

Define whether and how the conductor should be highlighted.

◆ pen_and_brush_initialized

bool Conductor::pen_and_brush_initialized = false

staticprivate

◆ segments

ConductorSegment* Conductor::segments

private

Segments composing the conductor.

◆ terminal1

Terminal* Conductor::terminal1

◆ terminal2

Terminal* Conductor::terminal2

Property Documentation

◆ animPath

int Conductor::animPath

readwrite

◆ pos

QPointF Conductor::pos

readwrite

◆ properties

ConductorProperties Conductor::properties

readwrite

◆ sequenceNum

autonum::sequentialNumbers Conductor::sequenceNum

readwrite

The documentation for this class was generated from the following files:

sources/qetgraphicsitem/conductor.h
sources/qetgraphicsitem/conductor.cpp

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Properties

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ Highlight

Constructor & Destructor Documentation

◆ Conductor() [1/2]

◆ ~Conductor()

◆ Conductor() [2/2]

Member Function Documentation

◆ addHandler()

◆ adjusteHandlerPos()

◆ bends()

◆ boundingRect()

◆ calculateTextItemPosition()

◆ currentPathType()

◆ deleteSegments()

◆ diagram()

◆ diagramEditor()

◆ displayedTextChanged

◆ editProperty()

◆ extendTerminal()

◆ fakePath()

◆ fromXml()

◆ generateConductorPath()

◆ getCoeff()

◆ getSign()

◆ handlerMouseMoveEvent()

◆ handlerMousePressEvent()

◆ handlerMouseReleaseEvent()

◆ handlerPoints()

◆ highlight()

◆ hoverEnterEvent()

◆ hoverLeaveEvent()

◆ isValid()

◆ itemChange()

◆ junctions()

◆ length()

◆ middleSegment()

◆ mouseDoubleClickEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ movementType()

◆ movePointIntoPolygon()

◆ nearShape()

◆ paint()

◆ path()

◆ pathFromXml()

◆ pointsToSegments()

◆ posForText()

◆ profile()

◆ profiles()

◆ properties()

◆ propertiesChange

◆ refreshText()

◆ relatedPotentialConductors()

◆ removeHandler()

◆ rSequenceNum()

◆ saveProfile()

◆ sceneEventFilter()

◆ segmentsCount()

◆ segmentsList()

◆ segmentsToPath()

◆ segmentsToPoints()

◆ sequenceNum()

◆ setFreezeLabel()

◆ setHighlighted()

◆ setPath()

◆ setProfile()
